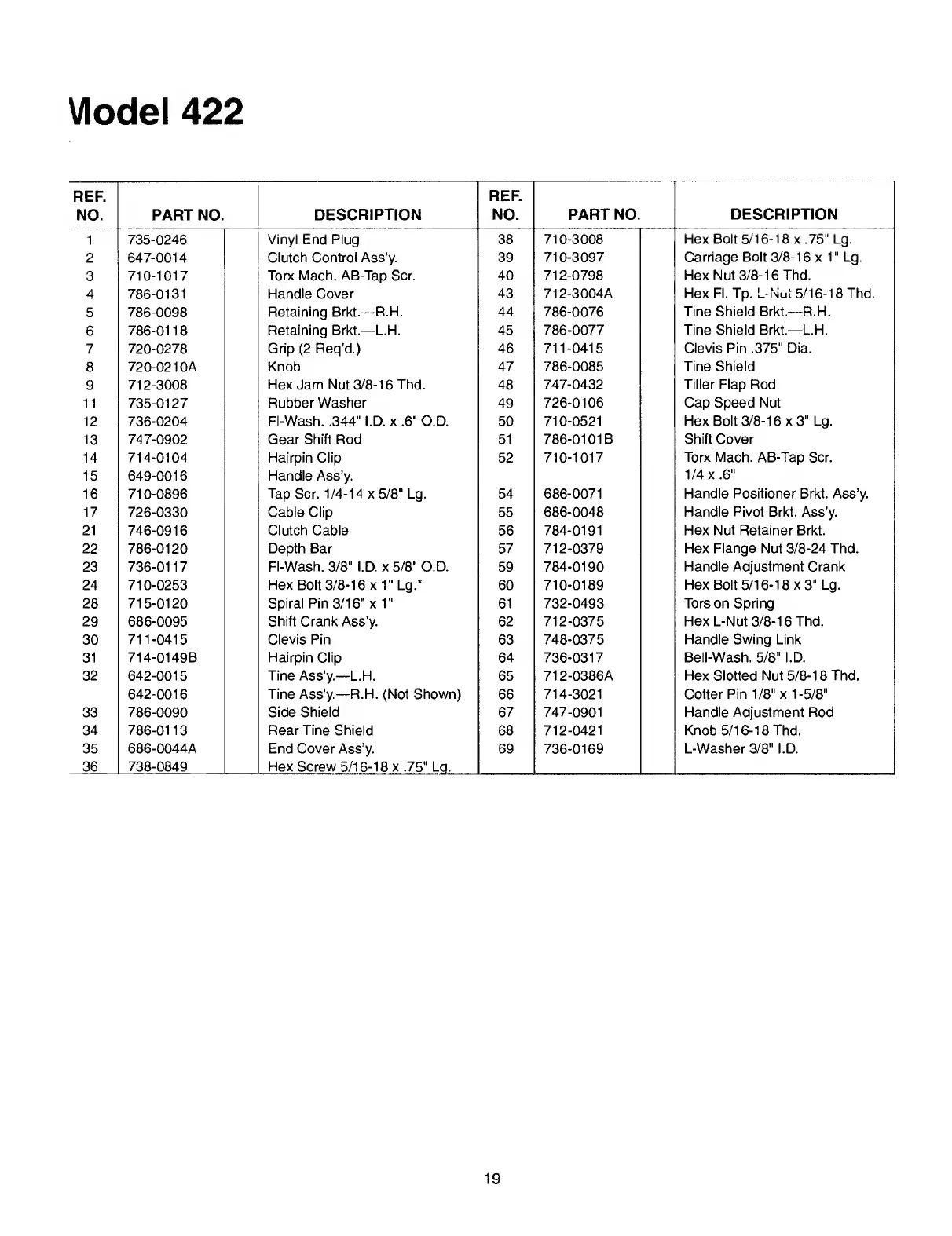

VIodel 422
REF.
NO.
PART NO.
DESCRIPTION
REF.
NO.
PART NO.
DESCRIPTION
1 735-0246 Vinyl End Plug
38 710-3008 Hex Bolt 5/16-18 x.75" Lg.
2 647-0014
Clutch Control Ass’y. 39
710-3097 Carriage Bolt 3/8-16 x 1 ’’ Lg.
3
710-1017
Torx Mach. AB-Tap Scr. 40 712-0798
Hex Nut 3/8-16 Thd.
4 786-0131 Handle Cover
43 712-3004A Hex FI. Tp. L-Nut 5/16-18 Thd.
5 786-0098
Retaining Brkt.—R.H.
44
786-0076
Tine Shield Brkt.—R.H.
6 786-0118
Retaining Brkt.—L.H. 45
786-0077
Tine Shield Brkt.—L.H.
7
720-0278
Grip (2 Req’d.)
46 711-0415 Clevis Pin .375" Dia.
8
720-0210A Knob
47 786-0085 Tine Shield
9
712-3008 Hex Jam Nut 3/8-16 Thd. 48
747-0432 Tiller Flap Rod
11 735-0127
Rubber Washer
49
726-0106 Cap Speed Nut
12 736-0204 FI-Wash. .344" I.D. x .6" O.D. 50 710-0521
Hex Bolt 3/8-16 x 3" Lg.
13
747-0902 Gear Shift Rod 51
786-0101B
Shift Cover
14 714-0104 Hairpin Clip 52 710-1017
Torx Mach. AB-Tap Scr.
15 649-0016 Handle Ass’y.
1/4 X .6"
16 710-0896
Tap Scr. 1/4-14 x 5/8" Lg. 54 686-0071 Handle Positioner Brkt. Ass’y.
17
726-0330
Cable Clip 55 686-0048 Handle Pivot Brkt. Ass’y.
21 746-0916
Clutch Cable
56 784-0191
Hex Nut Retainer Brkt.
22
786-0120 Depth Bar
57 712-0379
Hex Flange Nut 3/8-24 Thd.
23 736-0117 FI-Wash. 3/8" I.D. x 5/8" O.D. 59
784-0190 Handle Adjustment Crank
24 710-0253 Hex Bolt 3/8-16 x1“Lg.* 60 710-0189 Hex Bolt 5/16-18x3" Lg.
28 715-0120 Spiral Pin 3/16" x 1" 61 732-0493
Torsion Spring
29 686-0095
Shift Crank Ass’y. 62
712-0375
Hex L-Nut 3/8-16 Thd.
30 711-0415 Clevis Pin 63 748-0375
Handle Swing Link
31
714-0149B Hairpin Clip 64 736-0317 Bell-Wash. 5/8" I.D.
32
642-0015 Tine Ass’y.—L.H. 65
712-0386A
Hex Slotted Nut 5/8-18 Thd.
642-0016 Tine Ass’y.—R.H. (Not Shown) 66 714-3021
Cotter Pin 1/8" x 1-5/8"
33 786-0090 Side Shield
67
747-0901 Handle Adjustment Rod
34
786-0113 Rear Tine Shield 68 712-0421 Knob 5/16-18 Thd.
35 686-0044A End Cover Ass’y. 69
736-0169
L-Washer 3/8" I.D.
36 738-0849 Hex Screw 5/16-18 x .75" Lg.
19
