Blade Control
The blade control is attached to the upper handle of the mower.
Depress and squeeze it against the upper handle to operate the
unit. Release it to stop engine and blade.
WARNING: This blade control is a safety device.
Never attempt to bypass its operations.
Cutting Height Adjustment Lever
One adjustment lever is located on each wheel and is used to
adjust the cutting height. All four levers have to be at the same
relative position to ensure a uniform cut. To adjust the cutting
height, refer to the “Assembly & Set-Up” Section.

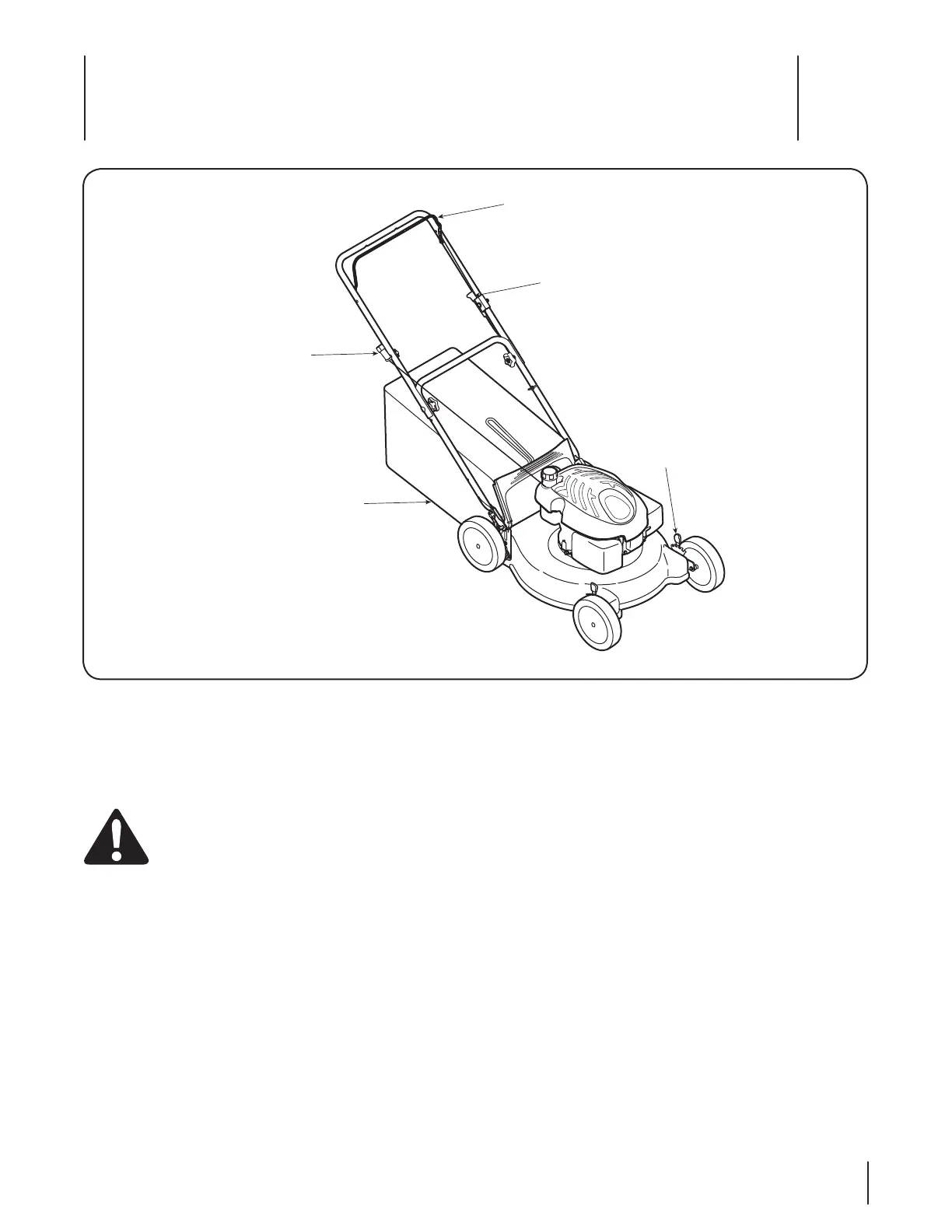

Figure 4-1
Blade Control
Recoil Starter
Cutting Height
Adjustment
Lever (one at
each wheel)
Grass Catcher
Choke Control
Recoil Starter
The recoil starter is attached to the right upper handle. Stand
behind the unit and pull the recoil starter rope to start the unit.
Choke Control
The choke control is located on the left side of the handle and
when activated, closes the choke plate on the carburetor and
aids in starting the engine. Pull the choke control to activate the
choke on the engine. Use of the choke may not be necessary if
the engine is warm or the air temperature is high.
Grass Catcher
The grass catcher, located at the rear of the mower, is used to bag
the grass clippings for disposal at another site. Once the bag is
full, it has to be removed from the mower and emptied before
any further mowing.
