Assembly & Set-Up
3
8
Contents of Carton
One Lawn Mower• One Lawn Mower Operator’s Manual• One Bottle of Oil•
One Grass Catcher• One Hardware Pack•
Assembly
NOTE: This unit is shipped without gasoline or oil in the engine.
Fill up gasoline and oil as instructed in the accompanying engine
manual BEFORE operating your mower.
Handle
Remove any packing material which may be between
upper and lower handles.

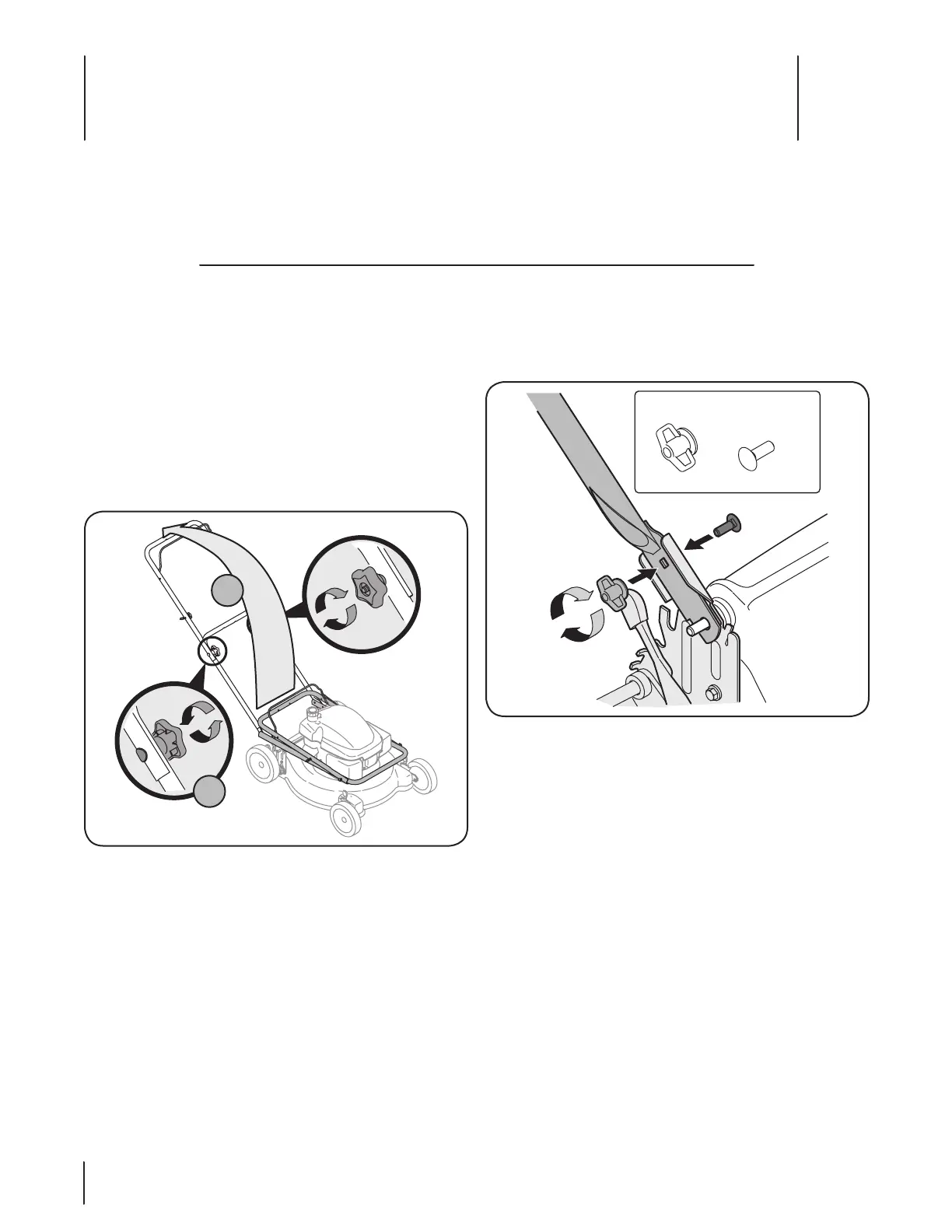

Pull up and back on upper handle as shown in Fig.
3-1. Make certain the lower handle is seated securely
into the handle mounting brackets. Do not crimp
cable while lifting the handle up.
Tighten star knobs to secure upper handle to lower
handle. Make sure that each carriage bolt is seated
properly in the handle.
1.
a.
b.
Figure 3-1
Insert a carriage bolt from the hardware pack into the
upper hole on the handle mounting bracket. Secure with
one plastic wing nut, also included in the hardware pack.
See Fig. 3-2. Repeat on other side with remaining items
from hardware pack.
2.
Hardware Pack
Wing Nuts (2)
Carriage Bolts (2)
Figure 3-2
To Next Page
