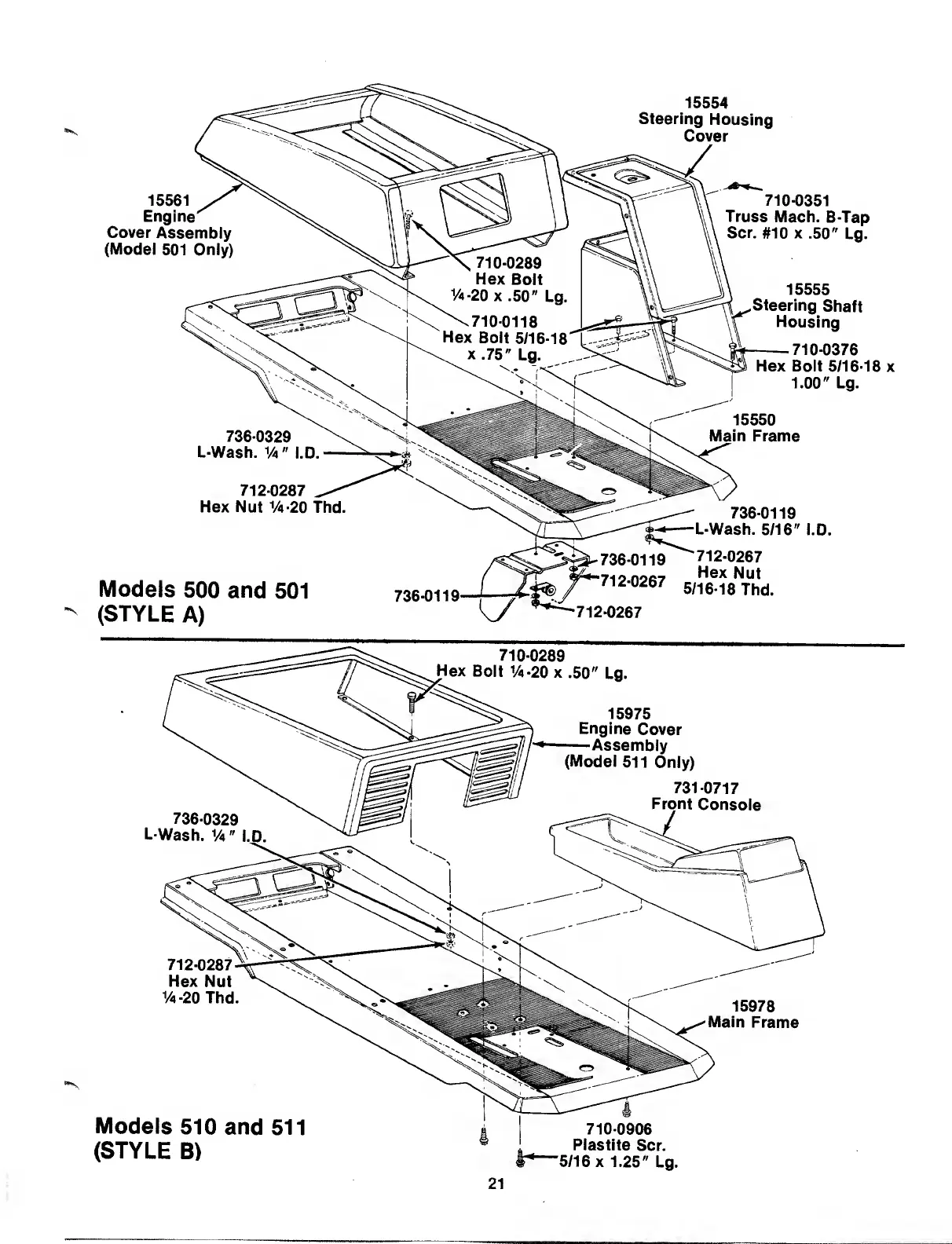

MTD 500 - Page 21

steering Housing
Cover
15561
Engine''^
Cover Assembiy
(Model 501 Only)
736-0329 \
L-Wash. V4" I.D.—
712-0287 ^
Hex Nut V 4 - 2 O Thd.
Models 500 and 501
(STYLE A)
710-0289
Hex Bolt
V 4 - 2 O X .50" Lg.
710-0118
Hex Bolt 5/16-18'
X .75" Lg.
710-0351
Truss Mach. B-Tap
Scr. #10 X .50" Lg.
15555
Steering Shaft
Housing
-.710-0376
Hex Bolt 5/16-18 x
1.00" Lg.
15550
Main Frame
736-0119
■ L -Wash. 5/16" I.D.
736-0119-
■ ml
^736-0119 712-0267
’^ 712-0267 5,|;'?8'V“hd.
712-0267
710-0289
Hex Bolt Va-20 x .50" Lg.
736-0329
L-Wash. V4 " I.D.
712-0287-
Hex Nut
V4-20 Thd.
Models 510 and 511
(STYLE B)
15975
Engine Cover
-Assembly
(Model 511 Only)
731-0717
Front Console
15978
'Main Frame
710-0906
' Plastite Scr.
r* —5/16 X 1.25" Lg
