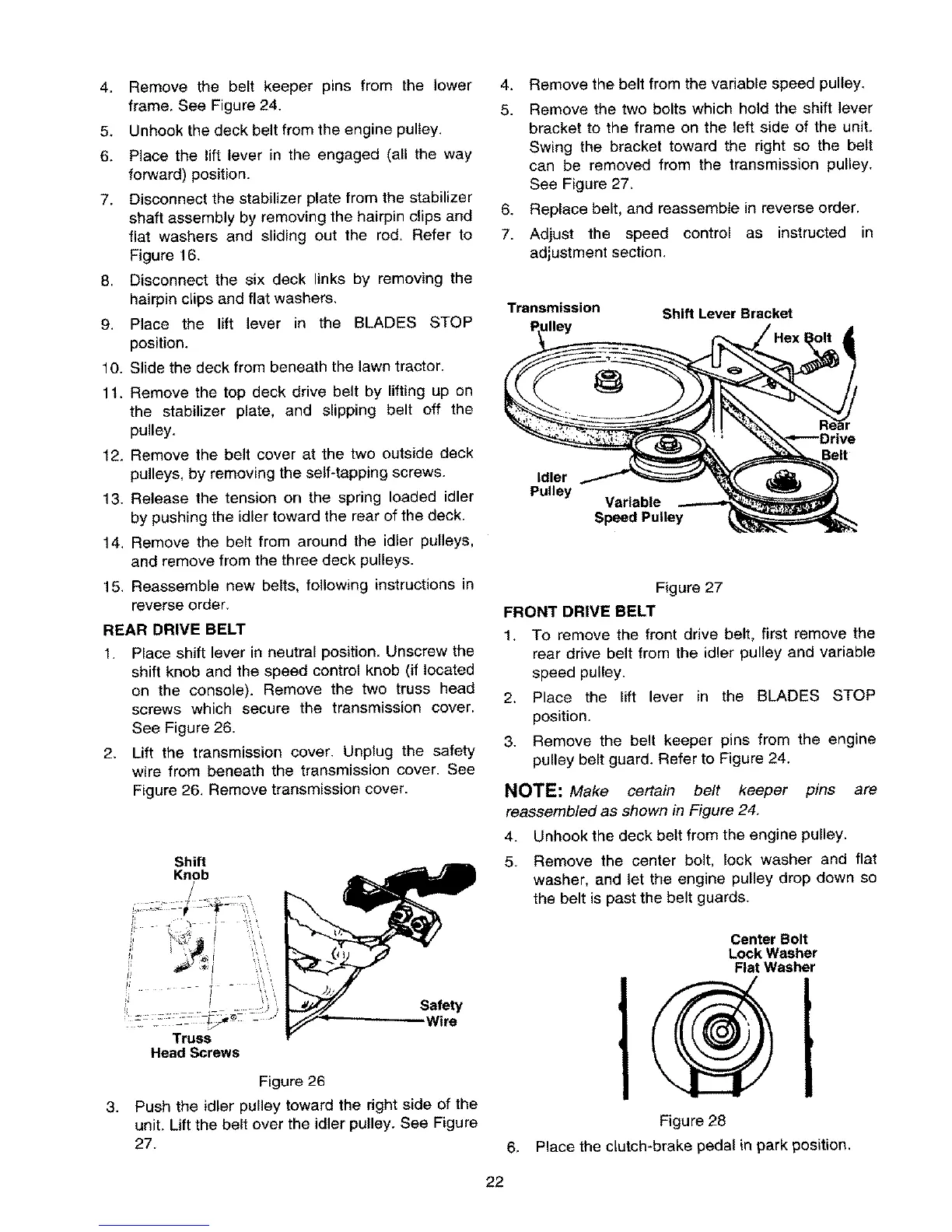

4. Removethe belt keeperpinsfromthe lower
frame,SeeFigure24.
5. Unhookthedeckbeltfromtheenginepulley.
6. Placethe lift lever in the engaged (all the way
forward) position.
7. Disconnect the stabilizer plate from the stabilizer
shaft assembly by removing the hairpin clips and
flat washers and sliding out the rod. Refer to
Figure 16.
8. Disconnect the six deck links by removing the
hairpin clips and flat washers,
9. Place the lift lever in the BLADES STOP
position.
10. Slide the deck from beneath the lawn tractor.
1t. Remove the top deck drive belt by lifting up on
the stabilizer plate, and slipping belt off the
pulley.
12. Remove the belt cover at the two outside deck
pulleys, by removing the self-tapping screws.
13. Release the tension on the spring loaded idler
by pushing the idler toward the rear of the deck.
14. Remove the belt from around the idler pulleys,
and remove from the three deck pulleys.
15. Reassemble new belts, following instructions in
reverse order.
REAR DRIVE BELT
1. Place shift lever in neutral position, Unscrew the
shift knob and the speed control knob (if located
on the console). Remove the two truss head
screws which secure the transmission cover,
See Figure 26.
2. Lift the transmission cover. Unplug the safety
wire from beneath the transmission cover. See
Figure 26. Remove transmission cover.
3.
Shift
Knob
i, i"_:_ i
Truss
Head Screws
Safety
Wire
Figure 26
Push the idler pulley toward the dght side of the
unit. Lift the belt over the idler pulley. See Figure
27.
4. Remove the belt from the variable speed pulley.
5. Remove the two bolts which hold the shift lever
bracket to the frame on the left side of the unit.
Swing the bracket toward the right so the belt
can be removed from the transmission pulley.
See Figure 27.
6. Replace belt, and reassemble in reverse order.
7. Adjust the speed control as instructed in
adjustment section,
Transmission
dley
Shift Lever Bracket
Idler
Pulley
Variable
Speed Pulley
Belt
Figure 27
FRONT DRIVE BELT
1. To remove the front drive belt, first remove the
rear drive belt from the idler pulley and variable
speed pulley.
2. Place the lift lever in the BLADES STOP
position.
3. Remove the belt keeper pins from the engine
pulley belt guard. Refer to Figure 24.
NOTE: Make certain belt keeper pins are
reassembled as shown in Figure 24.
4. Unhook the deck belt from the engine pulley.
5. Remove the center bolt, lock washer and flat
washer, and let the engine pulley drop down so
the belt is past the belt guards.
Center Bolt
Lock Washer
Flat Washer
Figure 28
6, Place the clutch-brake pedal in park position.
22
