Inner Hole
Hairpin Clip
Lower Handle
%
Outer Hole
Mounting
Bracket
Figure 4
WARNING: Never operate the mower without the
proper trail shield, mulch plug, side discharge
deflector, motor/blade control or other safety
protective devices in place and working. Never
operate the mower with damaged safety devices.
Failure to do so can result in personal injury.
AttachingTheSideDischargeDeflector
To convert your mower from a mulcher to a side
discharge mower:
Lift the mulching plug.
Slide the two hooks on the side discharge deflector
under the hinge pin on the mulching plug assembly
as shown in Figure 5.
Lower the mulching plug. Do not remove the
mulching plug at any time, even when you are not
mulching.
Plug
de
Hook
sides of hinge pin)
Figure 5

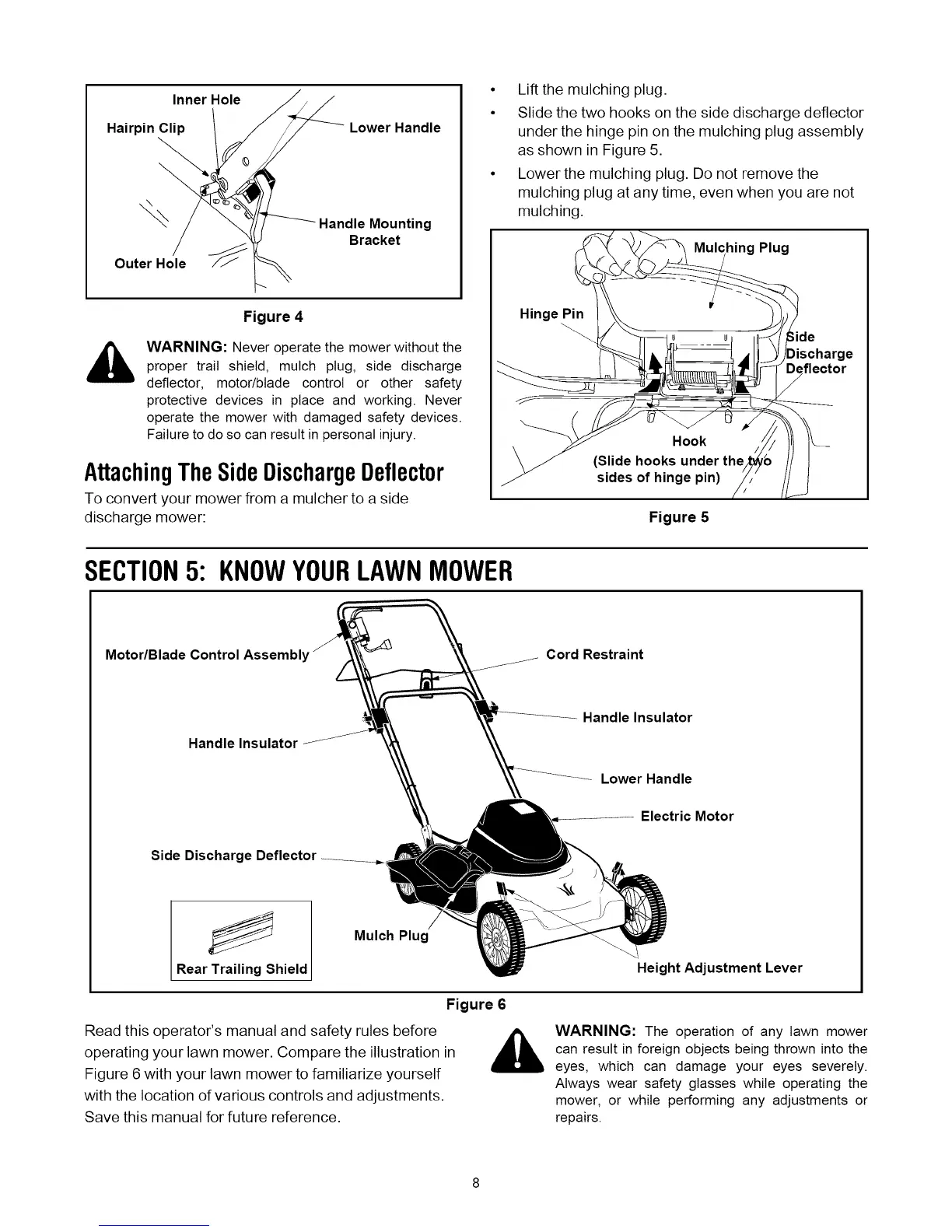

SECTION5: KNOWYOURLAWNMOWER
Motor/Blade Control Assembly j Cord Restraint
Handle Insulator
Handle Insulator
Lower Handle
Electric Motor
Side Discharge Deflector
S
Rear Trailing Shield
Mulch Plug
Height Adjustment Lever
Figure 6
Read this operator's manual and safety rules before
operating your lawn mower. Compare the illustration in
Figure 6 with your lawn mower to familiarize yourself
with the location of various controls and adjustments.
Save this manual for future reference.
WARNING: The operation of any lawn mower
can result in foreign objects being thrown into the
eyes, which can damage your eyes severely.
Always wear safety glasses while operating the
mower, or while performing any adjustments or
repairs.
