brakeis inneedof adjustment.Thebrakedisccan be
foundon therightsideof the transmissioninthe rearof
thetractor.Adjustif necessaryasfollows:
1. Lookingat thetransmissionfromthe rightsideofthe
tractor,locatethecompressionspringand brakedisc•
SeeFigure16.
2. Loosen,but do NOTremove,the hexnutfoundon the
rightsideof thebrakeassembly•SeeFigure16.
3. Usinga feelergauge,setthe gapbetweenthebrake
discandthebrakepuckat .011".
4. Re-tightenthe hexnut loosenedearlier•
Seat Adjustment
_1= ARNING: Before operating this
machine,make surethe seat is
engaged in the seat stop, stand
behind the machine and pull back
on seat until fully engaged into
stop.
Standard Seat
Toadjustthe positionof the seat,loosenthe two hex
screwson the bottomoftheseat.Slidethe seatforward
or backwardasdesired.Retightenthe twoscrews.See
Figure17.
Knob Adjustment Seat (ifso equipped)
Toadjustthe positionof the seaton modelssoequipped,
loosenthe twoknobsonthe bottomoftheseat.See
Figure18. Slidethe seatforwardor backwardas desired.
Retightenthe twoknobs.
Quick Adjust Seat (if so equipped)
Toadjustthe positionof the seaton modelsequipped
witha seatadjustmentlever,movetheseatadjustment
lever(locatedundertheseat)totheleftand slidetheseat
forwardor rearward.SeeFigure19.Makesureseatis
lockedintopositionbeforeoperatingthe tractor•
Set gap .011"

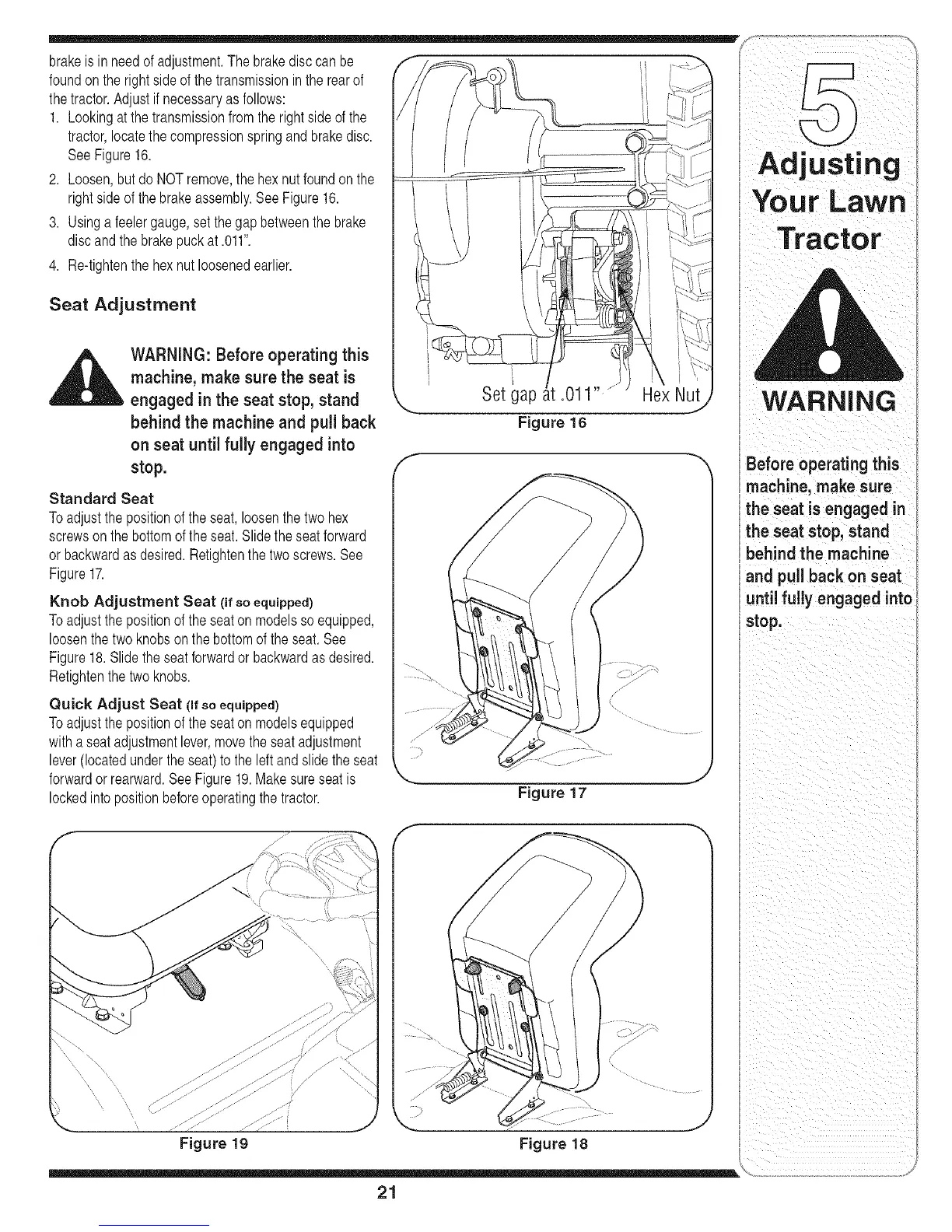

Figure 16
Hex Nut
f
Figure 17
,,J
WARNING
Before operatingthis
machine, make sure
the seat is engaged in
the seat stop, stand
behindthe machine
and pull back on seat
until fully engaged into
stop.
Figure 19 Figure 18
