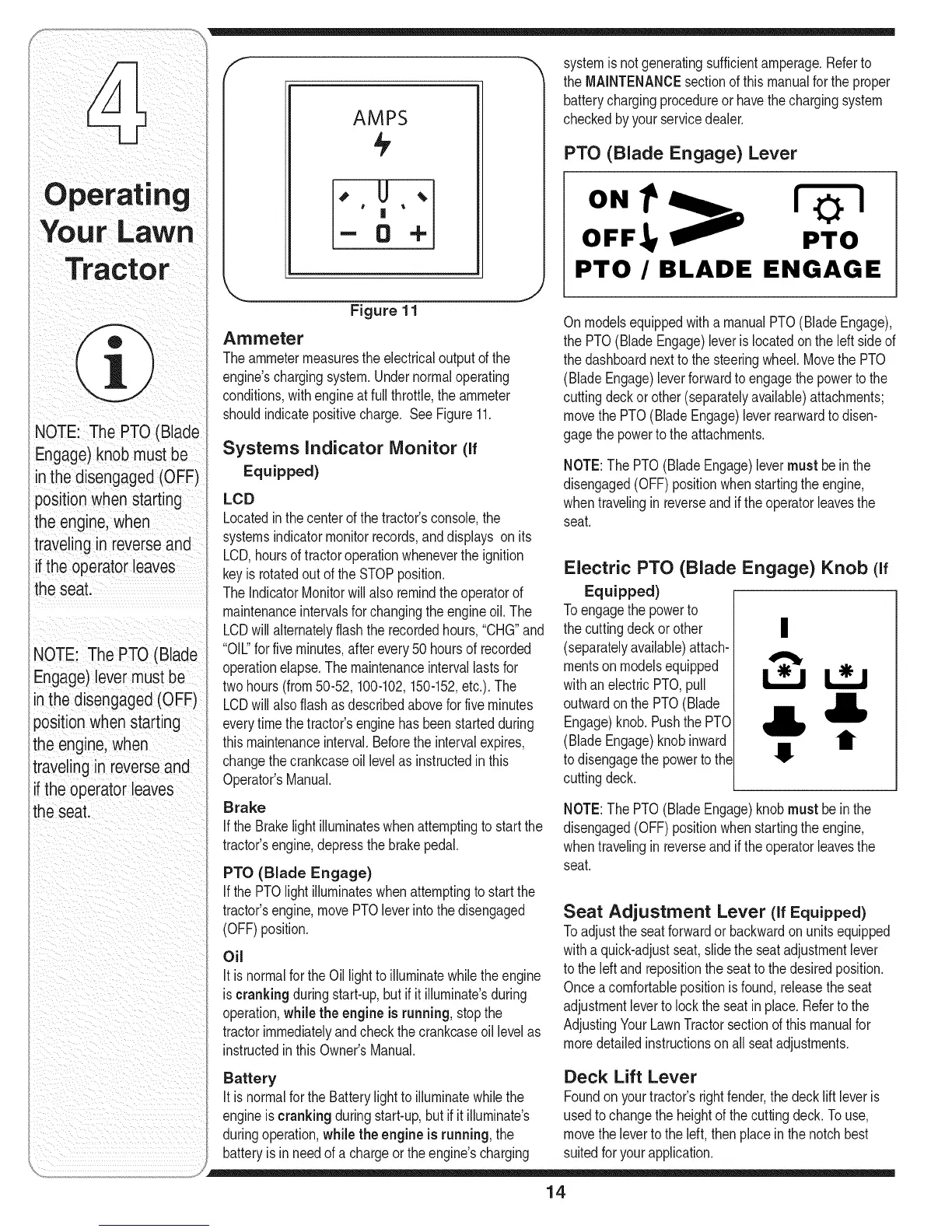

MTD 769-01645A - Page 14

TractOr
NOTE: The PTO(Blade
Engage)knob must be
inthe disengaged (OFF)
positionwhen starting
the engine,when
travelingin reverseand
ifthe operator leaves
the seat.
NOTE: The PTO (Blade
Engage) levermust be
n the disengaged (OFF)
positionwhen starting
the engine,when
traveling _nreverseand
if the operator leaves
the seat.
AMPS
systemis not generatingsufficientamperage.Referto
theMAINTENANCEsectionof this manualfortheproper
batterychargingprocedureor havethechargingsystem
checkedby yourservicedealer.
PTO (Blade Engage) Lever
ON 1z !
PTO
PTO /BLADE ENGAGE
Figure 11
Ammeter
Theammetermeasuresthe electricaloutputof the
engine'schargingsystem.Undernormaloperating
conditions,withengineatfullthrottle,theammeter
shouldindicatepositivecharge. SeeFigure11.
Systems Indicator Monitor (if
Equipped)
LCD
Locatedinthecenterofthetractor'sconsole,the
systemsindicatormonitorrecords,anddisplays on its
LCD,hoursof tractoroperationwheneverthe ignition
keyisrotatedoutoftheSTOPposition.
TheIndicatorMonitorwill also remindthe operatorof
maintenanceintervalsfor changingthe engineoil. The
LCDwillalternatelyflashthe recordedhours,"CHG"and
"OIL"for fiveminutes,afterevery50 hoursof recorded
operationelapse.The maintenanceintervallastsfor
twohours(from50-52,100-102,150-152,etc.).The
LCDwillalsoflashasdescribedabovefor fiveminutes
everytimethetractor'senginehasbeenstartedduring
thismaintenanceinterval.Beforethe intervalexpires,
changethe crankcaseoil levelas instructedin this
Operator'sManual.
Onmodelsequippedwitha manualPTO(BladeEngage),
thePTO(BladeEngage)leveris locatedontheleft sideof
thedashboardnextto the steeringwheel.Movethe PTO
(BladeEngage)leverforwardtoengagethepowerto the
cuttingdeckor other(separatelyavailable)attachments;
movethePTO(BladeEngage)leverrearwardto disen-
gagethepowerto the attachments.
NOTE:ThePTO(BladeEngage)levermust beinthe
disengaged(OFF)positionwhenstartingtheengine,
whentravelingin reverseand iftheoperatorleavesthe
seat.
Electric PTO (Blade Engage) Knob (if
Equipped)
Toengagethepowerto
thecuttingdeckor other |
(separatelyavailable)attach-
mentson modelsequipped L_
withanelectricPTO,pull
outwardonthePTO(Blade
Engage)knob.PushthePTO
(BladeEngage)knobinward
todisengagethe powertothe
cuttingdeck.
t
I
Brake
If the Brakelight illuminateswhenattemptingtostartthe
tractor'sengine,depressthebrakepedal.
PTO (Blade Engage)
if thePTOlightilluminateswhenattemptingto start the
tractor'sengine,movePTOleverintothedisengaged
(OFF)position.
Oil
It isnormalfortheOil lightto illuminatewhilethe engine
iscranking duringstart-up,but ifit illuminate'sduring
operation,while the engine is running,stopthe
tractorimmediatelyandcheckthe crankcaseoillevelas
instructedinthisOwner'sManual.
NOTE:ThePTO(BladeEngage)knobmustbein the
disengaged(OFF)positionwhenstartingtheengine,
whentravelingin reverseand iftheoperatorleavesthe
seat.
Seat Adjustment Lever (If Equipped)
Toadjusttheseatforwardorbackwardon unitsequipped
witha quick-adjustseat,slidethe seatadjustmentlever
totheleftand repositionthe seatto the desiredposition.
Oncea comfortablepositionis found,releasethe seat
adjustmentleverto lockthe seatinplace.Refertothe
AdjustingYourLawnTractorsectiond this manualfor
moredetailedinstructionson all seatadjustments.
Battery Deck Lift Lever
It isnormalfortheBatterylightto illuminatewhilethe Foundon yourtractor'srightfender,the decklift leveris
engineiscrankingduringstart-up,but ifit illuminate's usedto changethe heightof the cuttingdeck.Touse,
duringoperation,while the engine is running, the movethelevertotheleft,then placeinthe notchbest
batteryisinneedofa chargeorthe engine'scharging suitedfor yourapplication.
