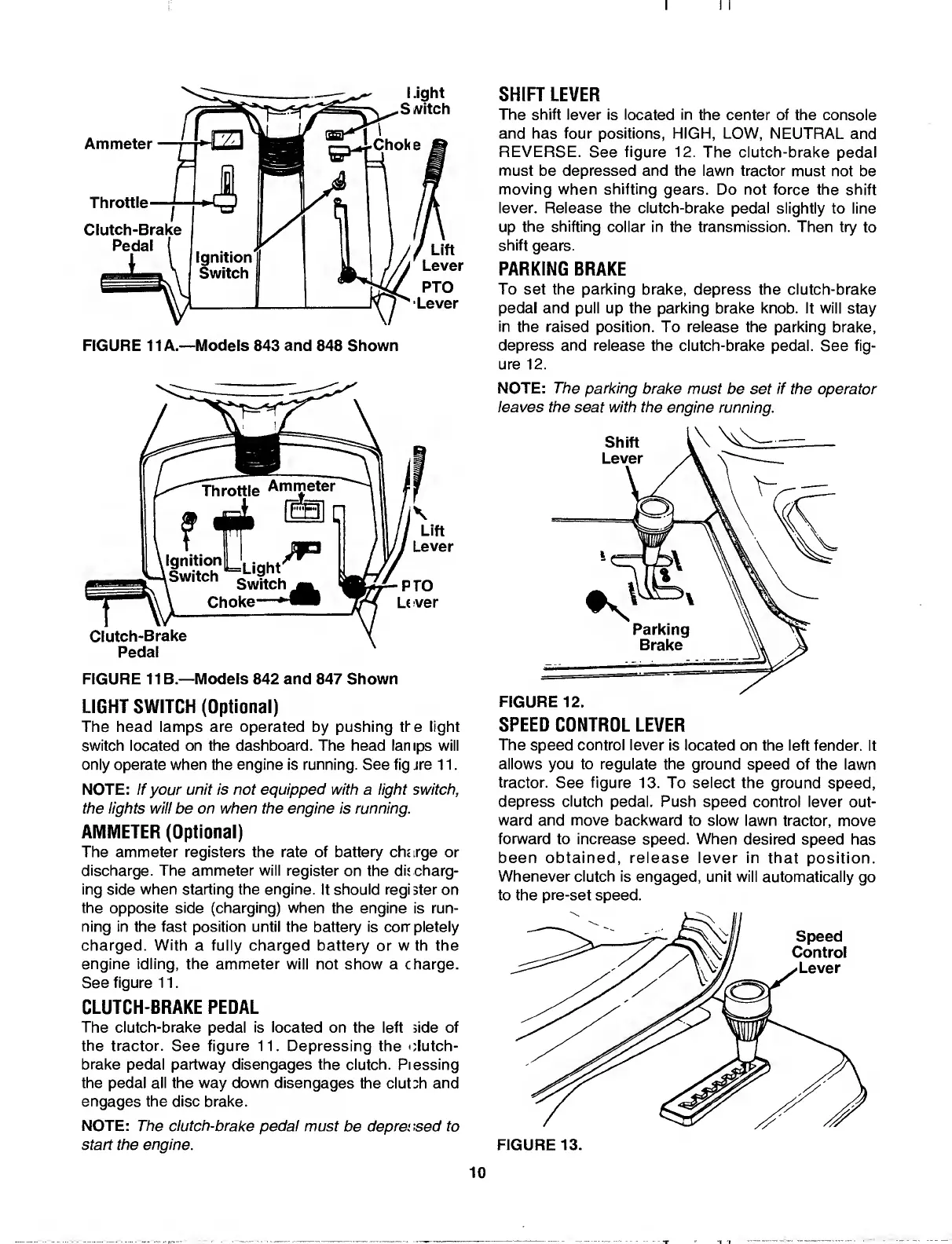

I
FIGURE
11
A.—Models
843
and
848
Shown
FIGURE
11B.—Models
842
and
847
Shown
LIGHT
SWITCH
(Optional)
The
head
lamps
are
operated
by
pushing
the
light
switch
located
on
the
dashboard.
The
head
lamps
will
only
operate
when
the
engine
is
running.
See
fig
jre
11.
NOTE:
If
your
unit
is
not
equipped
with
a
light
switch,
the
lights
will
be
on
when
the
engine
is
running.
AMMETER
(Optional)
The
ammeter
registers
the
rate
of
battery
charge
or
discharge.
The
ammeter
will
register
on
the
dis
charg¬
ing
side
when
starting
the
engine.
It
should
register
on
the
opposite
side
(charging)
when
the
engine
is
run¬
ning
in
the
fast
position
until
the
battery
is
corr
pletely
charged.
With
a
fully
charged
battery
or
w
th
the
engine
idling,
the
ammeter
will
not
show
a
charge.
See
figure
11.
CLUTCH-BRAKE
PEDAL
The
clutch-brake
pedal
is
located
on
the
left
side
of
the
tractor.
See
figure
11.
Depressing
the
dutch-
brake
pedal
partway
disengages
the
clutch.
Piessing
the
pedal
all
the
way
down
disengages
the
clutsh
and
engages
the
disc
brake.
NOTE:
The
clutch-brake
pedal
must
be
depressed
to
start
the
engine.
SHIFT
LEVER
The
shift
lever
is
located
in
the
center
of
the
console
and
has
four
positions,
HIGH,
LOW,
NEUTRAL
and
REVERSE.
See
figure
12.
The
clutch-brake
pedal
must
be
depressed
and
the
lawn
tractor
must
not
be
moving
when
shifting
gears.
Do
not
force
the
shift
lever.
Release
the
clutch-brake
pedal
slightly
to
line
up
the
shifting
collar
in
the
transmission.
Then
try
to
shift
gears.
PARKING
BRAKE
To
set
the
parking
brake,
depress
the
clutch-brake
pedal
and
pull
up
the
parking
brake
knob.
It
will
stay
in
the
raised
position.
To
release
the
parking
brake,
depress
and
release
the
clutch-brake
pedal.
See
fig¬
ure
12.
NOTE:
The
parking
brake
must
be
set
if
the
operator
leaves
the
seat
with
the
engine
running.
SPEED
CONTROL
LEVER
The
speed
control
lever
is
located
on
the
left
fender.
It
allows
you
to
regulate
the
ground
speed
of
the
lawn
tractor.
See
figure
13.
To
select
the
ground
speed,
depress
clutch
pedal.
Push
speed
control
lever
out¬
ward
and
move
backward
to
slow
lawn
tractor,
move
forward
to
increase
speed.
When
desired
speed
has
been
obtained,
release
lever
in
that
position.
Whenever
clutch
is
engaged,
unit
will
automatically
go
to
the
pre-set
speed.
10
