CONTENTS OF HARDWARE PACK

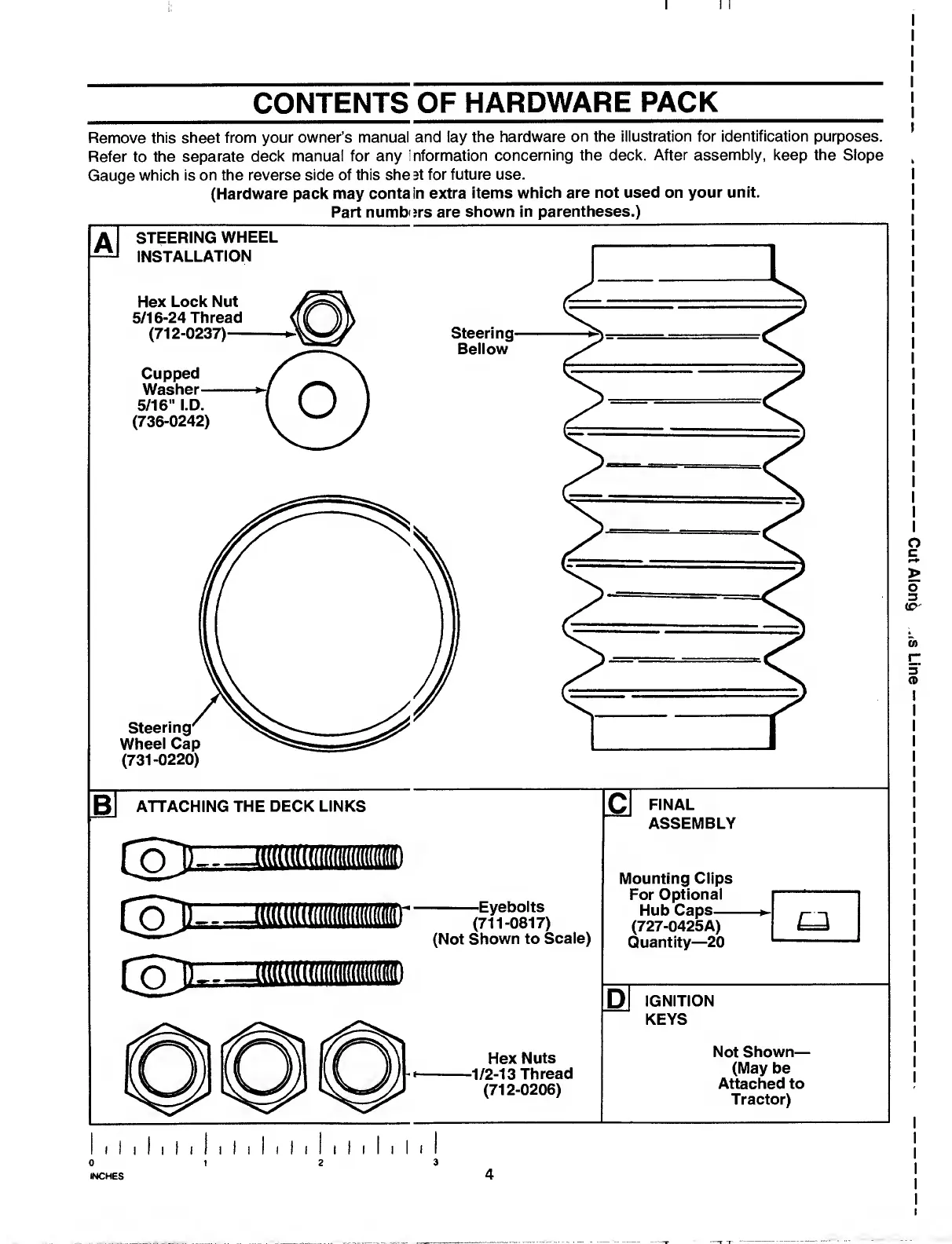

Remove this sheet from your owner’s manual and lay the hardware on the illustration for identification purposes.
Refer to the separate deck manual for any information concerning the deck. After assembly, keep the Slope
Gauge which is on the reverse side of this she 3t for future use.
(Hardware pack may contain extra items which are not used on your unit.
Part numbers are shown in parentheses.)
STEERING WHEEL
INSTALLATION
Hex Lock Nut
5/16-24 Thread
(712-0237)—
Cupped
Washer-
5/1 6" I.D.
(736-0242)
Steering
Bellow
o
Steering'
Wheel Cap
(731-0220)
ATTACHING THE DECK LINKS
-Eyebolts
(711-0817)
(Not Shown to Scale)
Hex Nuts
-1/2-13 Thread
(712-0206)
FINAL
ASSEMBLY
Mounting Clips
For Optional
Hub Caps—
(727-0425A)
Quantity—20
D] IGNITION
KEYS
Not Shown—
(May be
Attached to
Tractor)
i I i I i I i i I i I i I i i I i I i I i
2
3
Cut
Along
