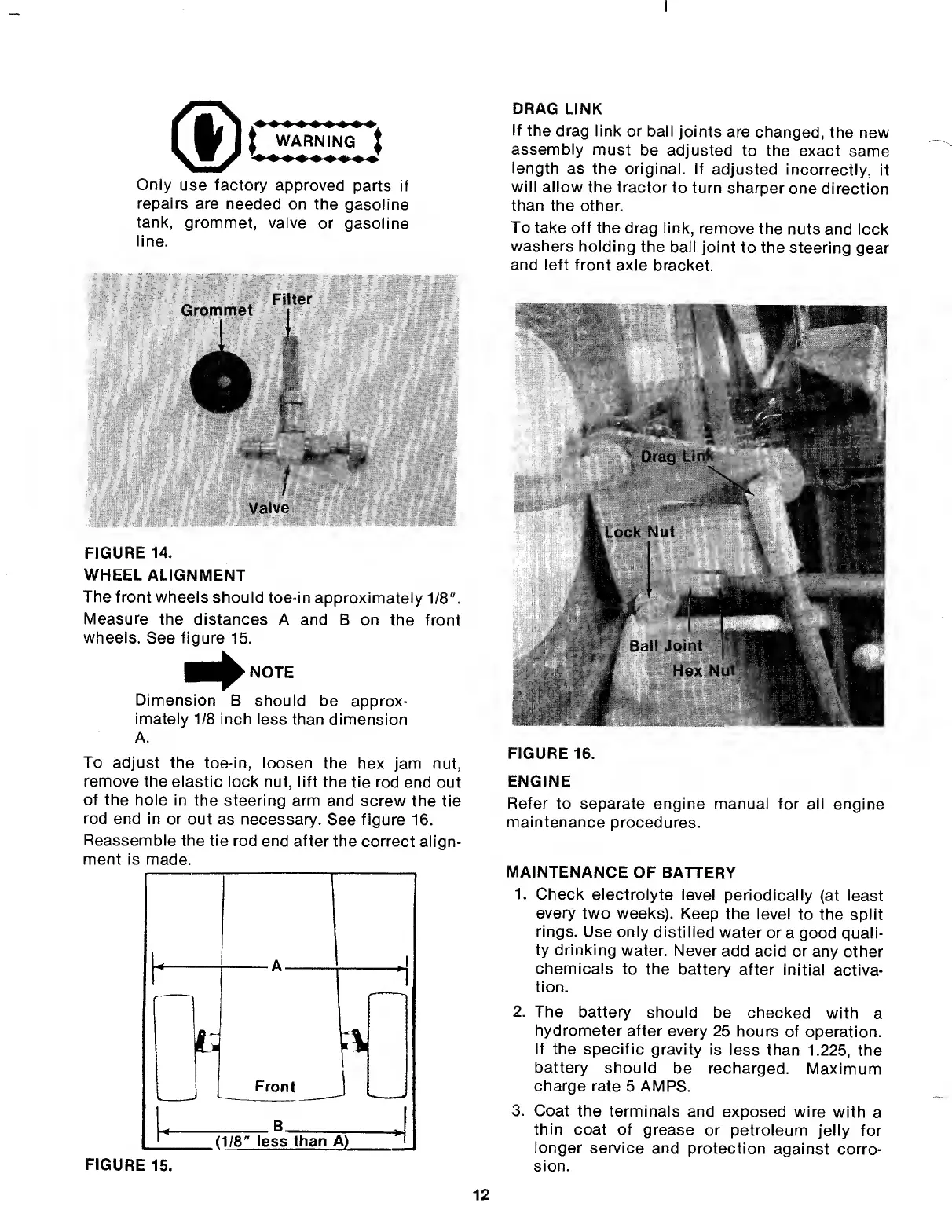

MTD 824 - Wheel Alignment; Maintenance of Battery

I
^ WARNING \
Only use factory approved parts if
repairs are needed on the gasoline
tank, grommet, valve or gasoline
line.
FIGURE 14.
WHEEL ALIGNMENT
The front wheels should toe-in approximately 1/8".
Measure the distances A and B on the front
wheels. See figure 15.
NOTE
Dimension B should be approx¬
imately 1/8 inch less than dimension
A.
To adjust the toe-in, loosen the hex jam nut,
remove the elastic lock nut, lift the tie rod end out
of the hole in the steering arm and screw the tie
rod end in or out as necessary. See figure 16.
Reassemble the tie rod end after the correct align¬
ment is made.
FIGURE 15.
DRAG LINK
If the drag link or ball joints are changed, the new
assembly must be adjusted to the exact same
length as the original. If adjusted incorrectly, it
will allow the tractor to turn sharper one direction
than the other.
To take off the drag link, remove the nuts and lock
washers holding the ball joint to the steering gear
and left front axle bracket.
FIGURE 16.
ENGINE
Refer to separate engine manual for all engine
maintenance procedures.
MAINTENANCE OF BATTERY
1. Check electrolyte level periodically (at least
every two weeks). Keep the level to the split
rings. Use only distilled water or a good quali¬
ty drinking water. Never add acid or any other
chemicals to the battery after initial activa¬
tion.
2. The battery should be checked with a
hydrometer after every 25 hours of operation.
If the specific gravity is less than 1.225, the
battery should be recharged. Maximum
charge rate 5 AMPS.
3. Coat the terminals and exposed wire with a
thin coat of grease or petroleum jelly for
longer service and protection against corro¬
sion.
12
