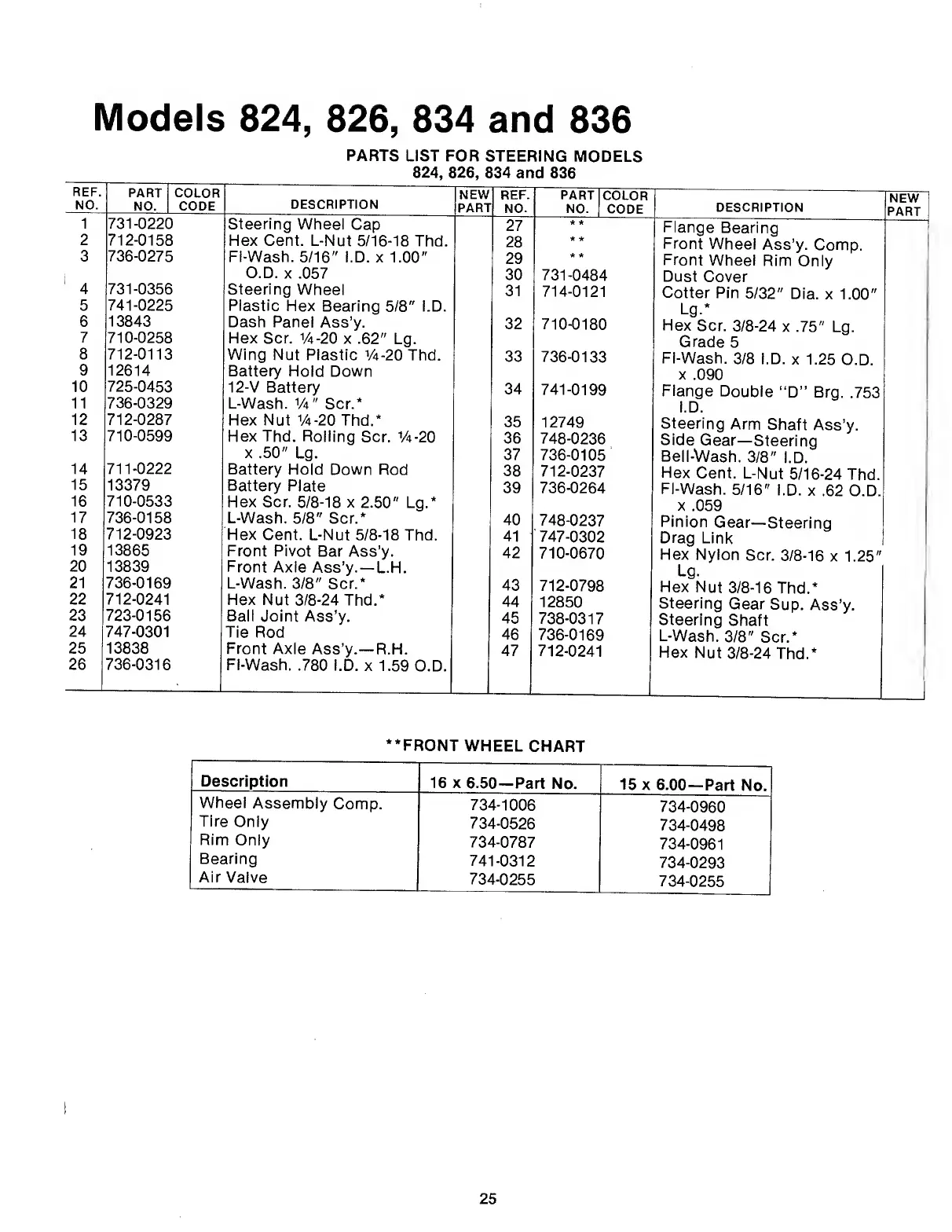

Models 824, 826, 834 and 836
PARTS LIST FOR STEERING MODELS
824, 826, 834 and 836
REF.
NO.
PART
NO.
COLOR
CODE
DESCRIPTION
NEW
PART
REF.
NO.
PART
NO.
COLOR
CODE
DESCRIPTION
NEW
PART
1
731-0220
Steering Wheel Cap
27
* ★
Flange Bearing
2
712-0158
Hex Cent. L-Nut 5/16-18 Thd.
28
* ★
Front Wheel Ass’y. Comp.
3
736-0275
FI-Wash. 5/16" I.D. x 1.00"
29
* *
Front Wheel Rim Only
O.D. X .057
30
731-0484
Dust Cover
4
731-0356
Steering Wheel
31
714-0121
Cotter Pin 5/32" Dia. x 1.00"
5
741-0225
Plastic Hex Bearing 5/8" I.D.
Lg.*
6 13843
Dash Panel Ass’y.
32
710-0180
Hex Scr. 3/8-24 x .75" Lg.
7
710-0258
Hex Scr. 1/4-20 x .62" Lg.
Grade 5
8
712-0113
Wing Nut Plastic V4-20Thd.
33
736-0133
FI-Wash. 3/8 I.D. x 1.25 O.D.
9
12614
Battery Hold Down
X .090
10
725-0453 12-V Battery
34
741-0199
Flange Double “D” Brg. .753
11
736-0329
L-Wash. 1 / 4 " Scr.*
I.D.
12
712-0287
Hex Nut 1 / 4-20 Thd.*
35
12749
Steering Arm Shaft Ass’y.
13
710-0599
Hex Thd. Rolling Scr. 1 / 4-20
36
748-0236
Side Gear—Steering
X .50" Lg.
37
736-0105
Bell-Wash. 3/8" I.D.
14 711-0222
Battery Hold Down Rod
38
712-0237
Hex Cent. L-Nut 5/16-24 Thd.
15
13379
Battery Plate
39
736-0264
FI-Wash. 5/16" I.D. x .62 O.D.
16 710-0533
Hex Scr. 5/8-18 x 2.50" Lg.*
X .059
17
736-0158
L-Wash. 5/8" Scr.*
40
748-0237
Pinion Gear—Steering
18
712-0923
Hex Cent. L-Nut 5/8-18 Thd.
41
747-0302
Draa Link
19
13865
Front Pivot Bar Ass’y-
42
710-0670
Hex Nvion Scr. 3/8-16 x 1.2.5"
20
13839
Front Axle Ass’y. —L.H.
Lg.
21 736-0169
L-Wash. 3/8" Scr.*
43
712-0798
Hex Nut 3/8-16 Thd.*
22 712-0241
Hex Nut 3/8-24 Thd.*
44
12850
Steering Gear Sup. Ass’y.
23 723-0156
Ball Joint Ass’y.
45
738-0317
Steering Shaft
24
747-0301
Tie Rod
46
736-0169
L-Wash. 3/8" Scr.*
25
13838
Front Axle Ass’y.—R.H.
47
712-0241
Hex Nut 3/8-24 Thd.*
26
736-0316
FI-Wash. .780 I.D. x 1.59 O.D.
**FRONT WHEEL CHART
Description
16 X 6.50—Part No.
15 X 6.00—Part No.
Wheel Assembly Comp.
734-1006
734-0960
Tire Only
734-0526
734-0498
Rim Only
734-0787
734-0961
Bearing
741-0312
734-0293
Air Valve
734-0255
734-0255
25
