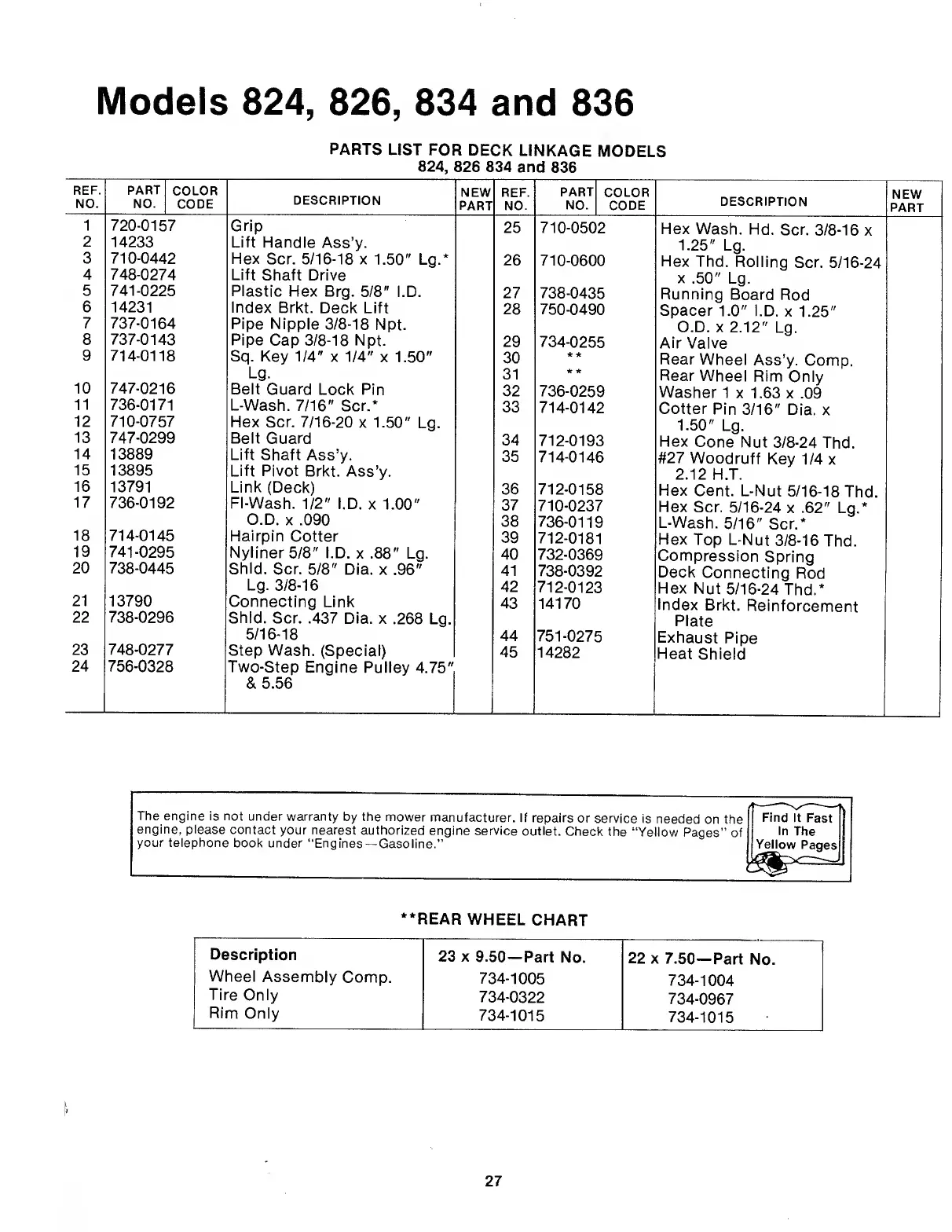

Models 824, 826, 834 and 836
PARTS LIST FOR DECK LINKAGE MODELS
824, 826 834 and 836
REF.
NO.
PART
NO.
COLOR
CODE
DESCRIPTION
NEW
PART
REF.
NO.
PART
NO.
COLOR
CODE
DESCRIPTION
NEW
PART
1
720-0157 Grip
25
710-0502
Hex Wash. Hd. Scr. 3/8-16 x
2
14233
Lift Handle Ass’y-
1.25" Lg.
3
710-0442
Hex Scr. 5/16-18 x 1.50" Lg.*
26
710-0600
Hex Thd. Rolling Scr. 5/16-24
4
748-0274
Lift Shaft Drive
X .50" Lg.
5
741-0225
Plastic Hex Brg. 5/8" I.D.
27
738-0435
Running Board Rod
6
14231
Index Brkt. Deck Lift
28
750-0490
Spacer 1.0" I.D. x 1.25"
7
737-0164
Pipe Nipple 3/8-18 Npt.
O.D. X 2.12" Lg.
8
737-0143
Pipe Cap 3/8-18 Npt.
29
734-0255
Air Valve
9
714-0118
Sq. Key 1/4" x 1/4" x 1.50"
30
★ *
Rear Wheel Ass’y. Comp.
Lg-
31
* *
Rear Wheel Rim Only
10
747-0216
Belt Guard Lock Pin
32
736-0259
Washer 1 x 1.63 x .09
11
736-0171
L-Wash. 7/16" Scr.*
33
714-0142
Cotter Pin 3/16" Dia. x
12
710-0757
Hex Scr. 7/16-20 x 1.50" Lg.
1.50" Lg.
13
747-0299
Belt Guard
34
712-0193
Hex Cone Nut 3/8-24 Thd.
14
13889
Lift Shaft Ass’y.
35
714-0146
#27 Woodruff Key 1/4 x
15
13895
Lift Pivot Brkt. Ass’y-
2.12 H.T.
16
13791
Link (Deck)
36
712-0158
Hex Cent. L-Nut 5/16-18 Thd.
17
736-0192
FI-Wash. 1/2" I.D. x 1.00"
37
710-0237
Hex Scr. 5/16-24 x .62" Lg.*
O.D. X .090
38
736-0119
L-Wash. 5/16" Scr.*
18
714-0145
Hairpin Cotter
39
712-0181
Hex Top L-Nut 3/8-16 Thd.
19
741-0295
Nyliner5/8" I.D. x .88" Lg.
40
732-0369
Compression Spring
20
738-0445
Shid. Scr. 5/8" DIa. x .96"
41
738-0392
Deck Connecting Rod
Lg. 3/8-16
42
712-0123
Hex Nut 5/16-24 Thd.*
21
13790
Connecting Link
43
14170
Index Brkt. Reinforcement
22
738-0296
ShId. Scr. .437 Dia. x .268 Lg.
Plate
5/16-18
44
751-0275
Exhaust Pipe
23 748-0277
Step Wash. (Special)
45
14282
Heat Shield
24
756-0328
Two-Step Engine Pulley 4.75"
& 5.56
The engine is not under warranty by the mower manufacturer. If repairs or service is needed on the
engine, please contact your nearest authorized engine service outlet. Check the "Yellow Pages” of
your telephone book under “Engines —Gasoline.”
Find It Fast
In The
Yellow Pages
“REAR WHEEL CHART
Description
23 X 9.50—Part No.
22 X 7.50—Part No.
Wheel Assembly Comp.
734-1005
734-1004
Tire Only
734-0322
734-0967
Rim Only
734-1015
734-1015
27
