C and D series mowers
44
12. Slip the spherical bearings out of the pockets that
locate them in the rear baffle, and remove the trans-
mission and axle assembly together.
See Figure 4.44.
13. With the transmission and axle assembly removed,
t h e t r a n s m i s si o n c a n b e s e p a r a t e d fr o m t h e a x l e :
See Figure 4.45.
• Push the spherical bearings inward, to release
them from the wheel brackets.
• With both bearings slid toward the transmission
housing, there will be enough range of move-
ment to slide the transmission housing toward
the right wheel bracket (the one without the
height adjuster lever).
• When the short drive shaft is clear of the left
side wheel bracket, angle the transmission out
of the bracket, and withdraw the long drive
shaft from the right side wheel bracket.
See Figure 4.46.

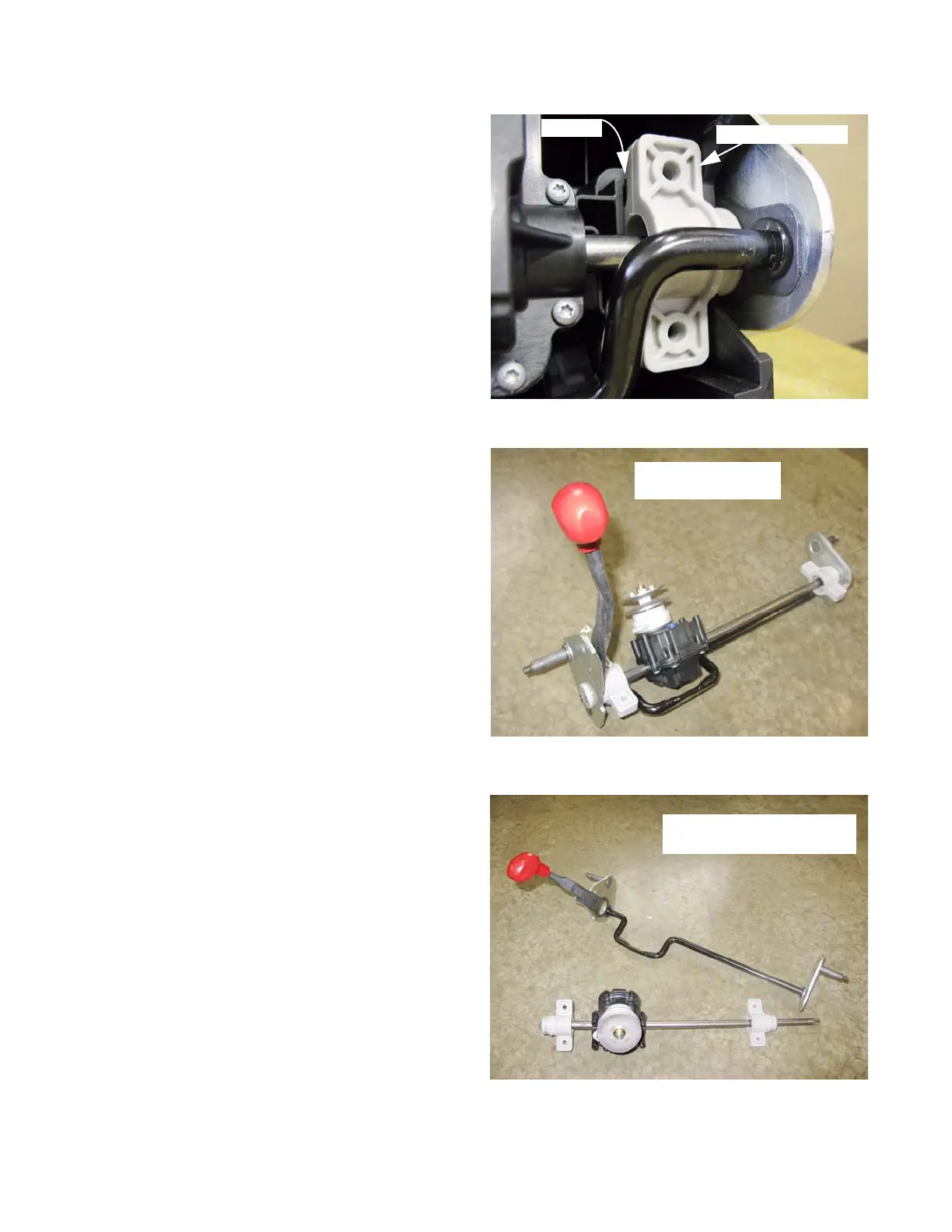

Figure 4.44
Spherical bearing
Pocket
Figure 4.45
Transmission and
rear axle assembly
Figure 4.46
Transmission and rear
axle assembly separated
