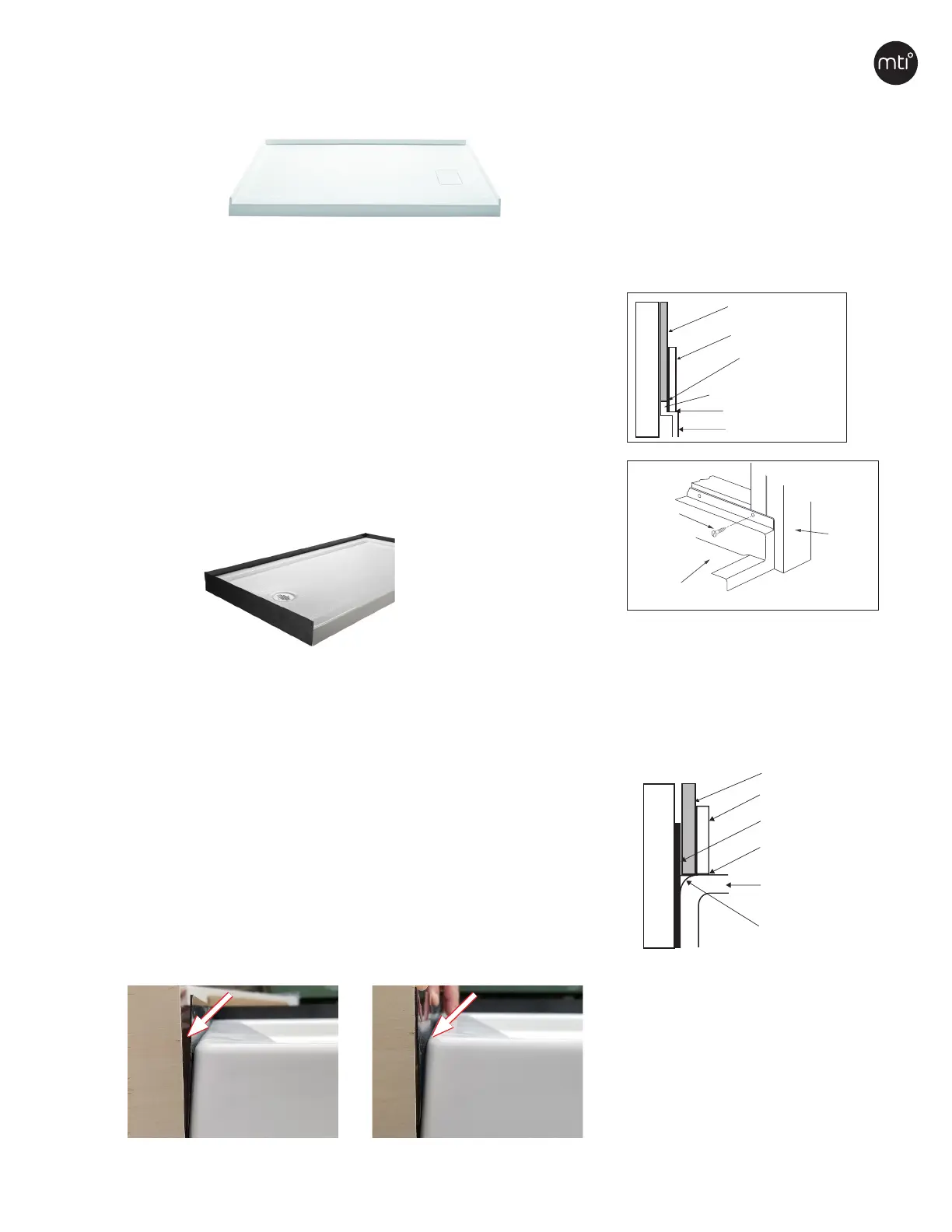

MTI DoloMatte - Integral Tile Flange Installation; Factory Installed ABS Tile Flange Installation

Installation and Operational Manual • Designer Collection • Shower Systems
mtibaths.com / 7
Single Threshold with
Integral Tile Flange
Factory Installed
Tile Flange
Installation Instructions – Shower Pans
W
A
L
L
Shower Base
Tile
Tile Flange
Caulk
Silicone
Backer Board
Rigid ABS tile flange is chemically bonded to 1, 2, or 3 sides of the shower pan as specified on order.
Provides watertight seal. Never attempt to remove tile flange — damage will occur.
FACTORY INSTALLED TILE FLANGE FOR LOWPROFILE MULTITHRESHOLD
•
Check shower pan for level before securing tile flange to stud walls.
•
Screw flexible ABS tile flange to stud wall. Do not use nails.
•
Apply 100% silicone where the ABS flange meets the shower pan.
•
Install backer board. See diagram (right).
•
Finished material installs in front of backer board.
•
Caulk /grout between finished wall material and shower pan.
INTEGRAL TILE FLANGE MOLDED FOR SINGLE AND DUAL THRESHOLD PANS
•
Check shower pan for level before securing tile flange to stud walls.
•
Screw flange to the wall studs. See Step 5 on pg. 6. Do not use nails.
•
Do not over-tighten, as this may cause the material to crack or chip.
•
Apply ⁄" bead of 100% silicone along the top of the integral flange.
•
Install backer board. See diagram (right).
•
Install finished material in front of backer board.
•
Caulk / grout between finished wall material and shower pan.
Backer Board
Tile
Integral Tile Flange
W
A
L
L
Inside Shower W
all
Silicone
Caulk/Grout
The integral tile flange is molded into the shower pan at the factory.
Stud
Line
Screw
(do not use
nails to attach
flange to stud)
Shower
Pan
Flange may pull away from the
curb of the base as it is secured to
the wall, but will remain chemically
bonded to the base for watertight
seal (See images left)
Apply 100% silicone where the ABS
flange meets the shower pan.
Screw flange to wall stud. Apply 100% silicone.
