MTS Exceed™ Series 40 Site Preparation Guide
38
Moving E44 and E45(Standing position) Frames
Lift and Move Instructions
Crosshead method
This method requires protective padding on either the crosshead or forklift arms
to protect the crosshead from scratching or marring.
This method can be used to:
• Transport the load frame to the site location.
• Lift a tabletop load frame onto a table or workbench.
• Lift the frame to remove the transport skid from the frame’s base and to
insert the leveling wedge iron.
Lifting the Frame from the Crosshead
To transport the load frame using the crosshead method:
1. Ensure that there are no shipping bolts attached to the skid.
2. Using a forklift with padded forks or protective material around the
crosshead, carefully insert the forks under the crosshead between the
columns.

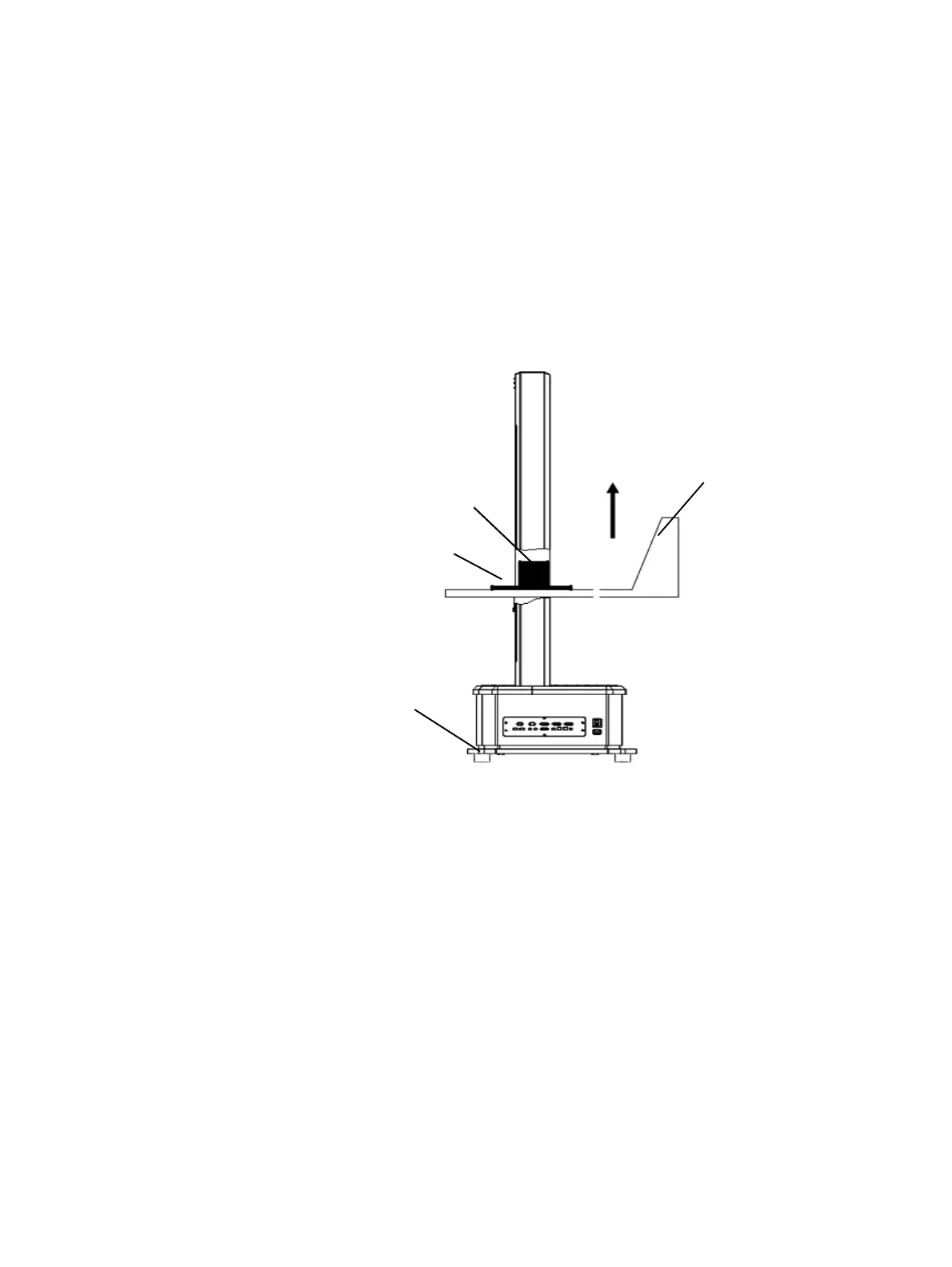

Forklift Arm
Crosshead
Protective Material
Leveling wedge
