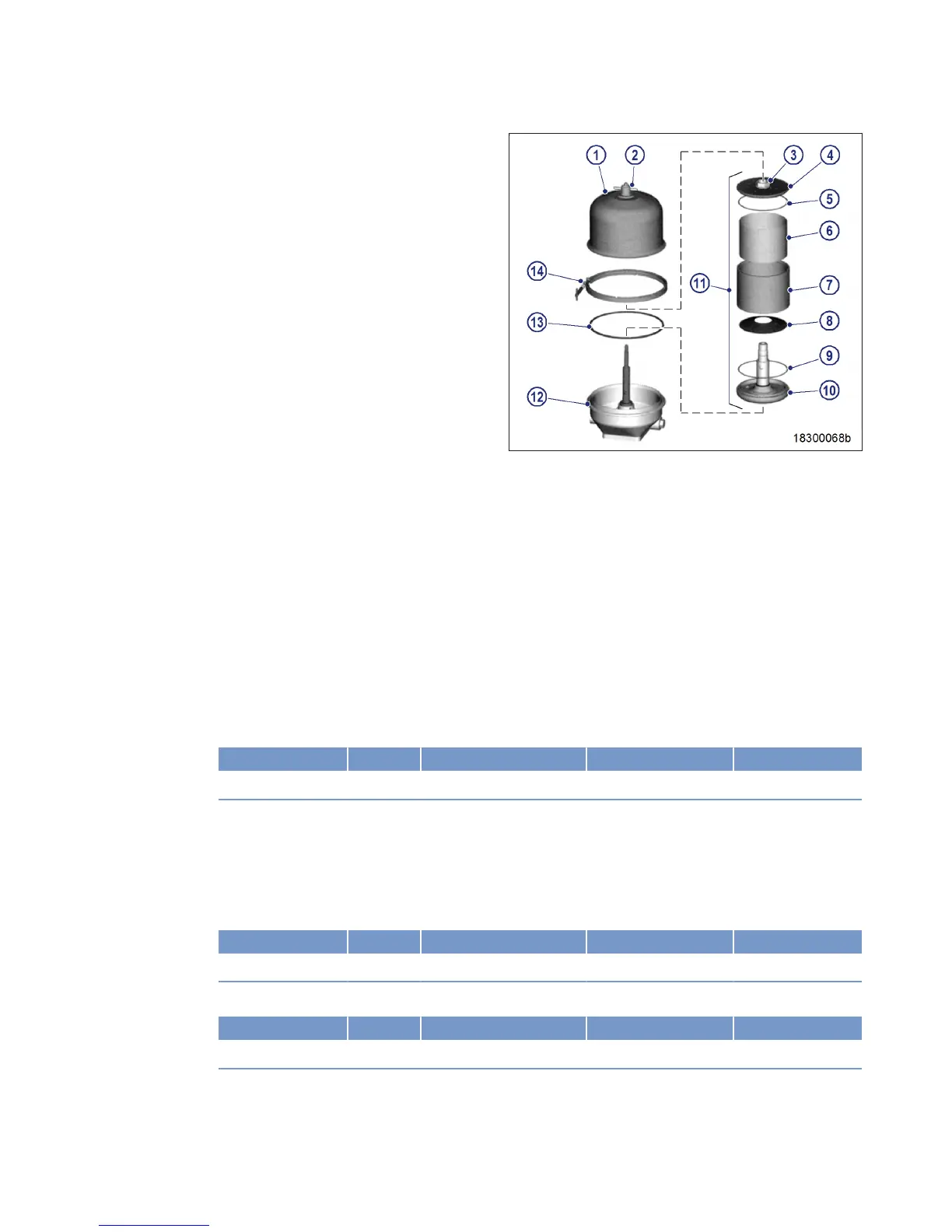

Centrifugal oil filter cleaning and
filter sleeve replacement
1. Remove clamp (14).
2. Release cover screw (2) and take off cov‐
er (1).
3. Carefully lift rotor (11), allow oil to drain and
remove from housing.
4. Holding the rotor (11) firmly, release rotor
cover nut (3).
5. Take off rotor cover (4).
6. Remove filter sleeve (6).
7. Measure thickness of oil residues on filter
sleeve (6).
8. If maximum layer thickness of oil residues
exceeds 45 mm, shorten maintenance in‐
terval.
9. Disassemble rotor tube (7), conical disk (8)
and rotor base (10).
10. Wash rotor cover (4), rotor tube (7), conical
disk (8) and rotor base (10) with cold clean‐
er.
11. Blow out with compressed air.
12. Check sealing ring (9), fit new one if neces‐
sary.
13. Assemble rotor tube (7), conical disk (8)
and rotor base (10) with sealing ring (9).
14. Insert new filter sleeve (6) in rotor tube (7)
with the smooth paper surface facing the
outer wall.
15. Check sealing ring (5), fit new one if neces‐
sary.
16. Mount rotor cover (4) with sealing ring (5).
17. Tighten rotor cover nut (3) with torque wrench to the specified torque.
Name Size Type Lubricant Value/Standard
Nut Tightening torque 35 Nm to 45 Nm
18. Place rotor (11) in housing (12) and check for ease of movement.
19. Check sealing ring (13), fit new one if necessary.
20. Fit sealing ring (13) on housing (12).
21. Fit cover (1).
22. Fit cover screw (2) by hand.
23. Install clamp (14) and tighten with torque wrench to the specified torque.
Name Size Type Lubricant Value/Standard
Clamp Tightening torque 8 Nm to 10 Nm
24. Tighten cover nut (2) with torque wrench to the specified torque.
Name Size Type Lubricant Value/Standard
Screw Tightening torque 5 Nm to 7 Nm
MS150094/01E 2012-08 | Task Description | 73
TIM-ID: 0000000934 - 008
