16. Tighten union nut of adapter (limiting valve) to specified torque using a torque wrench.
Name Size Type Lubricant Value/Standard
Union nut Tightening torque 140 Nm + 10 Nm
17. Tighten union nut of adapter (injector) to specified torque using a torque wrench.
Name Size Type Lubricant Value/Standard
Union nut Tightening torque 120 Nm +10 Nm
18. Twist cable several times.

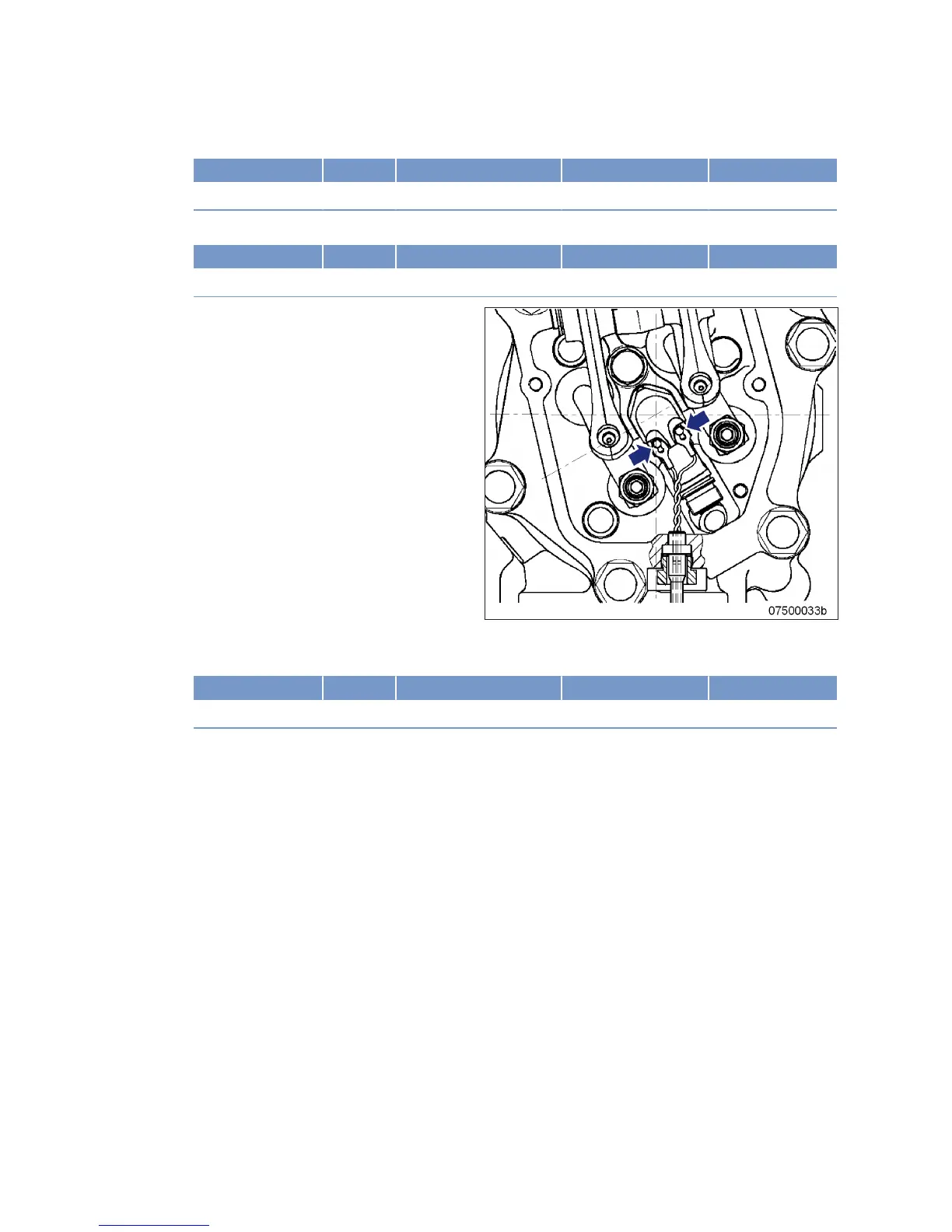

19. Insert cable lugs (arrowed) underneath the screws on the injector and tighten screws to specified torque us-
ing a torque wrench.
Name Size Type Lubricant Value/Standard
Screw Tightening torque 1.5 Nm
Final steps
1. Install cylinder head cover (→ Page 77).
2. Open fuel supply to engine.
