5
1
3
4
6
8
7
FOR ZIP TIES TO
HOLD WIRE
ITEM NO.
PART NUMBER
QTY.
1
STC-82 Outdrive Clutch
Cover Tall Reverse
1
3
STC-376 Brake Brake
Magnet
3
4
STC-406 Brake Magnet
Spacer Tube
6
5
STC-403 Magnet 1.42 OD
3
6
F-S69 SCREW 10-32 X 1/4
3
7
STC-474 HDR Cover Harness
Bracket
1
8
F-S18 Screw 10-32 x 0.375"
SS Phillips Pan Head
Machine Screw
3
DO NOT SCALE DRAWING
STC-407
SHEET 1 OF 1
1/15/19
L.THOMAS
B.Hend
UNLESS OTHERWISE SPECIFIED:
SCALE: 1:8
WEIGHT:
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
UPDATED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH
BEND
TWO PLACE DECIMAL
.01
THREE PLACE DECIMAL
.005
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
MUD BUDDY LLC
. ANY REPRODUCTION
IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
MUD BUDDY LLC
IS PROHIBITED.
5
4
3
2
1
PROPRIETARY AND CONFIDENTIAL
MUD BUDDY LLC.
COVER ASSEMBLY
TALL REVERSE
A
7
12
11
9
8
4
5
13
ITEM NO.
PART NUMBER
QTY.
4
STC-64 Handle Grip
1
5
CKC-83 Throttle
Handle Assembly
1
7
STC-61 Handle Box
Top Cover
1
8
SVC-064 Trim Switch
Side
1
9
P5- Vandal Resistant,
Sealed, Alternat
action
1
10
STC-61 Handle Box
Back
1
11
STC-393 Toggle Switch
DPDT 15 AMP
1
12
STC-447 Toggle Guard
Handle Box
1
13
EL-180 Tether Kill
Switch
1
DO NOT SCALE DRAWING
STC-507
SHEET 1 OF 1
3/17/20
B.H.
UNLESS OTHERWISE SPECIFIED:
SCALE: 1/8
WEIGHT:
REV
DWG. NO.
A
SIZE
TITLE:
NAME
DATE
COMMENTS:
Q.A.
MFG APPR.
ENG APPR.
CHECKED
DRAWN
FINISH
MATERIAL
INTERPRET GEOMETRIC
TOLERANCING PER:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH
BEND
TWO PLACE DECIMAL
.01
THREE PLACE DECIMAL
.005
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
MUD BUDDY LLC
. ANY REPRODUCTION
IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
MUD BUDDY LLC
IS PROHIBITED.
5
4
3
2
1
PROPRIETARY AND CONFIDENTIAL
MUD BUDDY LLC.
HANDLE ASSEMBLY
HDR 1.5"

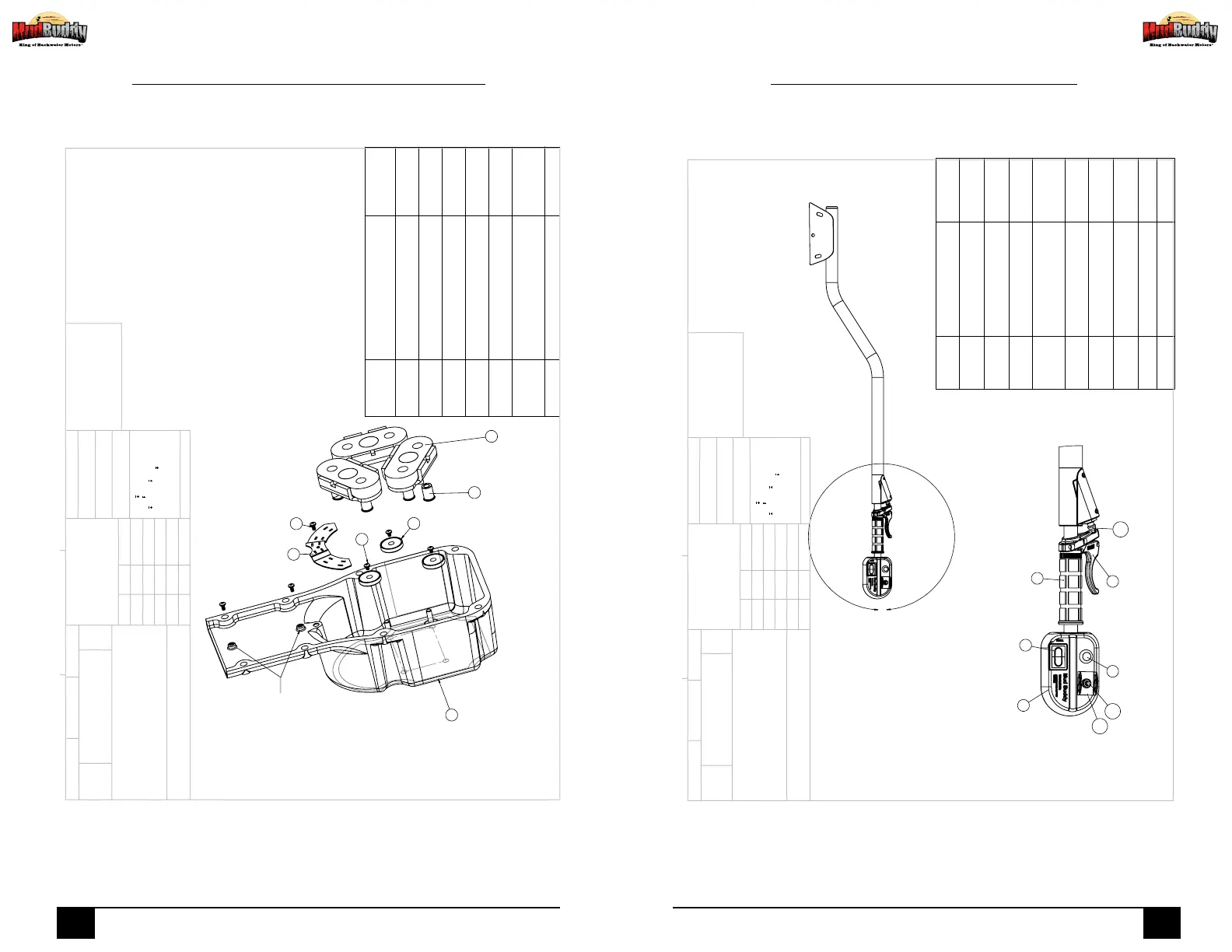

COVER ASSEMBLY TALL REVERSE HANDLE ASSEMBLY HDR 1.5
