27
18
21
22
20
23
29
31
28
17
33
11
1
24
1
1
1
1
13
12
15
510
32

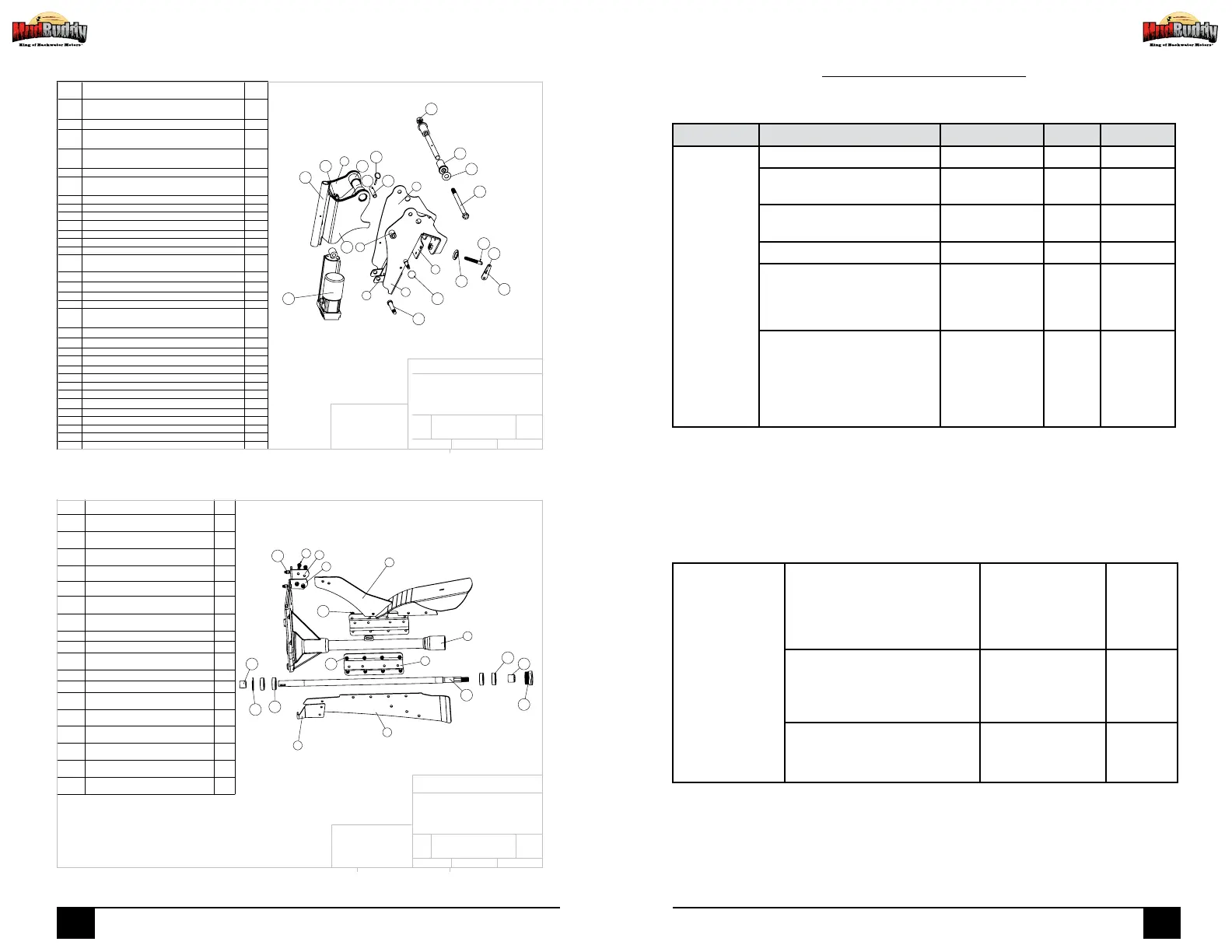

ITEM
NO.
PART NUMBER
QTY.
1
STC-289 Clamp Mount Sub Assembly Sport
Merc
1
2
1-s11 Clamp Mount Sport Merc
1
3
1-S15 Clamp Mount Yoke Left Sport Merc
1
4
1-S16 Clamp Mount Yoke Right Sport
Merc
1
5
STC-126 Travel Lock Barrel
1
6
1-S18 Actuator Yoke Bottom Sport Merc
1
7
F-N11 Nut 1/2-20
2
8
STC-288
1
9
1-S13 Swivel, Inner
1
10
1-S14 Outer Swivel Sport Merc
1
11
STC-111 Swivel Tube
1
12
STC-110 Swivel Tube 7.25
1
13
1-S20 Swivel Tube 2 inch
2
14
1-S17 ACTUATOR YOKE TOP SPORT MERC
1
15
1-S21 Bushing, Actuator (sport merc)
1
16
1-S26 Bumper, Swivel
1
17
1-S22
1
18
F-B114
1
19
STC-239 Clamp Mount Handle Assembly
2
20
STC-29 Clamp Screw
1
21
STC-28 Handle, Clamp Mount
1
22
F-M01 Spring Pin
1
23
STC-27 Cup, Clamp
2
24
SVC 02 merc trim main base
1
25
merc actuator arm
1
26
STC-129 Travel Lock Pin
1
27
STC-125 Travel Lock Ball
1
28
STC-109 Bushing
2
29
F-B75 Bolt 5/8-11 x 9 1/2
1
30
STC-13 Swivel Tube Inner
1
31
F-W13 Washer 5/8 Internal
1
32
F-N84 Nut 5/8-11 Nylock
1
33
1-S24 Quick Release Pin
1
STC-336
SHEET 1 OF 1
SCALE: 1:48
WEIGHT:
REV
DWG. NO.
A
SIZE
TITLE:
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
MUD BUDDY LLC
. ANY REPRODUCTION
IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
MUD BUDDY LLC
IS PROHIBITED.
5
4
3
1
PROPRIETARY AND CONFIDENTIAL
MUD BUDDY LLC.
CLAMP MOUNT
ASSEMBLY SPORT
MERC
7
5
6
1
3
4
17
15
14
12
13
15
10
16
9
11
2
18
ITEM
NO.
PART NUMBER
QTY.
1
STC-418 Top Brace Cav Plate
Assembly 32 inch HDR
1
2
STC-118 Bracket, Right Top Brace
Mount
1
3
STC-119 Bracket, Left Top Brace
Mount
1
4
1-M40 Brace, Mini Lower Bracket
Top
2
5
STC-387 Skeg 32 Inch Drive
Reverse
1
6
STC-416 Skeg Close out Plate
HDR
1
7
STC-417 Drive Sub Assembly 32
Inch Reverse
1
8
F-B04 1/4-28 x 3/4 SHCS SS
1
9
F-B14 3/8-16 X 1 1/4 SS HCS
4
10
F-M05 Retaining Ring Inch
Internal
1
11
F-N06 NUT .375-16 LN
4
12
STC-242 SEAL AND CAP SET
1
13
STC-100 Drive Shaft 32.375
1
14
STC-19 Sleeve, Rear Sleeve
1
15
STC-08 Bearing 6205
4
16
STC-21 Bushing Sleeve Front
1
17
F-N04 .3125-18 NC ZP NYLOCK
NUT
8
18
F-B08 HCS .3125 X 1 SS
8
STC-409
SHEET 1 OF 2
SCALE: 1:24
WEIGHT:
REV
DWG. NO.
SIZE
TITLE:
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
. ANY REPRODUCTION
IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
IS PROHIBITED.
5
4
3
2
1
MUD BUDDY LLC.
DRIVE ASSEMBLY
32" W/OUT DRIVE
DRIVE SPROCET (HDR)
35 36
Troubleshooting
Issue Action Value/ notes Yes NO
Engine
will not
start
Check safety lanyard
Is Shift switch in Neutral
Position?
Adjust to
Neutral
Check the Main circuit Break-
er o Battery
Check Battery Voltage 12.2-13.5 V
Can you hear the fuel pump
initialize when key is turned
to run position
Fuel pump ini-
tialize indicates
ECU is getting
power
System
OK
Check fuel
pump and
connec-
tions
Does The MIL light turn on
when Key is turned to run
position
MIL light Check
ECU or
electrical
connec-
tions to
battery
Trouble
shifting
Forward,
but not
reverse
Check electrical ground connec-
tions coming from belt housing
Look for a loos or corroded connec-
tion at the grounding lug
If shift engages in one
direction but not the
other. The positive
circuit is known good
at least up to the shift
switch.
Tighten
Grounding
lug
Check electrical connector behind
the handle. Position 10 (Red) is for-
ward. Position 11 (Gray is reverse)
Look for contacts not fully seated,
broken or damaged wires
Fix loose
or broken
connec-
tions
Check electrical 2 pin connector
inside the belt housing. Check to
make sure contacts are fully seated
and no broken or damaged wires
cont’d on next pg.
To Next Page
