Mueller B-101 User Manual

MUELLER
®
B-101
TM
and B-100
TM
Drilling and Tapping Machines
General Information
2
Capacity and Use

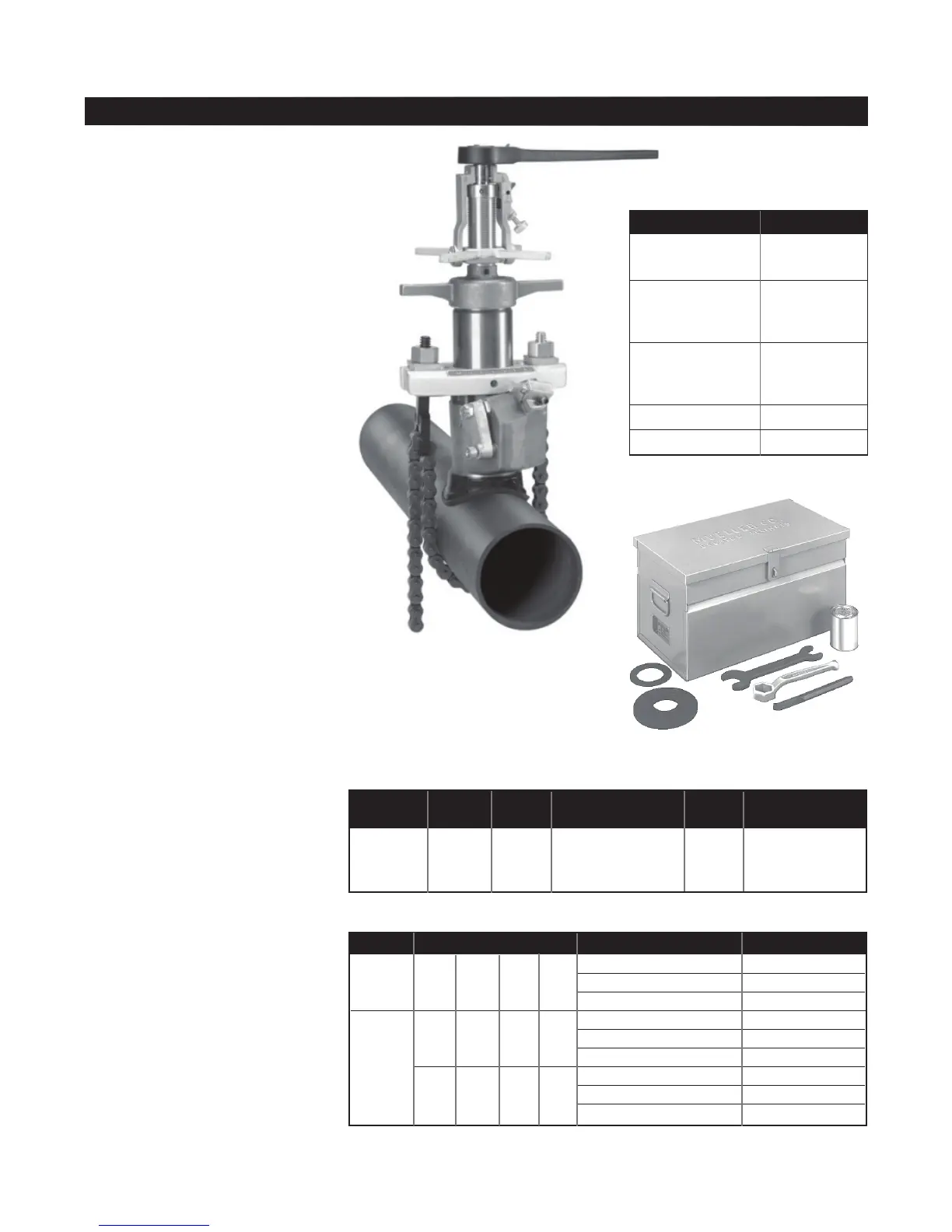

The B-101 Drilling and Tapping
Machine drills and taps mains, and
inserts stops, tees or plugs into
the tapped hole in the main under
pressure.
The B-101 machine has a special
mechanism that permits the boring
bar to be locked to the feed nut
and yoke to prevent the drill from
spiraling into the hole before the hole
is completely drilled. It also prevents
the drill from dropping to the threaded
section of the combined drill and tap.
This design eliminates unnecessary
tool damage and is recommended for
low pressure drillings.
Tools and equipment for the B-101
and earlier B-100 machines are the
same.
Equipment Furnished with
Each Machine
• Metal Carrying Case
• Reversible Ratchet Handle
• Small Saddle Gasket
• Large Saddle Gasket
• Round Link Chain for 12” and
Small Pipe
• Chain Hooks/Washers/Nuts
• Open-end Wrench
• Box Wrench
• Body Cleaning Chisel
• Blow-off Valve
• Instruction Manual
• Cutting Grease
Equipment to be selected
• Combined Drills and Taps or Shell
Cutters and Taps
• Inserting Tools (used to insert
service stop tees or pipe plugs)
• Machine Saddles (adapts machine
to specic type and size of main)
NOTE: All tools and equipment
used with the B-101 machine
can also be used with the B-100
machine.
Optional Equipment
• Extracting Tools (used to remove
service stops or plugs from mains)
• Equipment for special uses
• Power Operator
Shipping Specications
 
Total shipping
weight 114 lbs. (52 kg)
Handling weight
during operation –
Upper section 20 lbs. (9 kg)
Handling weight
during operation –
Lower section 23 lbs. (10 kg)
Shipping Length 23”
Extended Length 32
1
/2”
Items Inserted with B-101 Drilling and Tapping Machine
Drilling and Tapping Machine Selection Guide
   
Drill and tap main Hand or power
Corp.
1
/2”
5
/8”
3
/4” 1” Insert corporation stop Hand
Stops
Extract corporation stop Hand
Drill and tap main Hand or power
1
/2”
5
/8”
3
/4” 1” Insert pipe plug Hand
Pipe Extract pipe plug Hand
Plugs Drill and tap main Hand* or power**
1
1
/4” 1
1
/2” 2” 2
1
/2” Insert pipe plug Hand
Extract pipe plug Hand
*When drilling or tapping above 1” by hand, use extension handle
**When power operating the machine to drill and tap 1
1
/2” and larger, only combined shell cutters
and taps should be used.

 

  

 

  
90psig(62kPa/6.20bar)
 Drillingandtapping


B-101Tapping

1
/2”–1”
1
/2”–1”–
1
/2”

250psig(1725kPa/
 
Handor

pressurizedmains&

Machine
 
17.25bar)
 
power

insertingcorp.stops
    
orplugswo/waterloss
