CLEARANCES
WARNING: The minimum distances given in these installation instructions are to
combustible surfaces, and must be observed to ensure safe operation.
● The range may be installed flush to the rear wall. Install a non-combustible material
on the rear wall above the range and up to the vent hood. It is not necessary to install
non-combustible materials behind the range below the countertop height.
● The minimum vertical clearance between the appliance and combustible construc-
tion extending from the cooking surface is 30 inches.
● The minimum vertical clearance between the countertop surface and combustible
construction above the appliance is 18 inches.
● The minimum distance from the side of the range above the countertop to combus-
tible sidewalls must be at least 13 inches.
● The minimum horizontal distance between overhead cabinets installed to either
side of the appliance shall not be less than the nominal width of the appliance.
● A floor-supported unit requires zero distance between adjacent combustible
construction (sides and rear).

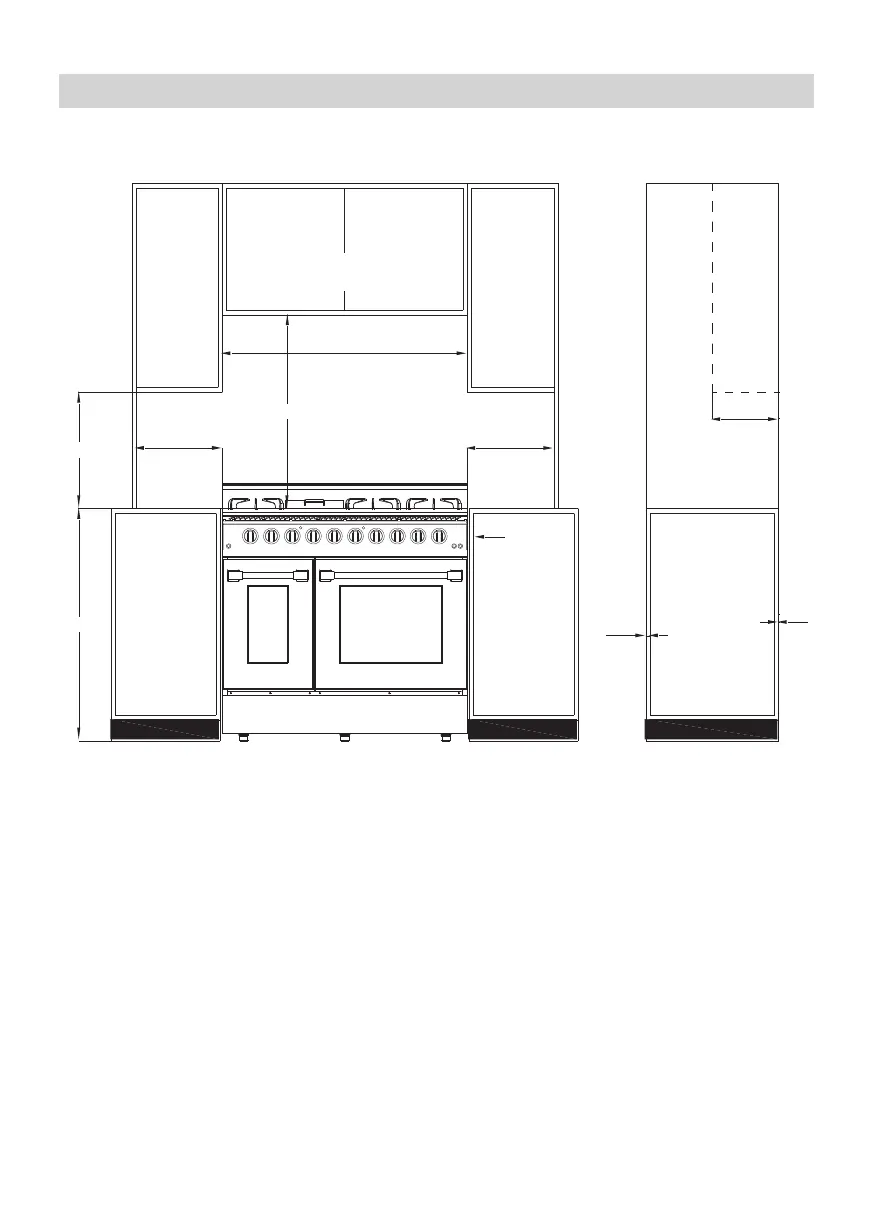

Front View
Side View
36"
18"
13"
48"
30" Minimum
13"
13"
0"
1/4"
To
cabinets
below
cooktop
height and
at rear of
the range
For
panels
left and
right of
the
range
front
Maximum
depth for
cabinets
above
countertops
0"
Minimum to cabinets on
either side of the range
To
cabinets
below
cooktop
height and
at rear of
the range
