Rear Panel Overview
1
3
2
5
4

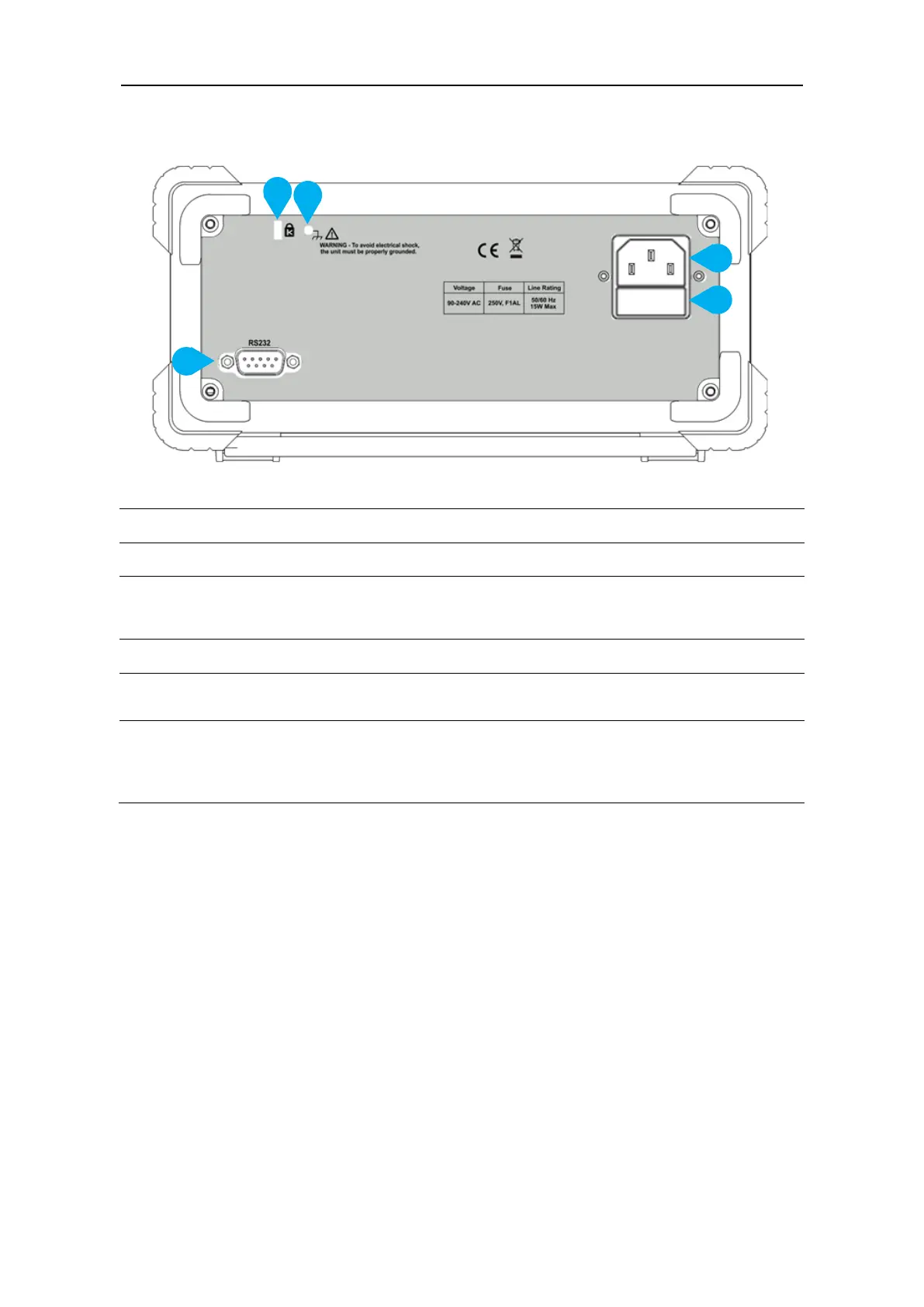

Figure 2-2 Rear panel overview
Item
Name
Description
1
RS232
Connect the PC through this port.
2
Line Fuse
The fuse rating is 250 V, F1AL. To replace the fuse, see page
41, Appendix C: Line Fuse Replacement.
3
AC Mains Input
AC mains input connector.
4
Chassis Ground
Screw
To ground the chassis.
5
Instrument Cable
Lock
You can lock the instrument to a fixed location using the
security lock (please buy it yourself) to secure the
instrument.
