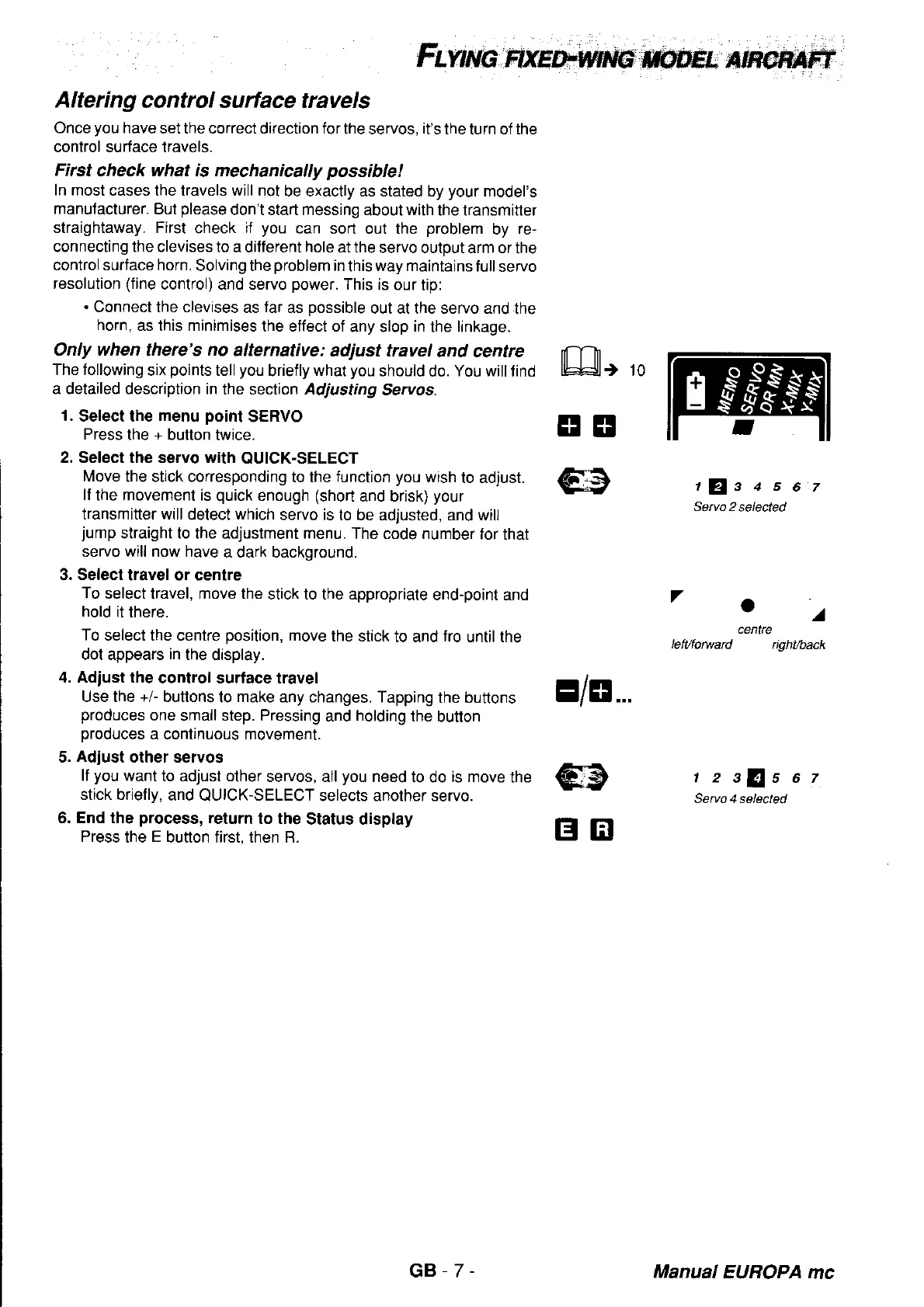

Multiplex EUROPA mc Series - Altering Control Surlace Travels

Altering
control surtace travels
Once
you
have
set the correct direction for
lhe servos,
it's
the turn of the
conlrol surface travels.
First
check what is mechanically
possihle!
In most
cases the travels will not
be exactly as stated by
your
model's
manufacturer.
But
please
don't start messing
about
with
the transmitter
straightaway. First
check
if
you
can sort out the
problem
by
re-
connecting the clevjses to
a difterent
hole
at the
servo output arm or
the
controlsurface horn.
Solving the
problem
in
this
way
maintains lullservo
resolution
(fine
control) and servo
power.
This
is our
tip:
.
Connect the clevises
as
far
as
possible
out at the servo and
the
horn,
as this minimises
the effect of
any slop
in
the linkage.
Only when
there's
no
alternative:
adjust travel
and centre
The following
six
points
tell
you
briefly
what
you
should
do.
You will
find
a detailed description in
the section Adjusting
Servos.
1.
Select the
menu
point
SERVO
Press
the + button twice.
2. Select the servo with
QUICK-SELECT
Move
the stick corresponding
to the
function
you
wish
to adjust.
lf
the movement is
quick
enough
(short
and brisk)
your
transmitter will
detect
which
servo is
to be adjusted, and will
jump
straight to the adjustment menu.
The code number
for that
servo
will
now have
a dark backoround.
3. Select
travel or centre
To
select travel, move the
stick to the appropriate
end-point and
hold
it there.
To
select the centre
position,
move
the stick
to and
fro
until the
dot appears
in
the display.
4. Adiust the
control surtace travel
Use the +l buttons
to
make
any changes. Tapping
the buttons
produces
one small step. Pressing
and
holding
the
button
oroduces
a continuous movement.
5.
Adiust
other servos
lf
you
want
to adjust other
servos, all
you
need
to do
is move
the
stick brielly,
and
QUICK-SELECT selects another servo.
6. End the
process,
return
lo the
Status display
Press
the
E
button first, then R.
t10
EE
E/8...
r
Qls
a s
a z
Setvo 2
selected
7
'a
a
centre
left/fowad
ighLhack
r z
slls a t
SeNo4 selected
trtr
GB-7.
Manual
EUROPA
mc
