COLD CARBONATED WATER COOLED APPLIANCE CONTROL POSITIONS
HEAT DUMP INSTALLATION - GENERAL GUIDELINES
ΖWLVLPSRUWDQWWKDWWKHKHDWGXPSLVVLWHGFRUUHFWO\WRHQDEOHLWWRZRUNHɝFLHQWO\
The guidelines below should be adhered to wherever possible.
2. Ensure the unit is sited on an outside wall (preferably not south facing) in the
correct orientation out of direct sunlight.
3. Ensure there are no other heat sources, ie a condensing unit or another heat
dump, in the immediate vicinity where hot air may be recirculating.
4. Use the recommended tubing (15mm O\D, 10mm I\D special EVA) to connect the
base unit to the heat dump. Do not use braided tube as this is not compatible with
glycol and is also prone to kinking when warm.
5. Do not exceed the recommended distance and lift (40 meters from the base unit to
the heat dump and 9 meters of lift)

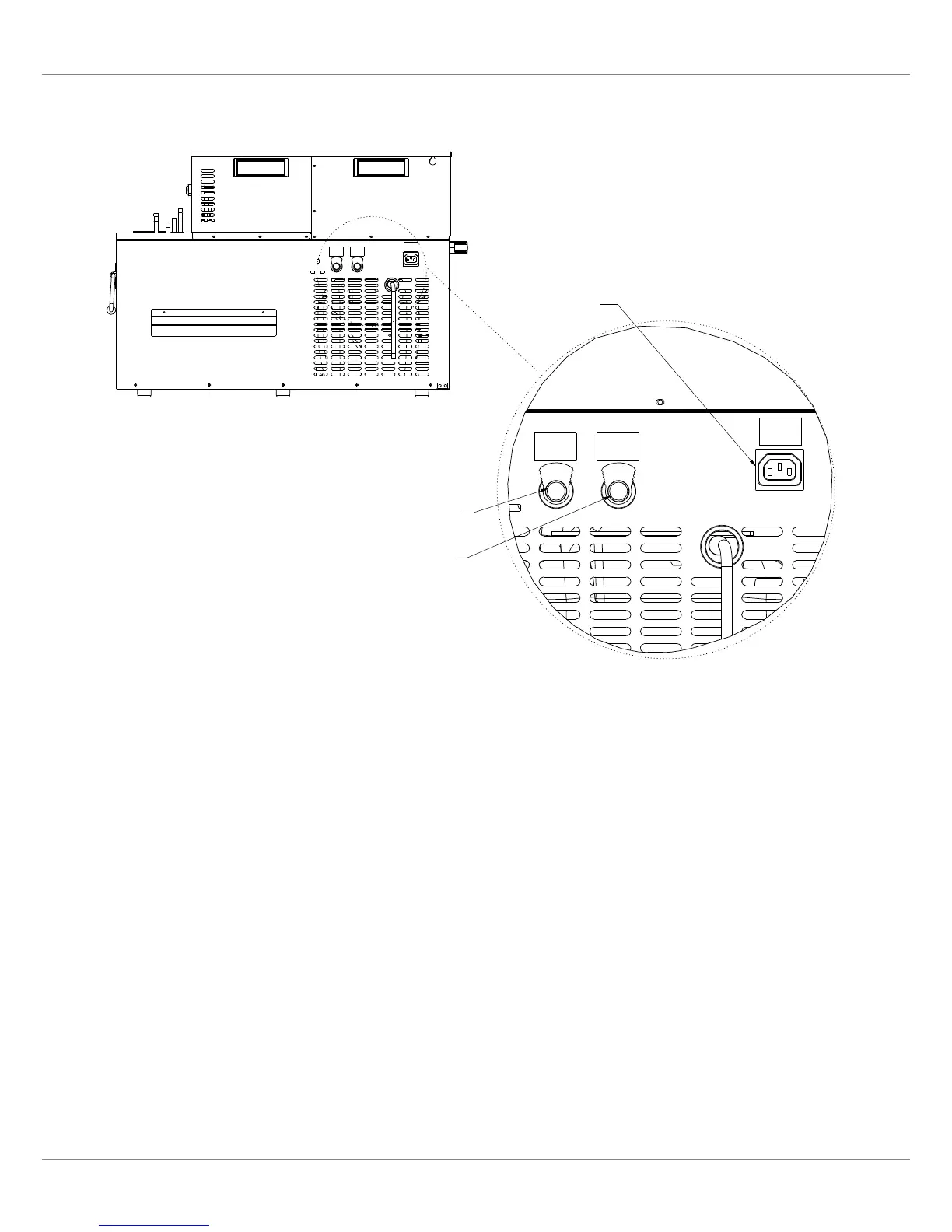

COOLANT
FLOW
COOLANT
RETURN
GLYCOL
POWER
240V
COOLANT
FLOW
COOLANT
RETURN
GLYCOL
POWER
240V
POWER TO
GLYCOL MODULE
RE-CIRC RETURN
RE-CIRC FLOW
