Multiplex Hyper Warwick R290 User Manual

30
Section 5
11-1000-xx Icecore 10 Integral (Cold Carbonated)
11-1001-xx Icecore 10 Water Cooled (Cold Carbonated)

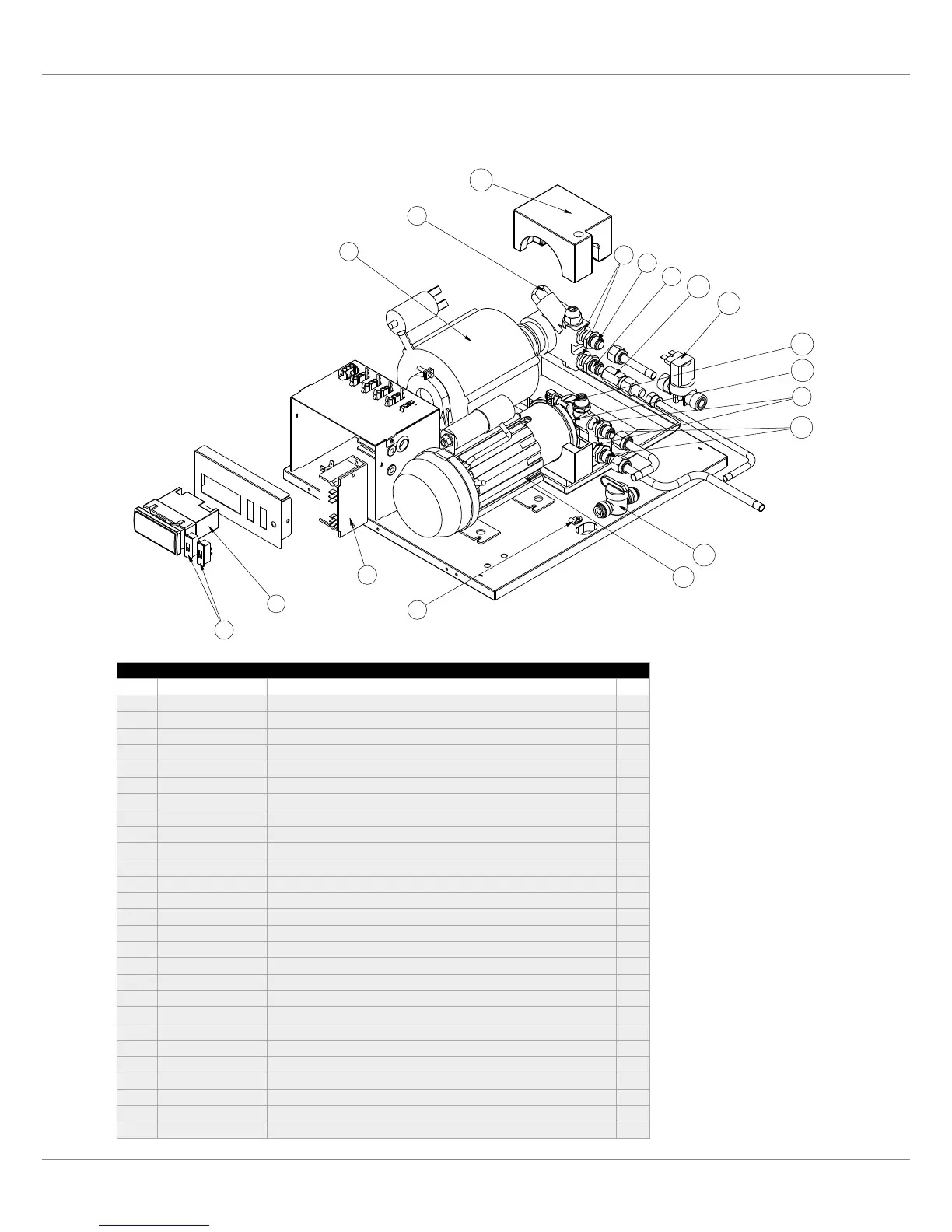

ICECORE 10 (COLD CARBONATED)
REF PART No. DESCRIPTION QTY
1 PI56613 DFX1E C\W SHORT PROBE 1
2 PI56242 BI-LEVEL CARBONATOR CONTROL 1
3 PI56363 SLIDER SWITCH 2
4 PI015558 P-CLIP FOR SECURING PROBE CABLE 1
5 MO014715 CARBONATOR PUMP MOTOR (230v - RPM 180W) 1
6 PU70172-00 CARBONATOR PUMP-HEAD (Brass 100 Gal/hr) 1
7 SG-33-0167-30 CARBONATOR PUMP-HEAD “INLET” FITTING 1
8 SG-42-0120 CARBONATOR PUMP-HEAD “OUTLET” FITTING 1
9 SG-74-0021-13 O-RING for CARB & SODA RECIRC FITTINGS 4
10 PU57208 MAG DRIVE PUMP 1
11 MO57785 MAG DRIVE SODA Re-CIRC PUMP MOTOR 1
12 SA57727 MAG DRIVE PUMP SPARES KIT 1
13 SG-33-0167-30 MAG DRIVE PUMP FLOW AND RETURN FITTING 2
14 PI57901 MAG DRIVE PUMP INSULATION 1
15 PI43762 JOHN GUEST 3/8 SHUT OFF VALVE 2
16 SG-42-0857-100 DOUBLE NON-RETURN VALVE 1
17 PI47525 SOLENOID VALVE - JG ENDS 1
18 MO57312 AGITATOR MOTOR ASSEMBLEY 1
19 PI47155 BATH FILLER PLUG 1
20 SG-83-0868 CO2 LOW PRESSURE SWITCH 1
21 OP73838 JOHN GUEST 3/8 BULKHEAD FITTINGS 2
22 OP73914 JOHN GUEST 3/8 LOCKING CLIP 10
23 PI49186 JOHN GUEST 5/16 LOCKING CLIP 13
24 SG-73-0027 RUBBER FOOT 6
25 SG-85-0256 AGITATOR PROPELLER BLADE 1
26 SA015644 AGIT MOTOR ASSEMBLY WITH PROP BLADE AND BRACKET 1
N/A PI016101 IC10 PACKAGING 1
P30 IC10 SPARES
14
6
5
7
1
3
2
4
11
15
13
12
10
17
16
8
9
9
