Multiplex ICECORETM 15 User Manual

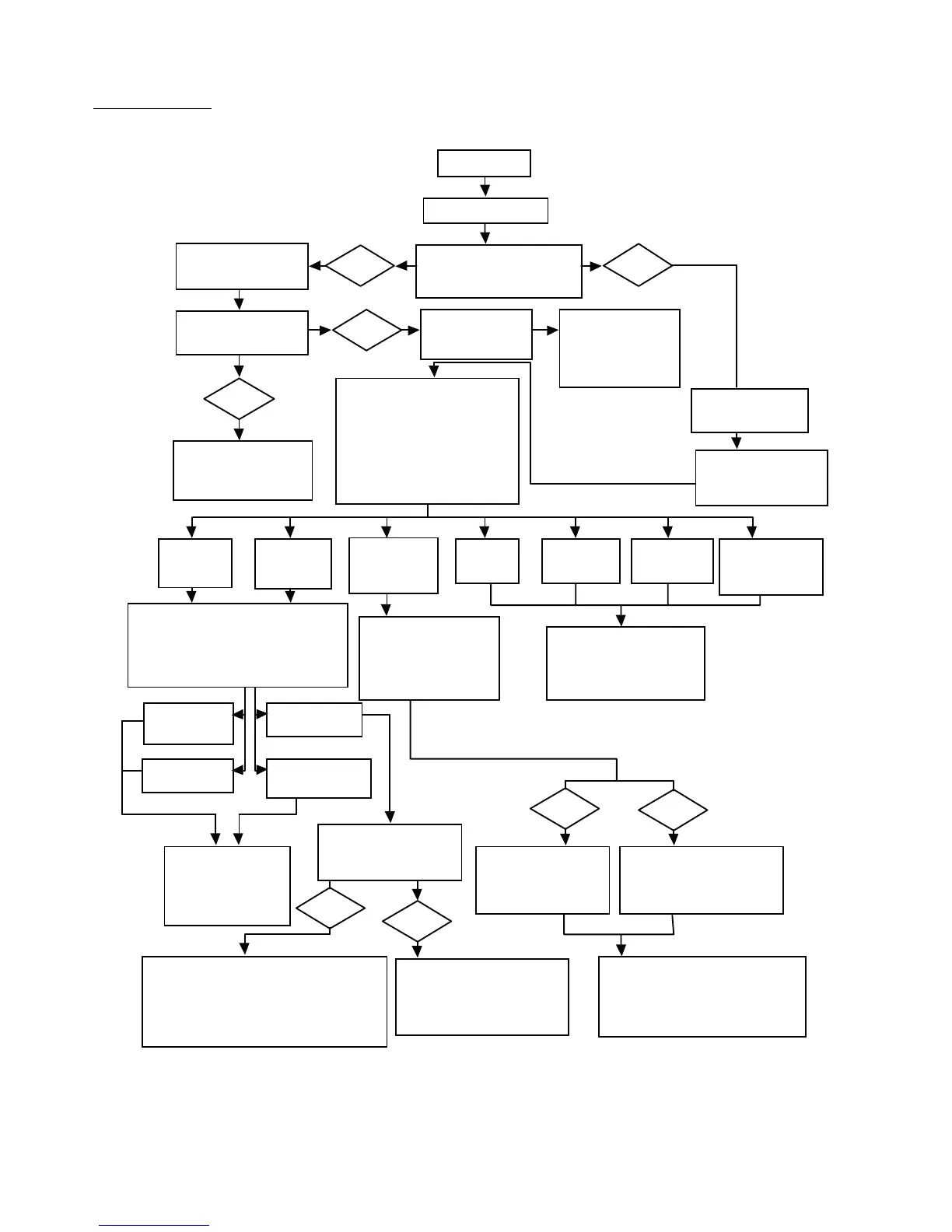

FLOW CHART 1
WARM DRINKS
34
Section 7
YES
YES
YES
NO
NO
YESNO
SYMPTON
WARM DRINKS
IS THE UNIT PLUGGED IN
AND SWITCHED ON

CHECK IF THERE IS ICE PRESENT
IN THE UNIT AND THAT THERE IS
WATER AGITATION


CHECK IF THE
CONDENSER AT
THE FRONT OF THE


CALL TECHNICAL TO
DIAGNOSE FAULT

SHOWN ON DISPLAY
ICE OK
AGITATION OK
ICE OK
NO AGITATION
CALL TECHNICIAN
STATING MESSAGE
SHOWN ON DISPLAY



IF FAULT PERSISTS, CALL TECHNICIAN
CALL TECHNICIAN TO
DIAGNOSE FAULT STATING

DISPLAY
CLEAN CONDENSER
USING A HAND



TEMPERATURE
IMPROVE VENTILATION TO

MESSAGE ON DISPLAY WILL SELF
RESET
IF FAULT PERSISTS, CALL
TECHNICIAN

RECENT HIGH DRINKS
DEMAND
NO ICE
AGITATION OK
NO ICE
NO AGITATION
PLUG UNIT IN &
SWITCH ON
DOES LCD DISPLAY

CHECK DISPLAY
FOR MESSAGES
ALLOW TIME FOR
UNIT TO MAKE ICE

CHECK DISPLAY
FOR MESSAGES
CALL TECHNICIAN TO
DIAGNOSE FAULT

MESSAGES LIST
1. HIGH RECIRC TEMP

3. CLEAN CONDENSER
4. OVER ICE
5. FRIDGE OVER TEMP
6. COMP TIMEOUT
7. HIGH REFR PRESS

1. HIGH
RECIRC
TEMP
2. HIGH

TEMP
3. CLEAN
CONDENSER
4. OVER
ICE
5. FRIDGE
OVER
TEMP
6. COMP
TIME OUT
7. HIGH REFR
PRESS

NO
