What controls
what?
For model boats and
cars the
most important
functions are directional
control
and
power (throttle)
control.
Here again there are
many different
views on
which stick should
control
which function.
In our examples
we assume the
tollowing arrangement:
.
The right-hand stick controls
the sleering
system and
operates on channel
3.
.
The left-hand stick
controls the
Dower
svstem
and operates
on channel
4.
In this example
no mixers are used.
lf
one
or other of
the
servos
works in the
wrong direction,
reverse il
under
the
menu
Doint
SEBYO.

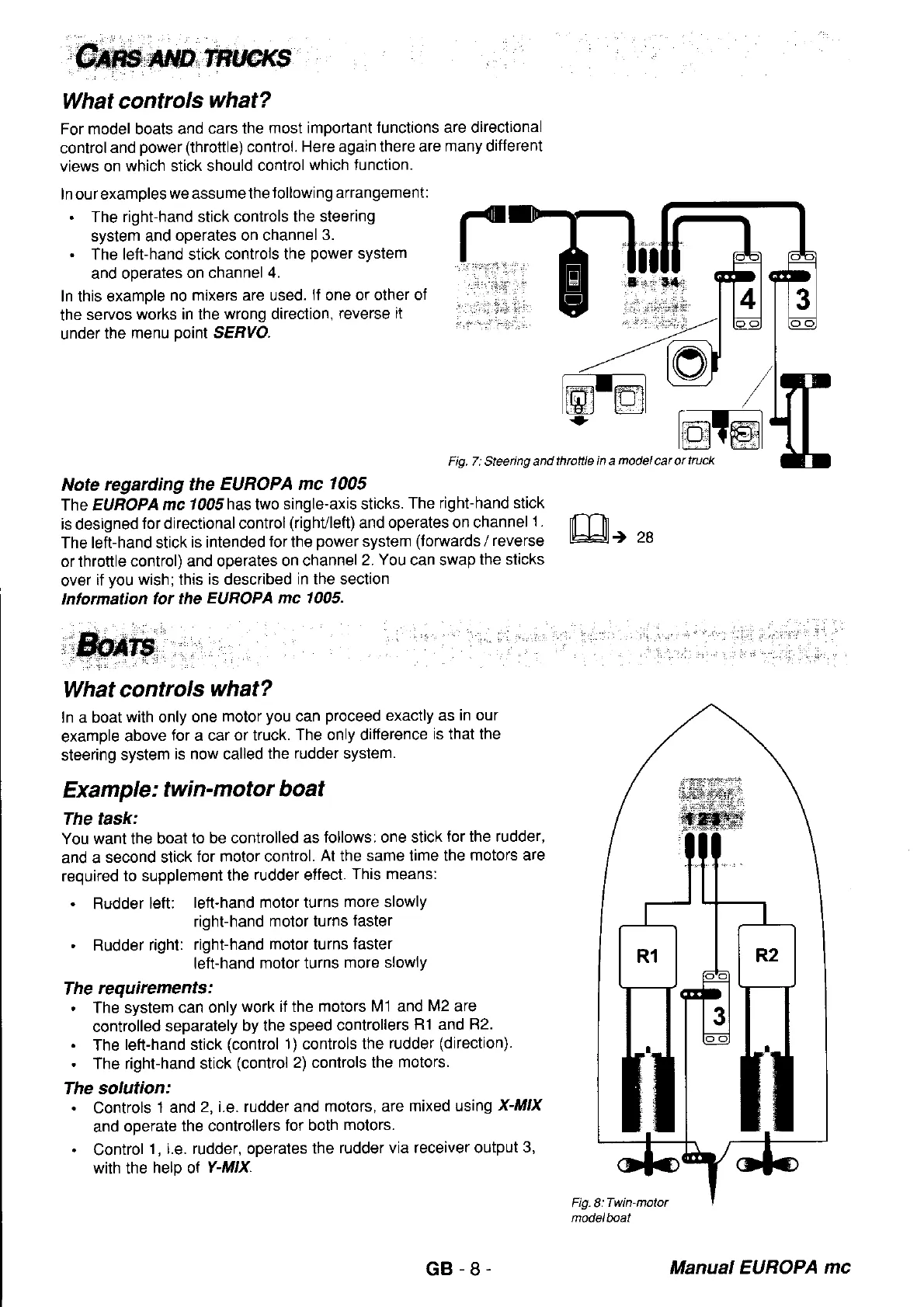

Fig.7:Steeing and
throftle in a
modelcarortruck
Note
regarding the
EUROPA mc
1005
The EUROPA
mc 1005
has
two
single-axis sticks.
The
right-hand stick
is designed
for directional control
(righvleft)
and
operates on channel
1 .
The lefl-hand stick
is intended
for
the
power
system
(torwards
/
reverse
or throttle
control) and operates
on channel
2. You can swap
the sticks
over
if
you
wish;this
is
described
in the section
Inlormation
for the
EUROPA mc 1(n5.
What controls
what?
In
a boat
with
only
one
motor
you
can
proceed
exactly as
in our
example
above
for
a car
or truck.
The only difference
is that the
steering
system
is now called
the rudder system.
Example
: twin-motor
boat
The task:
You want the boat
to be controlled
as
follows: one stick
for the rudder,
and a
second stick
for molor control.
At
the same
lime the
motors are
required
to supplement
the
rudder
effect.
This means:
.
Rudder
left:
left-hand motor turns
more slowly
right-hand
motor turns
faster
.
Rudder right:
right-hand
motor
lurns
faster
left-hand
motor turns
more slowlY
The
requirements:
.
The system can
only
work if the motors
M1 and
M2
are
controlled
separately
by the speed
controllers
R1 and
82.
.
The
left-hand stick
(control 1)
controls
the
rudder
(direction).
.
The right-hand stick
(control
2) controls the
motors.
The solution:
.
Controls
1 and
2, i.e. rudder and
molors, are
mixed using
X-lüflX
and
operale
the controllers
for both
motors.
.
Control
1
,
i.e. rudder, operates
the
rudder via receiver output
3,
with
the
help ot
Y-MIX.
GB-8.
Manual EUROPA
mc
