Operation Instructions Power Peak
®
A4
12

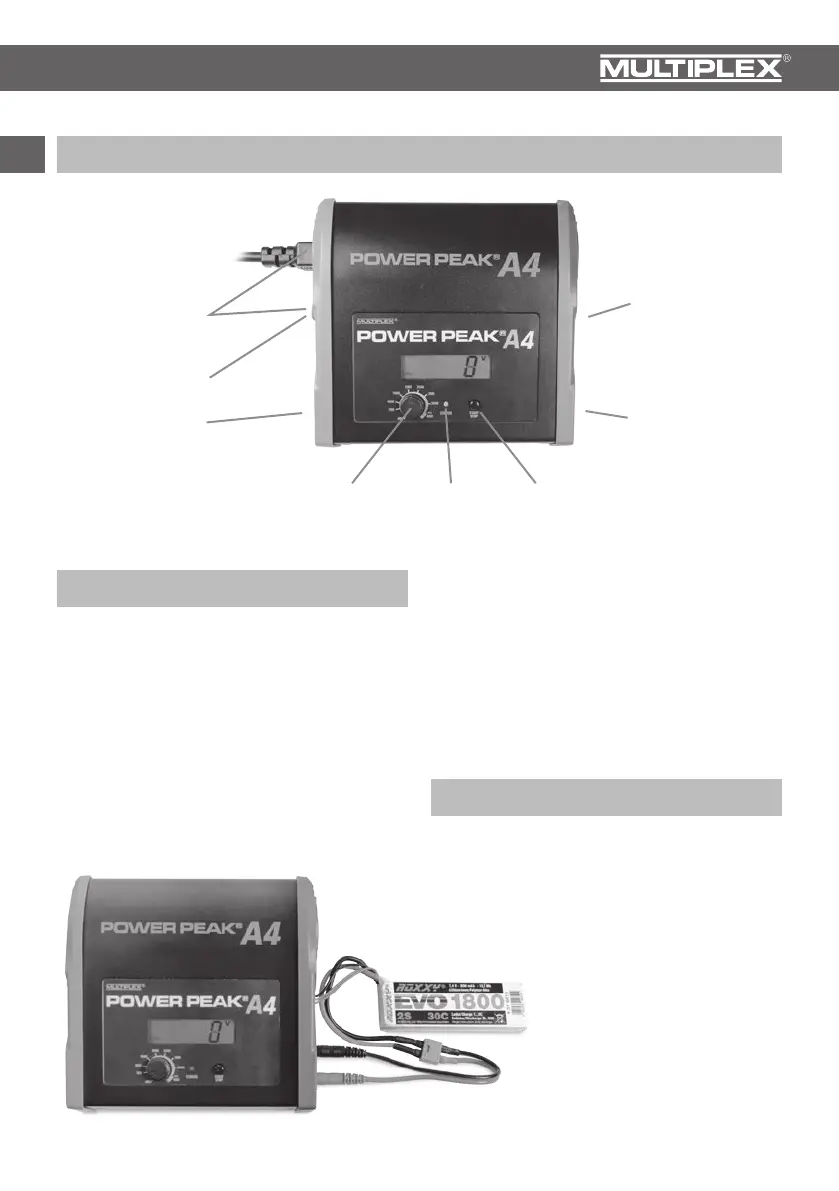

3. Controls
AC/DC operating
voltage connection
Battery
connection
sockets
red = +
black = -
Balancer
port
Regulator for
setting the
charging current
Start button Status LED
PC-Port for
Service
Power switch
4. Connection and Start-Up
The device can either be operated with 230 V AC
or 12 V DC.
To do so, use the power cable for AC operation
or the cable with XT-60 plug for DC operation
(possible in conjunction with the alligator clips)
included in the scope of delivery.
During connection, ensure correct polarity,
(red = + pole / black = - pole).
The device is protected against reverse polarity.
The charger is now operational.
The battery is connected to the battery connec-
tion sockets mounted on the right side with the
charging cable provided.
Ensure correct polarity when connecting
(red = + terminal/black = - terminal).
Although the charger output is protected against
polarity reversal and short-circuits they should,
nevertheless, be avoided and, if necessary,
immediately rectified.
5. Selecting Type of Battery
The corresponding type of battery must be set
after switching on the charger. For this pur-
pose, with the battery not connected, press the
„START“ button on the charger, until the required
type of battery is shown in the display.
