NOTE: See Pallet #3 for Multiush components, Page 10.

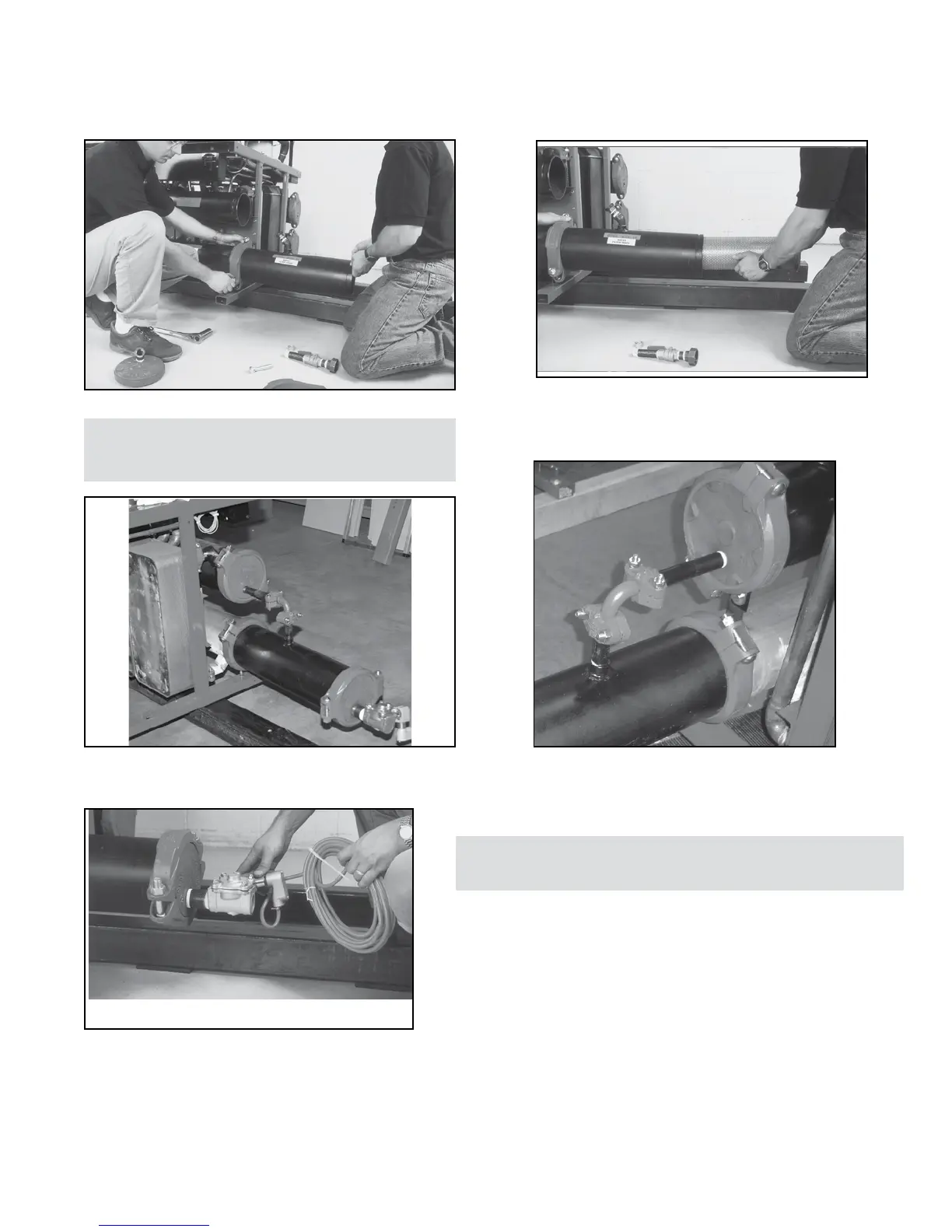

1. Attach Multiush pipe to module header pipe. 2. Insert 30-mesh lter into header.
3. Install large grooved pipe couplings. Leave loose - do not tighten. 4. Attach Multiush pipe ttings using grooved couplings
as shown.
5. Install manual or solenoid valve at end of Multiush header.
6. Tighten all ttings.
Multiush System Assembly
The following procedure describes installation of the Multiush automatic debris removal system. This system is
used periodically to remove dirt and debris from the from the chiller heat exchangers.
Leak Testing
After all piping connections are complete, make a static leak pressure test and seal
any leaks. When the leak test has proved satisfactory, start the chiller system pumps
and purge any air from the system. Seal any remaining leaks before proceeding.
NOTE: Before leak testing make sure the four sensor wells have been installed.
