22
Module Assembly - Total Access™ Modules

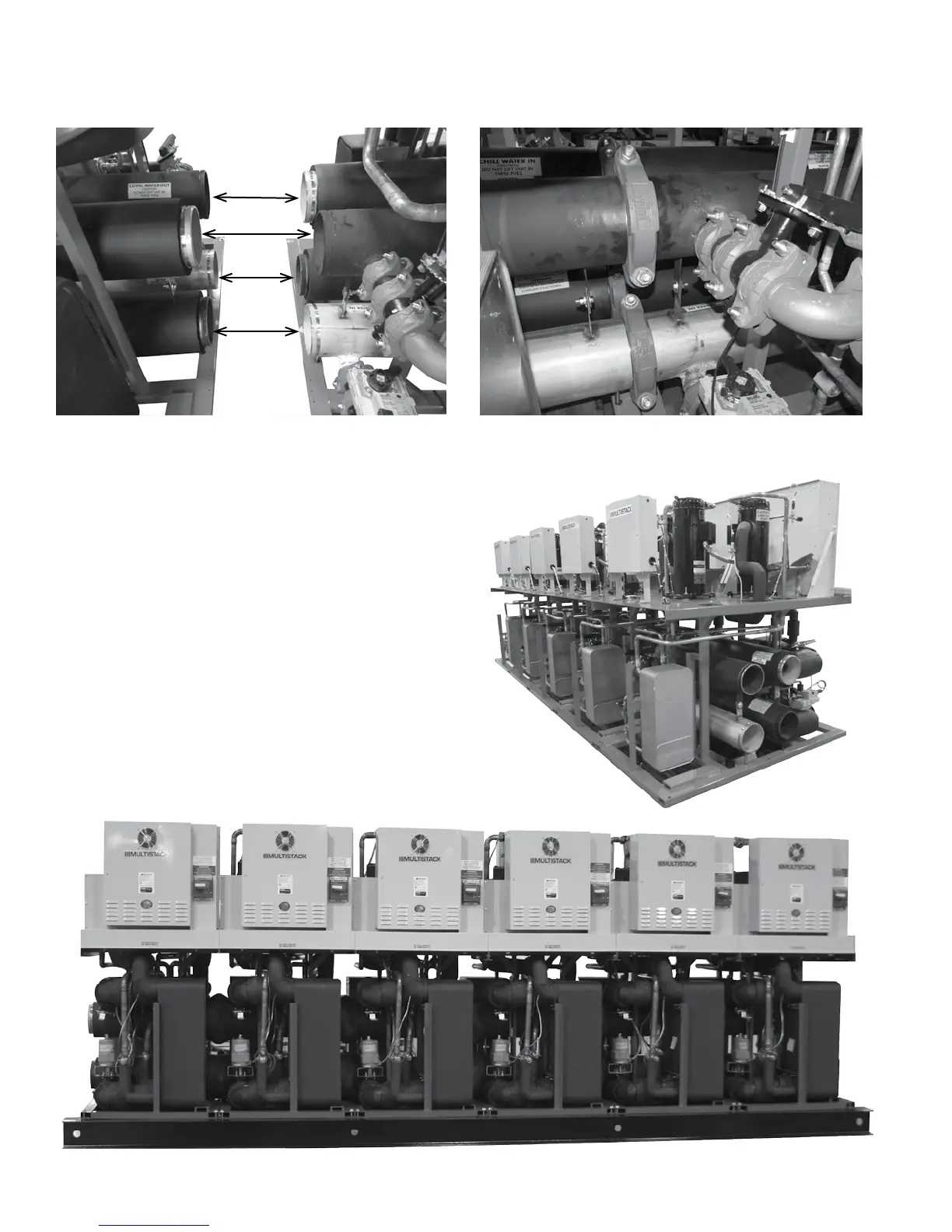

Evaporator side view of Multistack Total Access™ modules. (Optional enclosure panels not shown.)
Multistack Total Access modular chillers are assembled into chiller arrays in the same manner as non-Total Access modules as shown on Pgs. 19-21.
Grooved ange water connections on Total Access chiller modules
joined into a chiller array.
Condenser side view of Total
Access chiller modules assem-
bled into a chiller array. .
