Attaching the MultiConnect to a Fixed Location
The MultiConnect is design to be used on the desktop or to be
panel-mounted. To attach the brackets for panel-mounting, following
these steps:

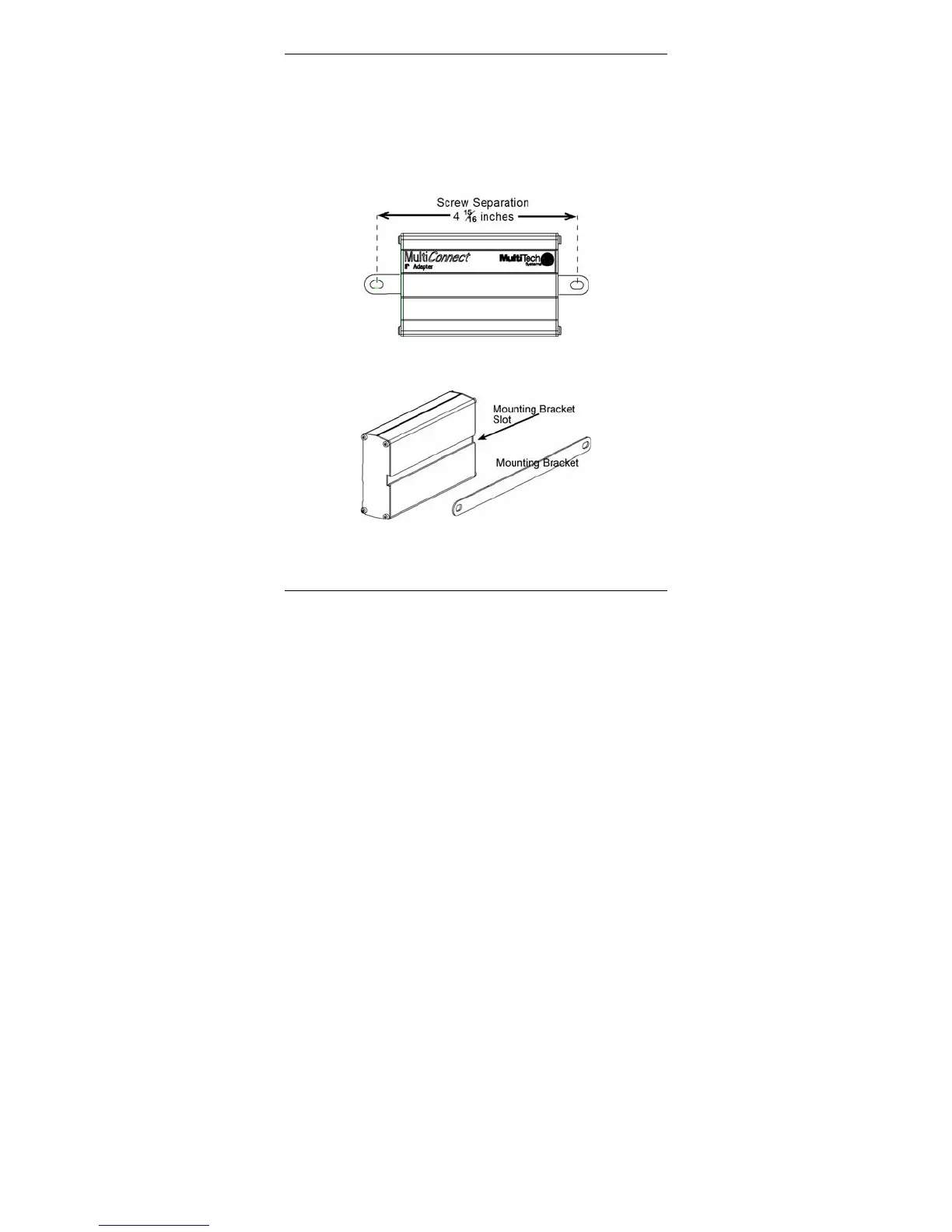

1. Typically, the MultiConnect is mounted against a flat surface with
two mounting screws. Drill the mounting holes at the desired
mounting location. The mounting holes must be separated by 4-
15/16 inches center-to-center.
2. To attach the brackets to the MultiConnect, slide the mounting
brackets into the corresponding slots on the back of the
MultiConnect chassis.
3. Attach the device to the surface with two screws.
