Multitech MultiConnect rCell 100 Series Hardware Guide

PRODUCT OVERVIEW
MultiConnect
®
rCell 100 MTR-LTE Hardware Guide 9
Side Panel Connectors
The device has connectors on both sides of the housing. The right side of the device contains a SIM card holder, a
reset button, a GPS antenna connector, and a cellular-auxiliary antenna connector pair. Depending on the model of
your device, the GPS antenna connector may or may not be present.

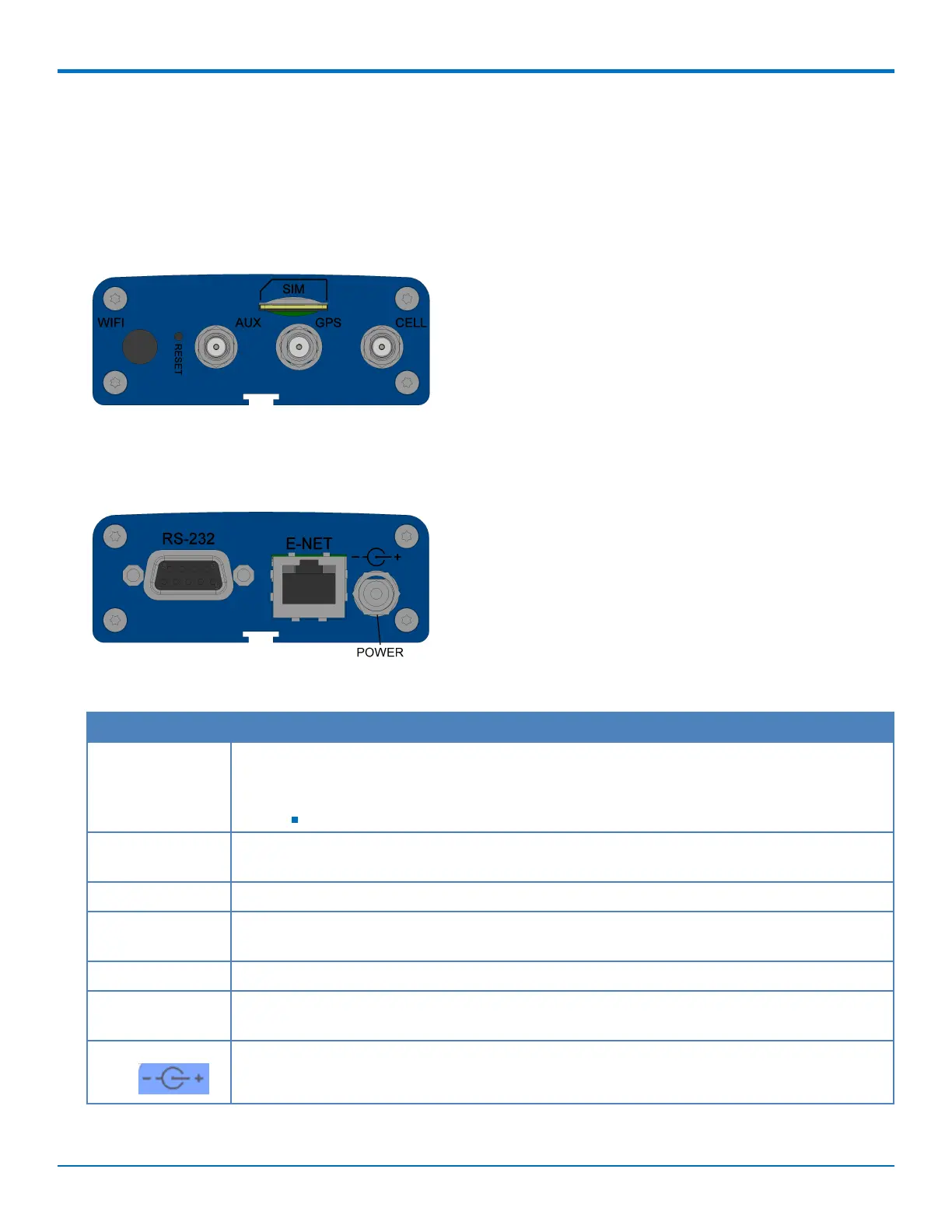

The following shows the right side panel of the device:
The following shows the left side panel of the device. It includes an RS-232 connector, an Ethernet connector, and
the power receptacle.
The following table describes the items on the two side panels:
Label Description
CELL, AUX Cellular antenna inputs. Use with the 2 Laird LTE DBA6927C1-FSMAM antennas or (for the
LEU1 only) with the 2 Wieson Technologies LTE GY115HT467-017 supplied with the device if
ordered as a bundle.
CELL - Primary. AUX - Diversity.
GPS GPS antenna input. Use with the Trimble GPS antenna 66800-52 supplied with the device
when ordered as a bundle. Used only on the B08 models.
SIM Receptacle for a SIM card (Subscriber Identity Module).
RESET Resets the device. Refer to Resetting the Device or Resetting User Defined Settings to the
Device.
RS-232 DE 9-pin, female-D Sub through-hole connector.
E-NET RJ-45 receptacle for standard Ethernet 10/100 Base-T (RJ-45 connecter has two Ethernet
LEDs).
Power 7-32 VDC power receptacle for provided power cord. The device uses a minimum 7V 1.0A
power supply.
