MUNIC C4D-4G4USAA V8+ - Page 10

9

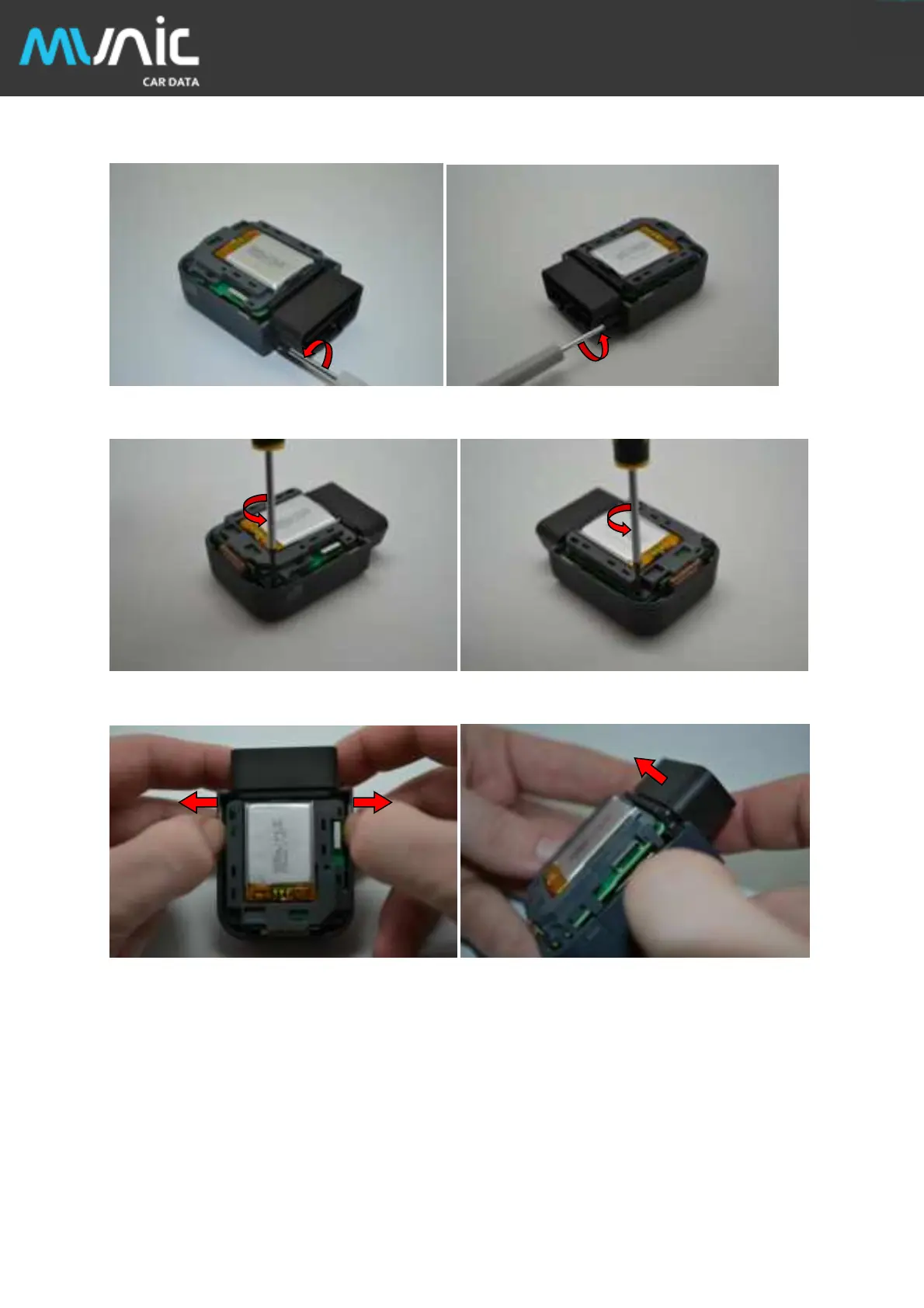

Remove the screw located on each side of the OBD connector using T4 Torx screwdriver
Remove the screw located on the PCB at the bottom of the device using T6 Torx screwdriver
Move apart the side of the device first and then pull the OBD connector out of the body.
1
2
1
