2. Hardware description

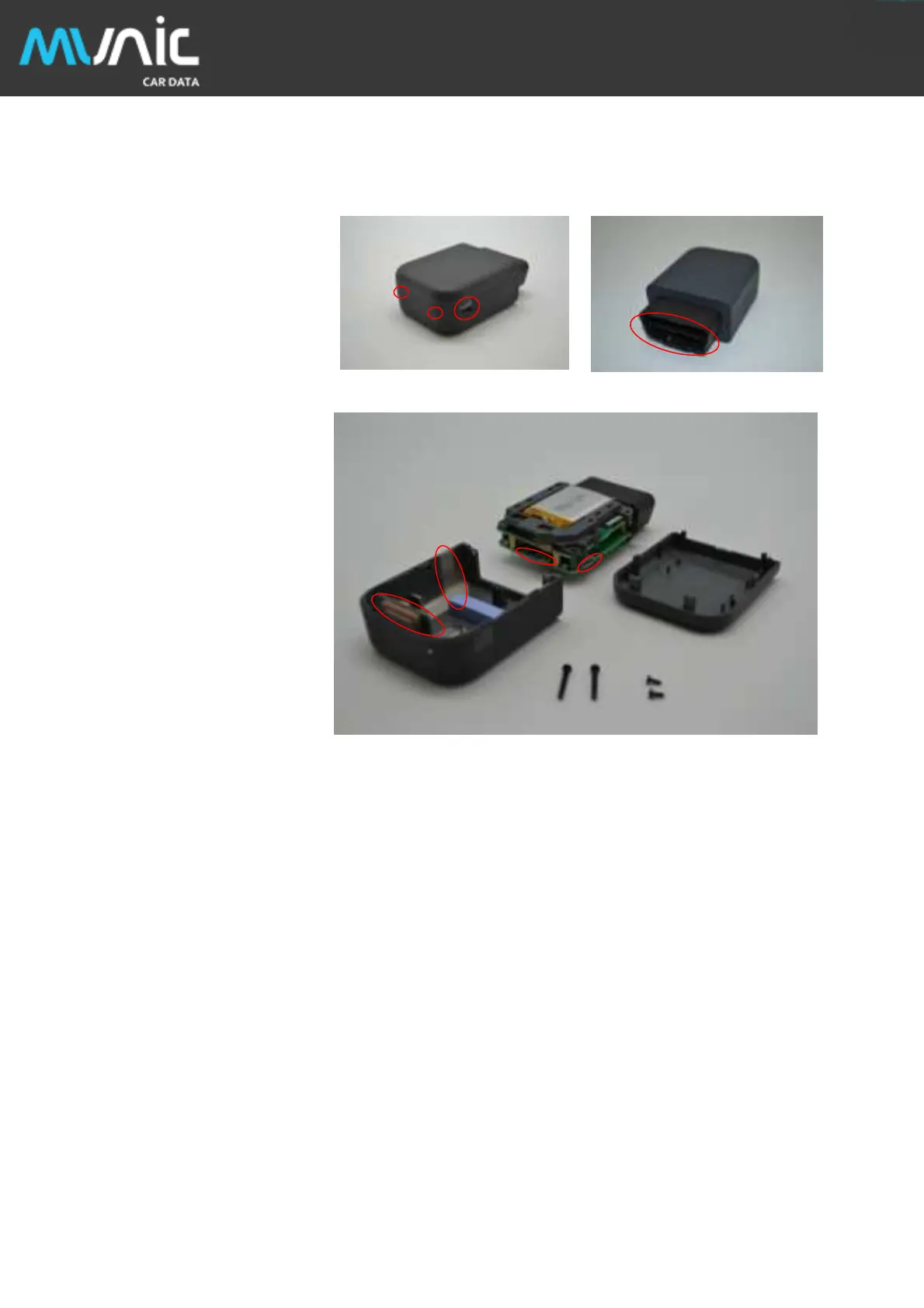

2.1. External view
2.2. Internal view
1 : OBD connector
2 : micro USB connector
3 : signal bicolor led
4 : power bicolor led
2 : micro USB connector
5 : Modem antenna
6 : GNSS antenna
7 : nano SIM holder*
8 : Internal battery**
* SIM holder can be absent if device have eSIM chip.
** Please read warnings section at the beginning of the installation
guide.
