8. Clean the filter clamps and filter box using a vacuum cleaner.
9. Put the new filter between the filter clamps and push the filter fully into the filter box . Make sure that the
arrow on the filter points in the same direction as the air stream (5).
10. Pull the upper and lowe r filter clamp out towards the opening in the filter box, until the clamps click into
a locked position (6).
11. Install the door (7).
12. Tighten the lock (8).
6
7
5
8

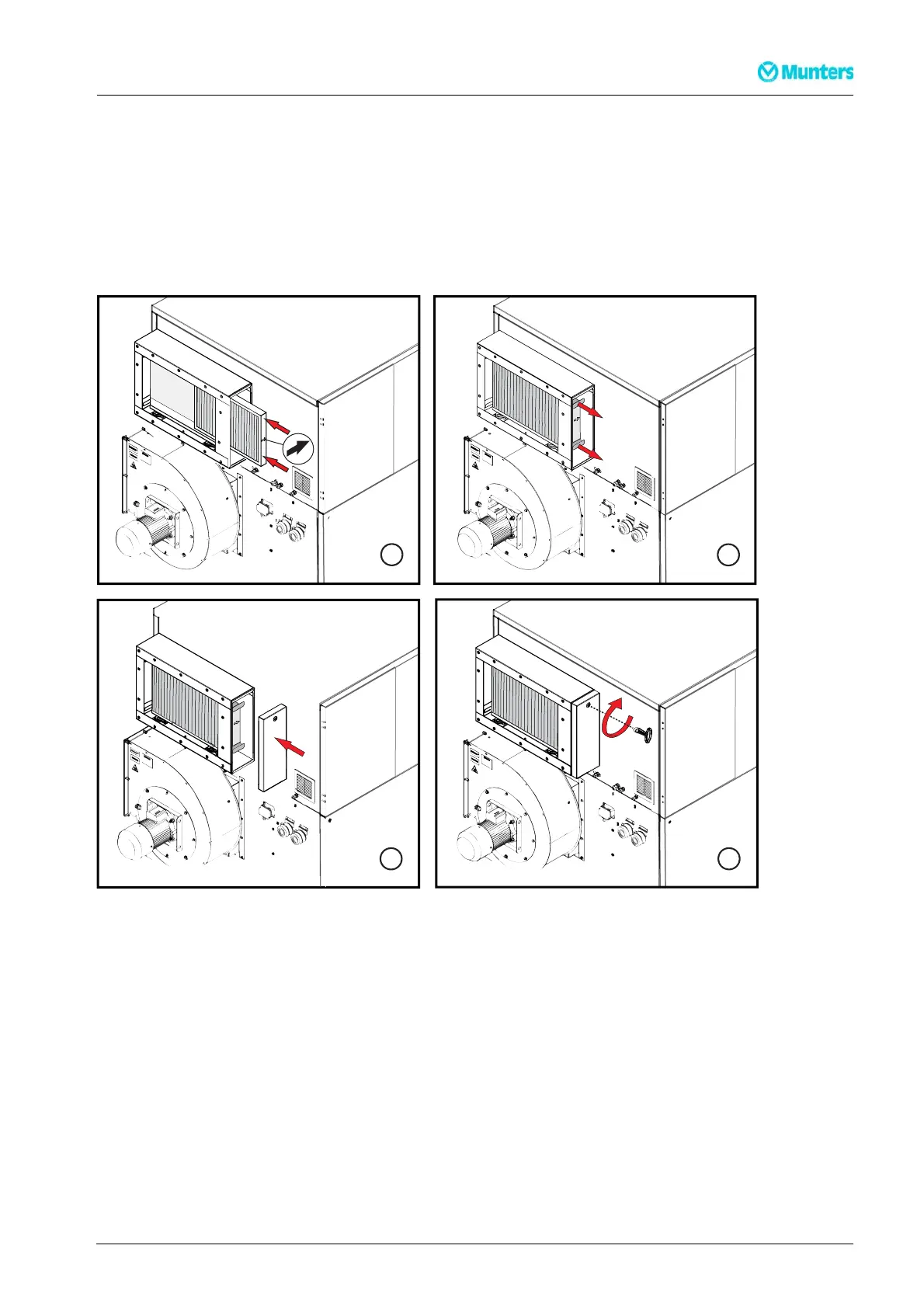

Figure 6.3
