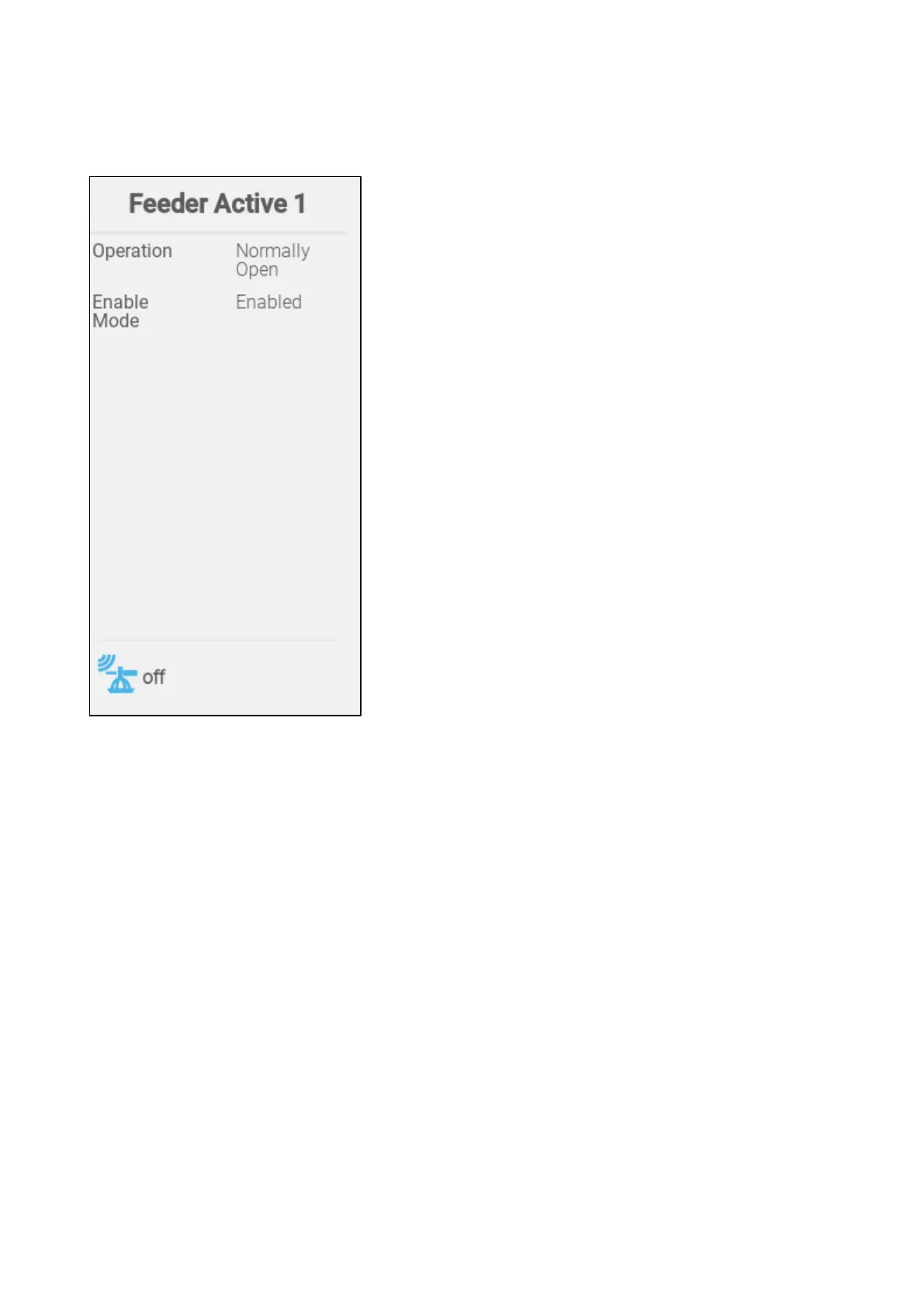

7.13.4

EFINING THE

EEDER

CTIVE

ENSORS

 Define up to four digital input ports as feeder active (refer to Mapping Devices, page 44).

Operation: Select if the relay is normally open or normally close.

Enable Mode: Enable/disable the sensor.
