FBS MOTOR (MFX-2050/1450 only)

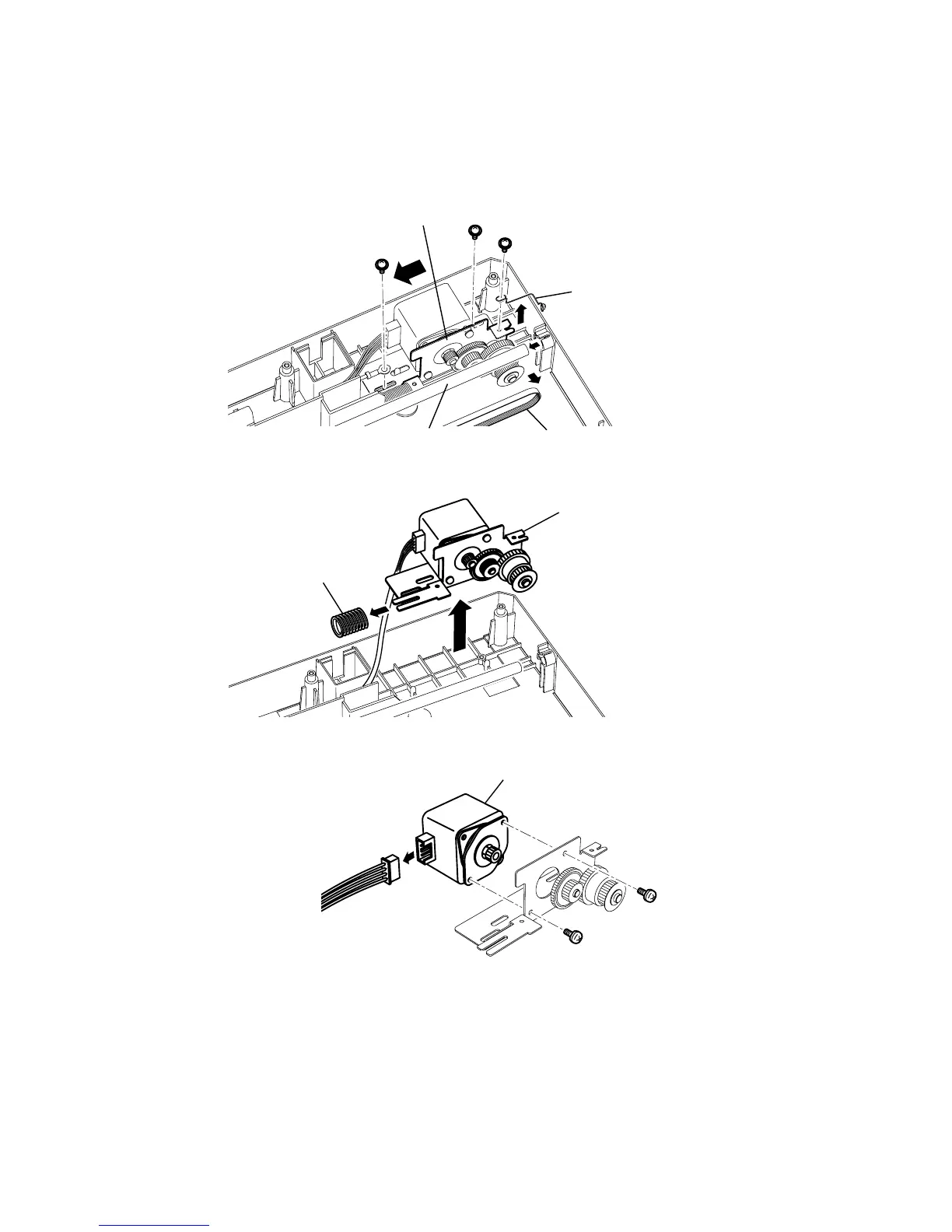

1) Remove the Cover platen. (See page 5-7)
2) Remove the Cover top. (See page 5-13)
3) Remove three Bracket motor FBS mounting screws.
4) Remove the Shaft guide, and then remove the spring C FG.
5) Slide the Bracket motor FBS, and then remove the belt.
BeltShaft guide
Bracket motor FBS
Spring C FG
6) Remove the Spring C tension, and then remove the Bracket motor FBS.
Spring C Tension
Bracket motor FBS
7) Remove two FBS motor mounting screw and disconnect the harness, and then remove the FBS MOTOR.
FBS Motor
