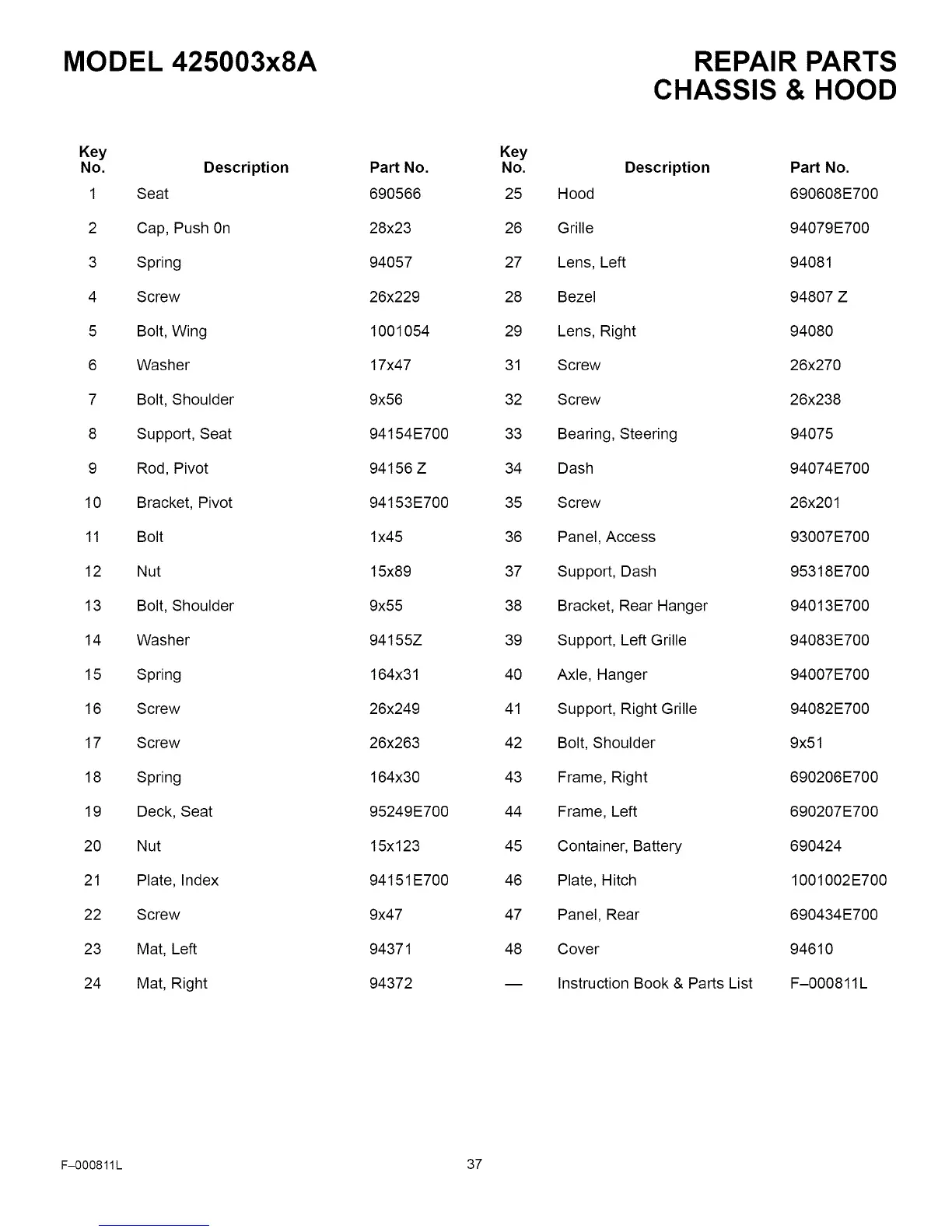

MODEL 425003x8A REPAIR PARTS
CHASSIS & HOOD
Key
No. Description
1 Seat
2 Cap, Push On
3 Spring
4 Screw
5 Bolt, Wing
6 Washer
7 Bolt, Shoulder
8 Support, Seat
9 Rod, Pivot
10 Bracket, Pivot
11 Bolt
12 Nut
13 Bolt, Shoulder
14 Washer
15 Spring
16 Screw
17 Screw
18 Spring
19 Deck, Seat
20 Nut
21 Plate, Index
22 Screw
23 Mat, Left
24 Mat, Right
Part No.
690566
28x23
94057
26x229
1001054
17x47
9x56
94154E700
94156 Z
94153E700
lx45
15x89
9x55
94155Z
164x31
26x249
26x263
164x30
95249E700
15x123
94151E700
9x47
94371
94372
Key
No. Description Part No.
25 Hood 690608E700
26 Grille 94079E700
27 Lens, Left 94081
28 Bezel 94807 Z
29 Lens, Right 94080
31 Screw 26x270
32 Screw 26x238
33 Bearing, Steering 94075
34 Dash 94074E700
35 Screw 26x201
36 Panel, Access 93007E700
37 Support, Dash 95318E700
38 Bracket, Rear Hanger 94013E700
39 Support, Left Grille 94083E700
40 Axle, Hanger 94007E700
41 Support, Right Grille 94082E700
42 Bolt, Shoulder 9x51
43 Frame, Right 690206E700
44 Frame, Left 690207E700
45 Container, Battery 690424
46 Plate, Hitch 1001002E700
47 Panel, Rear 690434E700
48 Cover 94610
