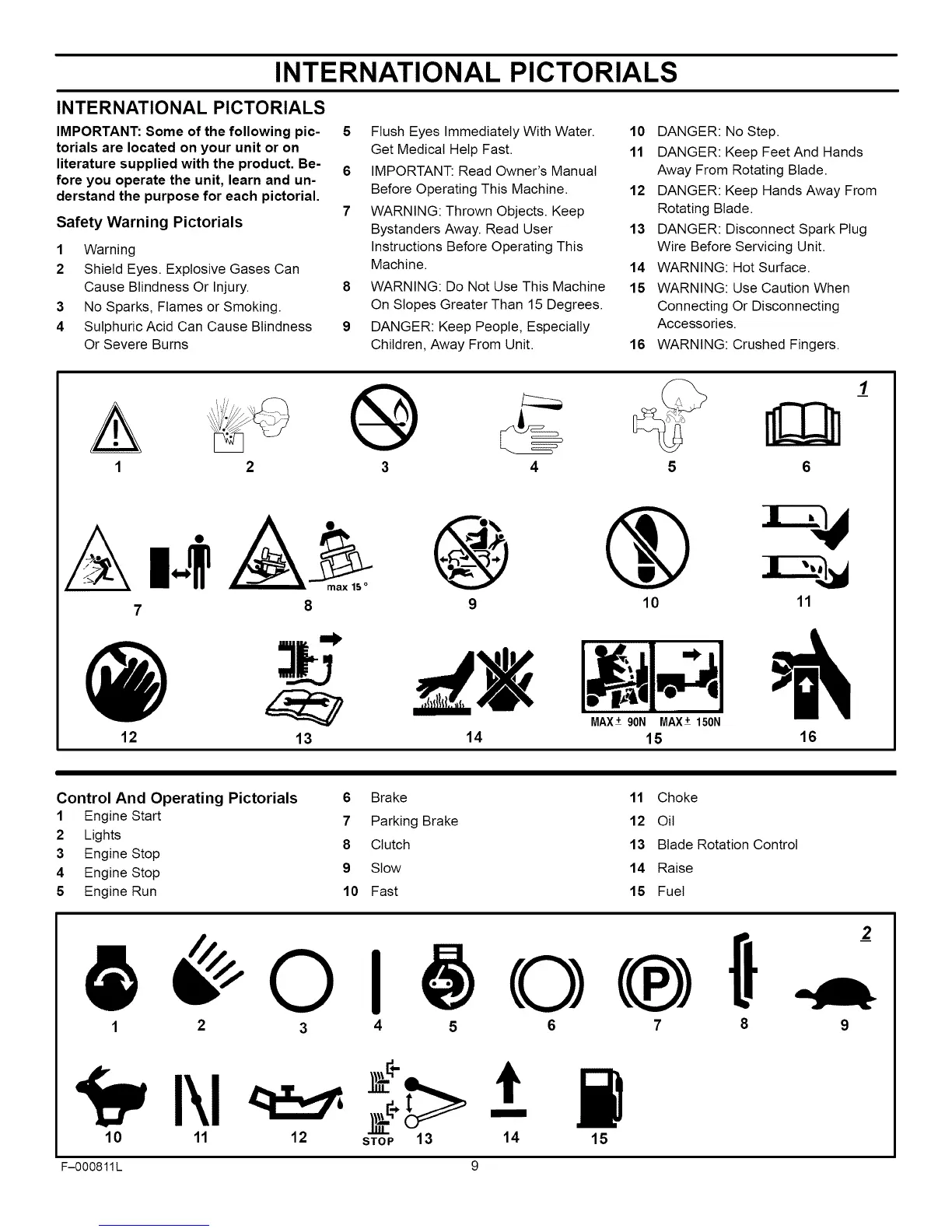

INTERNATIONAL PICTORIALS
INTERNATIONAL PICTORIALS
IMPORTANT: Some of the following pic-
torials are located on your unit or on
literature supplied with the product. Be-
fore you operate the unit, learn and un-
derstand the purpose for each pictorial.
Safety Warning Pictorials
1 Warning
2 Shield Eyes. Explosive Gases Can
Cause Blindness Or Injury.
3 No Sparks, Flames or Smoking.
4 Sulphuric Acid Can Cause Blindness
Or Severe Burns
5 Flush Eyes Immediately With Water.
Get Medical Help Fast.
6 IMPORTANT: Read Owner's Manual
Before Operating This Machine.
7 WARNING: Thrown Objects. Keep
Bystanders Away. Read User
Instructions Before Operating This
Machine.
8 WARNING: Do Not Use This Machine
On Slopes Greater Than 15 Degrees.
9 DANGER: Keep People, Especially
Children, Away From Unit.
10 DANGER: No Step.
11 DANGER: Keep Feet And Hands
Away From Rotating Blade.
12 DANGER: Keep Hands Away From
Rotating Blade.
13 DANGER: Disconnect Spark Plug
Wire Before Servicing Unit.
14 WARNING: Hot Surface.
15 WARNING: Use Caution When
Connecting Or Disconnecting
Accessories.
16 WARNING: Crushed Fingers.
@
6
_/
A Ab
7 8
12 13
, @
9 10 11
MAX± 90N MAX±150N
14 15 16
Control And Operating Pictorials 6 Brake 11 Choke
1 Engine Start 7 Parking Brake 12 Oil
2 Lights 8 Clutch 13 Blade Rotation Control
3 Engine Stop
4 Engine Stop 9 Slow 14 Raise
5 Engine Run 10 Fast 15 Fuel
1 2 3 4 5 6 7 8
10 11 12
t
,,-,>- i
STOP 13 14 15
2
F-000811L 9
