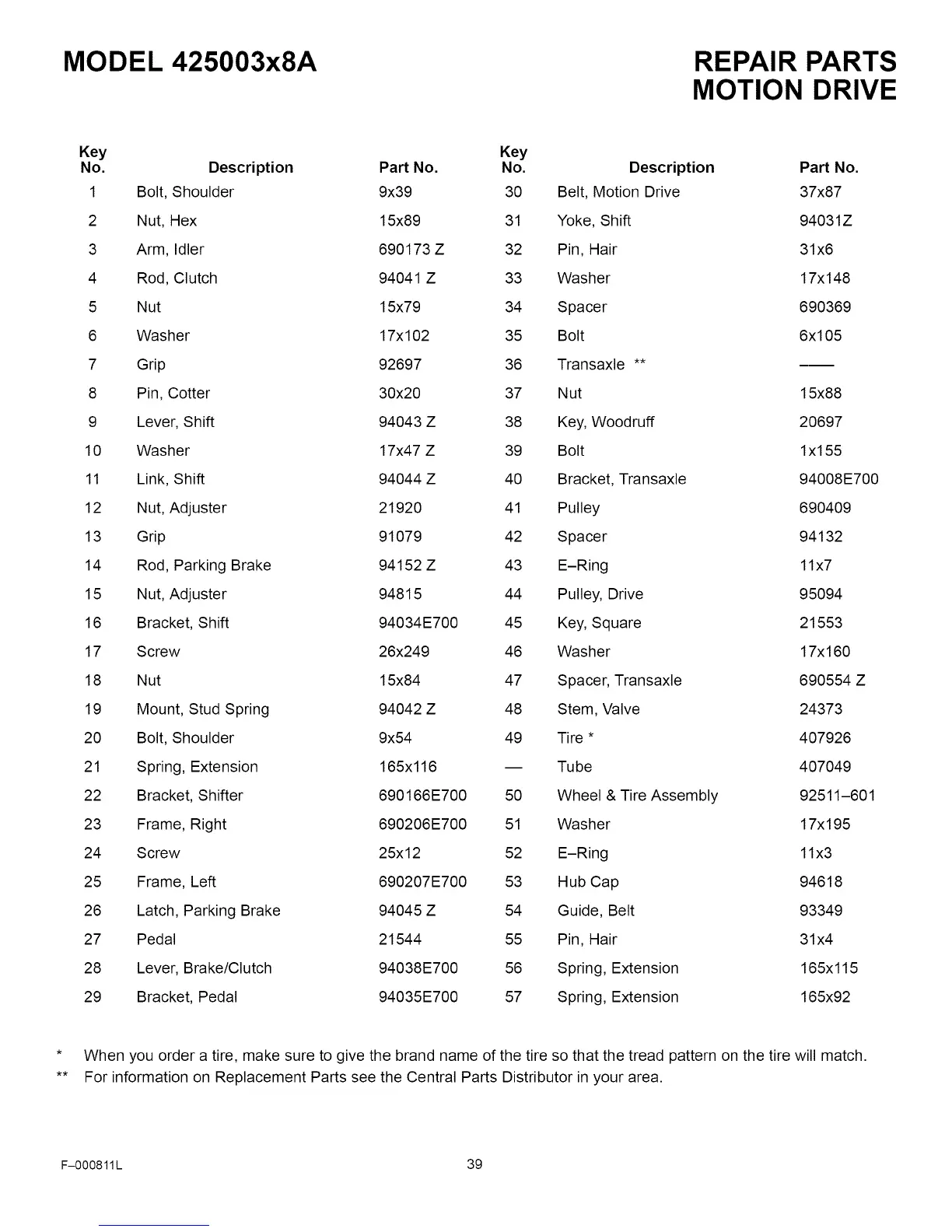

Murray 425003X8A - Page 39

MODEL 425003x8A REPAIR PARTS
MOTION DRIVE
Key Key
No. Description Part No. No. Description Part No.
1 Bolt, Shoulder 9x39 30 Belt, Motion Drive 37x87
2 Nut, Hex 15x89 31 Yoke, Shift 94031Z
3 Arm, Idler 690173 Z 32 Pin, Hair 31x6
4 Rod, Clutch 94041 Z 33 Washer 17x148
5 Nut 15x79 34 Spacer 690369
6 Washer 17x102 35 Bolt 6x105
7 Grip 92697 36 Transaxle **
8 Pin, Cotter 30x20 37 Nut 15x88
9 Lever, Shift 94043 Z 38 Key, Woodruff 20697
10 Washer 17x47 Z 39 Bolt lx155
11 Link, Shift 94044 Z 40 Bracket, Transaxle 94008E700
12 Nut, Adjuster 21920 41 Pulley 690409
13 Grip 91079 42 Spacer 94132
14 Rod, Parking Brake 94152 Z 43 E-Ring 11x7
15 Nut, Adjuster 94815 44 Pulley, Drive 95094
16 Bracket, Shift 94034E700 45 Key, Square 21553
17 Screw 26x249 46 Washer 17x 160
18 Nut 15x84 47 Spacer, Transaxle 690554 Z
19 Mount, Stud Spring 94042 Z 48 Stem, Valve 24373
20 Bolt, Shoulder 9x54 49 Tire * 407926
21 Spring, Extension 165x116 -- Tube 407049
22 Bracket, Shifter 690166E700 50 Wheel & Tire Assembly 92511-601
23 Frame, Right 690206E700 51 Washer 17x195
24 Screw 25x12 52 E-Ring 11x3
25 Frame, Left 690207E700 53 Hub Cap 94618
26 Latch, Parking Brake 94045 Z 54 Guide, Belt 93349
27 Pedal 21544 55 Pin, Hair 31x4
28 Lever, Brake/Clutch 94038E700 56 Spring, Extension 165x115
29 Bracket, Pedal 94035E700 57 Spring, Extension 165x92
* When you order a tire, make sure to give the brand name of the tire so that the tread pattern on the tire will match.
** For information on Replacement Parts see the Central Parts Distributor in your area.
F-000811L 39
