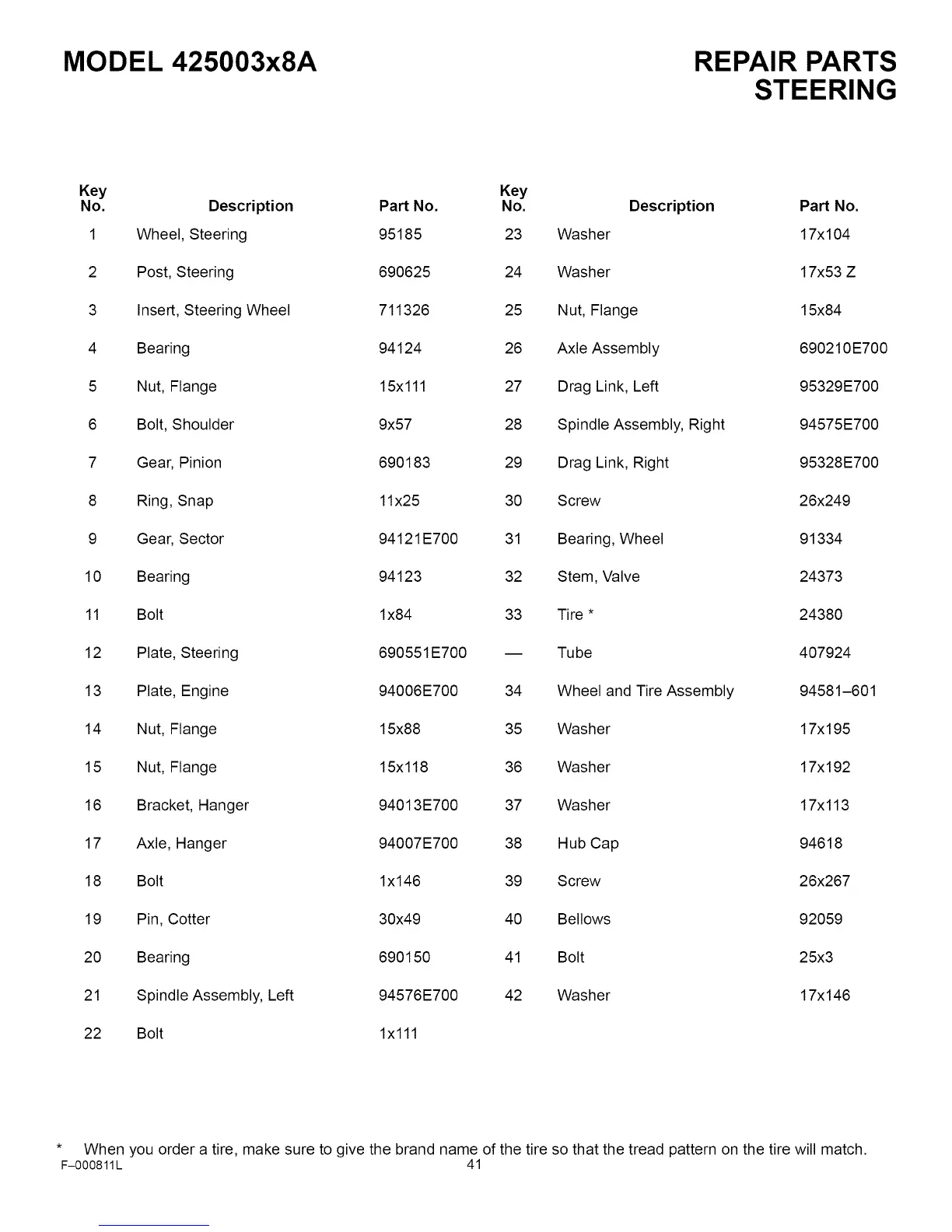

MODEL 425003x8A REPAIR PARTS
STEERING
Key Key
No. Description Part No. No. Description Part No.
1 Wheel, Steering 95185 23 Washer 17xl 04
2 Post, Steering 690625 24 Washer 17x53 Z
3 Insert, Steering Wheel 711326 25 Nut, Flange 15x84
4 Bearing 94124 26 Axle Assembly 690210E700
5 Nut, Flange 15x111 27 Drag Link, Left 95329E700
6 Bolt, Shoulder 9x57 28 Spindle Assembly, Right 94575E700
7 Gear, Pinion 690183 29 Drag Link, Right 95328E700
8 Ring, Snap 1lx25 30 Screw 26x249
9 Gear, Sector 94121E700 31 Bearing, Wheel 91334
10 Bearing 94123 32 Stem, Valve 24373
11 Bolt lx84 33 Tire * 24380
12 Plate, Steering 690551E700 -- Tube 407924
13 Plate, Engine 94006E700 34 Wheel and Tire Assembly 94581-601
14 Nut, Flange 15x88 35 Washer 17x195
15 Nut, Flange 15x118 36 Washer 17x192
16 Bracket, Hanger 94013E700 37 Washer 17x113
17 Axle, Hanger 94007E700 38 Hub Cap 94618
18 Bolt lx146 39 Screw 26x267
19 Pin, Cotter 30x49 40 Bellows 92059
20 Bearing 690150 41 Bolt 25x3
21 Spindle Assembly, Left 94576E700 42 Washer 17x146
22 Bolt lx111
* When you order a tire, make sure to give the brand name of the tire so that the tread pattern on the tire will match.
F-0 0 0811 L 41
