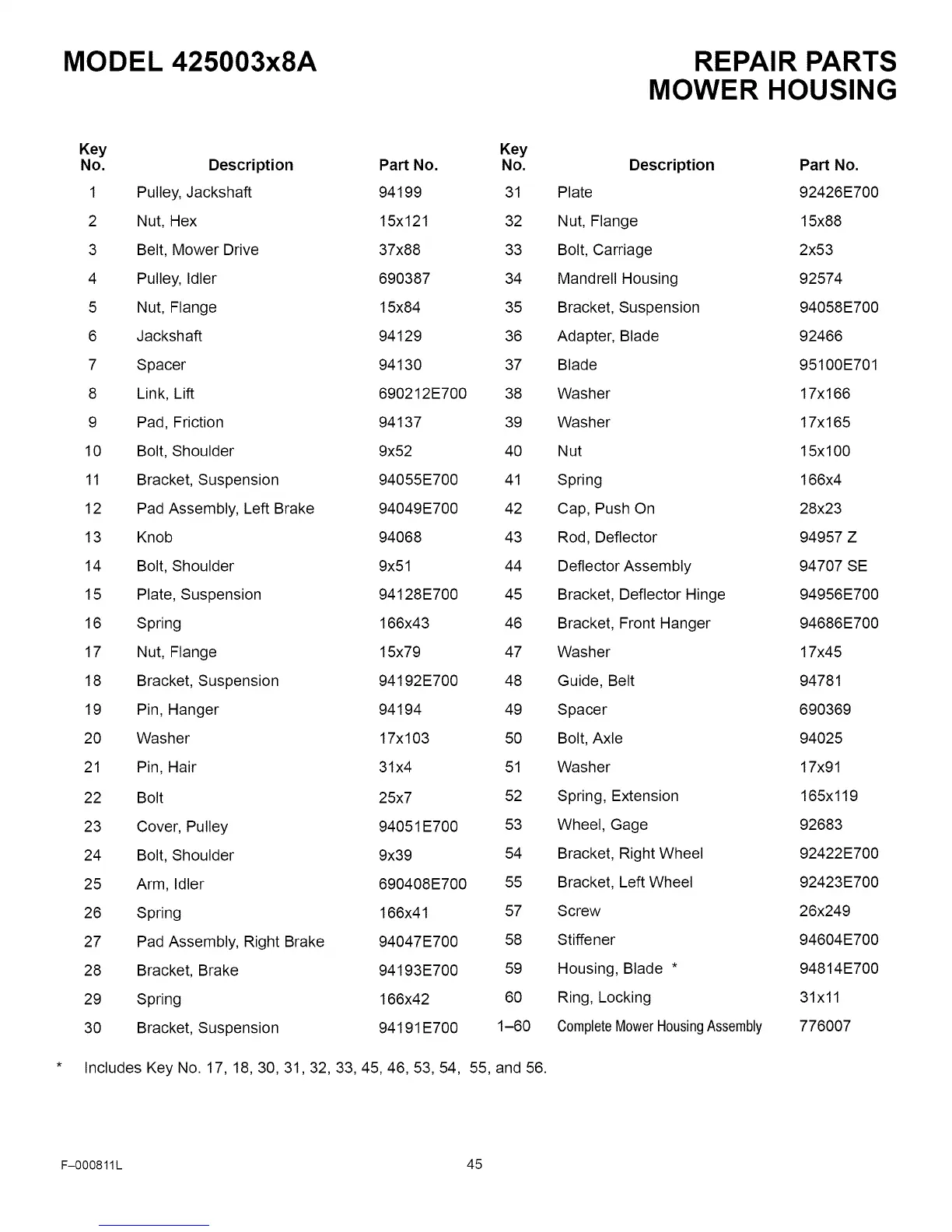

MODEL 425003x8A
REPAIR PARTS
MOWER HOUSING
Key Key
No. Description Part No. No.
1 Pulley, Jackshaft 94199 31
2 Nut, Hex 15x121 32
3 Belt, Mower Drive 37x88 33
4 Pulley, Idler 690387 34
5 Nut, Flange 15x84 35
6 Jackshaft 94129 36
7 Spacer 94130 37
8 Link, Lift 690212E700 38
9 Pad, Friction 94137 39
10 Bolt, Shoulder 9x52 40
11 Bracket, Suspension 94055E700 41
12 Pad Assembly, Left Brake 94049E700 42
13 Knob 94068 43
14 Bolt, Shoulder 9x51 44
15 Plate, Suspension 94128E700 45
16 Spring 166x43 46
17 Nut, Flange 15x79 47
18 Bracket, Suspension 94192E700 48
19 Pin, Hanger 94194 49
20 Washer 17x103 50
21 Pin, Hair 31x4 51
22 Bolt 25x7 52
23 Cover, Pulley 94051E700 53
24 Bolt, Shoulder 9x39 54
25 Arm, Idler 690408E700 55
26 Spring 166x41 57
27 Pad Assembly, Right Brake 94047E700 58
28 Bracket, Brake 94193E700 59
29 Spring 166x42 60
30 Bracket, Suspension 94191E700 1-60
Includes Key No. 17, 18, 30, 31,32, 33, 45, 46, 53, 54, 55, and 56.
Description Part No.
Plate 92426E700
Nut, Flange 15x88
Bolt, Carriage 2x53
Mandrell Housing 92574
Bracket, Suspension 94058E700
Adapter, Blade 92466
Blade 95100E701
Washer 17x166
Washer 17x165
Nut 15x100
Spring 166x4
Cap, Push On 28x23
Rod, Deflector 94957 Z
Deflector Assembly 94707 SE
Bracket, Deflector Hinge 94956E700
Bracket, Front Hanger 94686E700
Washer 17x45
Guide, Belt 94781
Spacer 690369
Bolt, Axle 94025
Washer 17x91
Spring, Extension 165x119
Wheel, Gage 92683
Bracket, Right Wheel 92422E700
Bracket, Left Wheel 92423E700
Screw 26x249
Stiffener 94604E700
Housing, Blade * 94814E700
Ring, Locking 3lx 11
CompleteMowerHousingAssembly 776007
F-000811L 45
