DEPTH REGULATOR LEVER
Tilling depth is controlled by the height of the depth
regulator lever.
To adjust tilling depth:
1. Remove detent pin.
2. Raise the depth regulator lever to position tines at
chosen tilling depth.
3. Align hole in depth regulator lever with hole in depth
regulator bracket and replace detent pin.
Do not adjust tilling depth unless drive safety control
lever is released to the neutral position.
CAUTION
ADJUSTMENTS
depth
regulator
lever

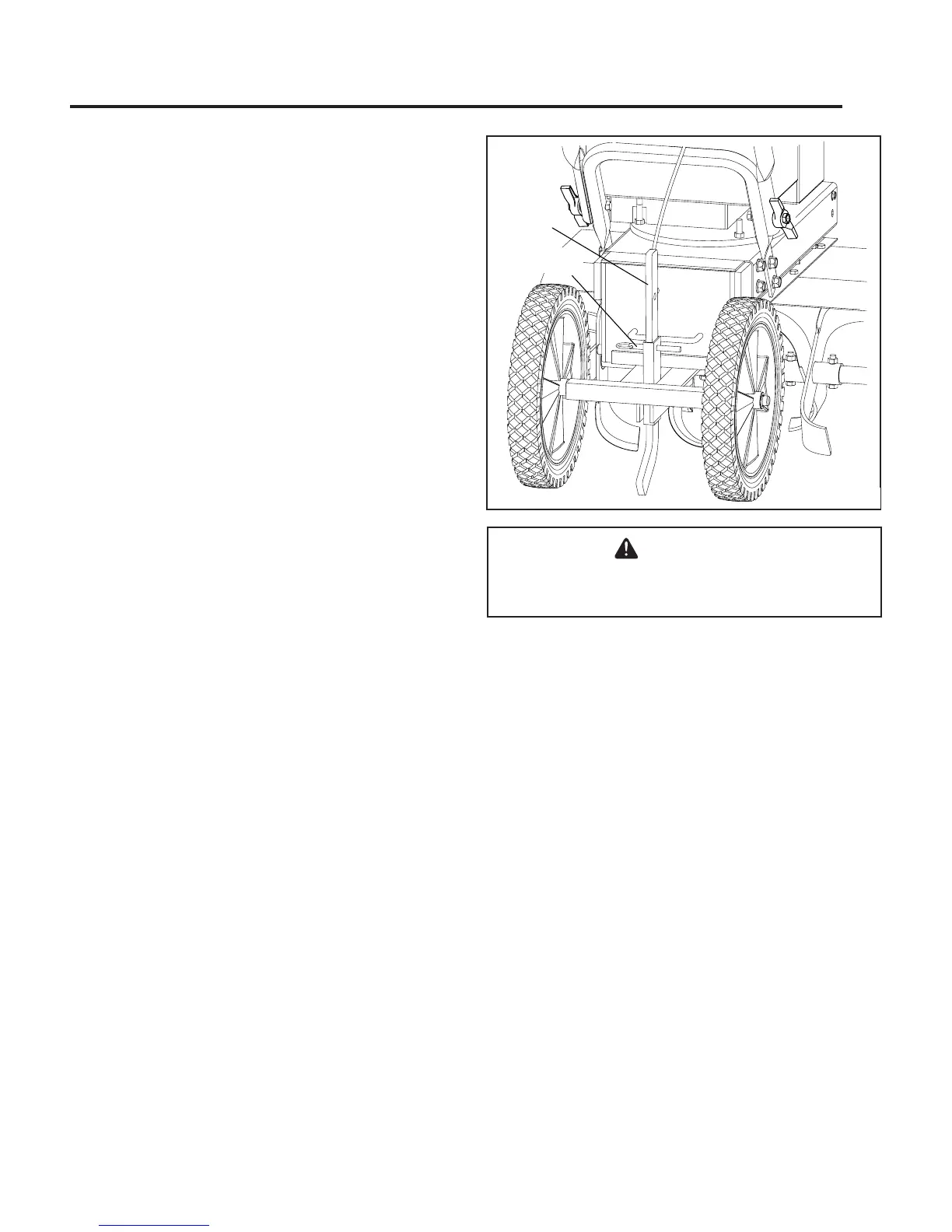

Figure 8
detent pin
