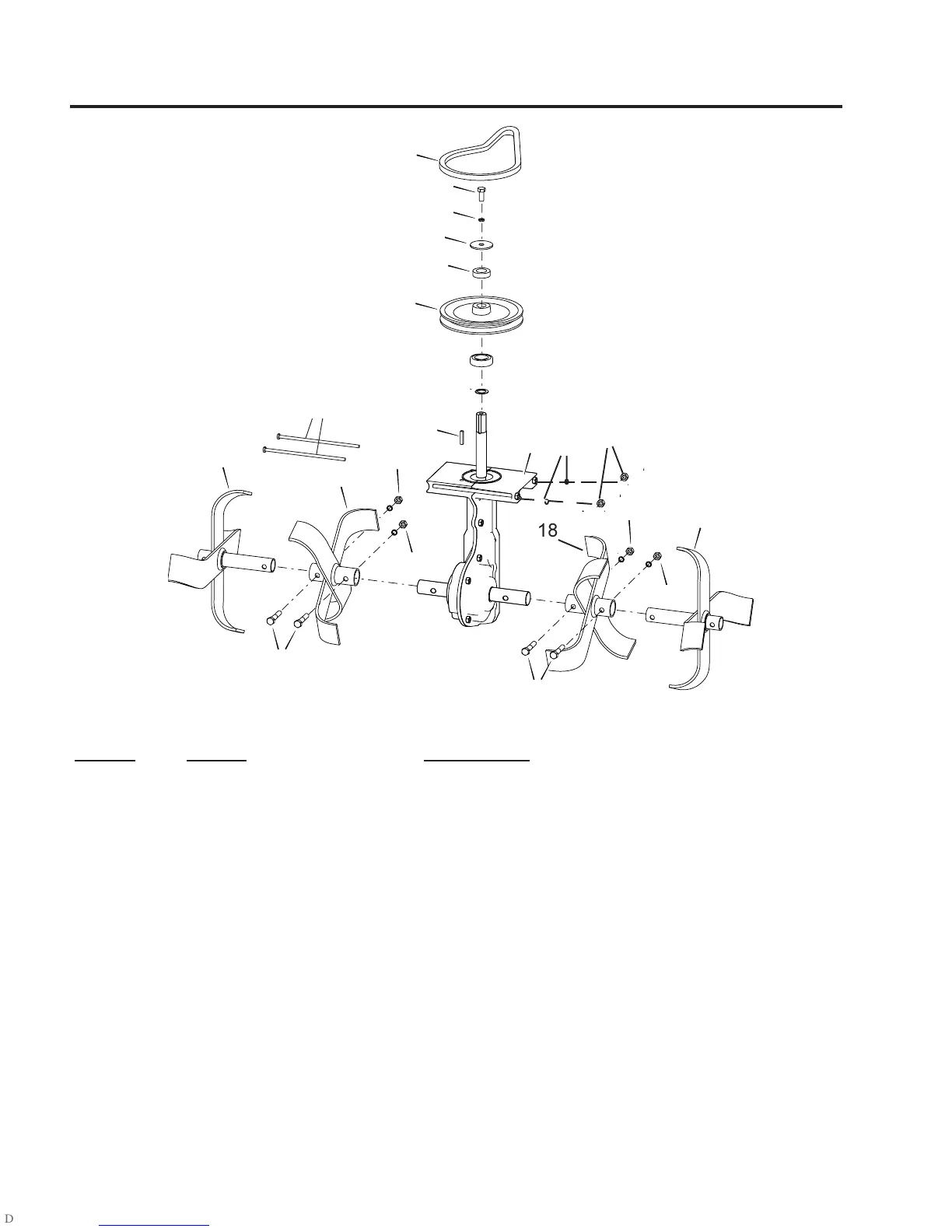

Murray FT6000X92A - Shaft Assembly

23
F-041303L
KEY NO. PART # DESCRIPTION
1 37X138 BELT-Forward
2 001X64 CAPSCREW-Hex Hd, 5/16-24 x 3/4
3 018X15 LOCKWASHER-Spring, 5/16
4 17x146 WASHER, .34 ID X 1.2X 11GA THK
5 AR746 SPACER, 11/16 ID x 3/8 THK
6 AR3179 TRANSMISSION PULLEY
7 ARM1000 TRANSMISSION ASSEMBLY
13 2001022 KEY-Square, 3/16 x 3/4
16 AR3323E701 TINE SET-Outside Right
17 001X75 BOLT-Hex Hd, 5/16-18 x 1-3/4
18 AR3324E701 TINE SET-Inside
19 015X88 NUT-Biway Lock, 5/16-18
20 AR3326E701 TINE SET-Outside Left
51 01X199 BOLT-Hx Hd, 1/4-20 x 7-1/2
61 018X32 LOCKWASHER - Spring .25
62 15X116 NUT - .25-20 HEX NYLOCK B2
SHAFT ASSEMBLY
FT6000X92A
1
2
3
4
5
6
13
16
17
18
19
19
7
17
19
19
20
51
61
62
1
1
1
18
