Murray FT6000X92A - Handlebar Assembly

22
F-041303L
KEY NO. PART # DESCRIPTION
1 AR3262E701 FRONT TINE DRIVE LEVER, WELDED
2 028X23 PUSH CAP, 3/8 Dia.
3 AR3261 FRONT TINE TENSION SPRING LINK
4 15x146 NUT-Nyloc, #10-24
5 AR53530 SPRING-Bee Hive, Forward Cable Adjust
6 15x147 NUT-Jam, 5/16"-24
8 7401038 TOP HANDLE ASSEMBLY
9 AR3108A CABLE ASSEMBLY WITH FERREL
10 094068 KNOB - Wing
11 AR3264E201 BOTTOM HANDLE
13 315288 BOLT 5/16-18 UNC X 1.75 CURVED HD
14 01x137 BOLT-Hex Hd, 3/8-16 x 1.00, Grade 5
15 015X84 NUT-Hex, 3/8-16
1
2
3
4
5
6
6
8
9
10
11
10
13
14
15
14

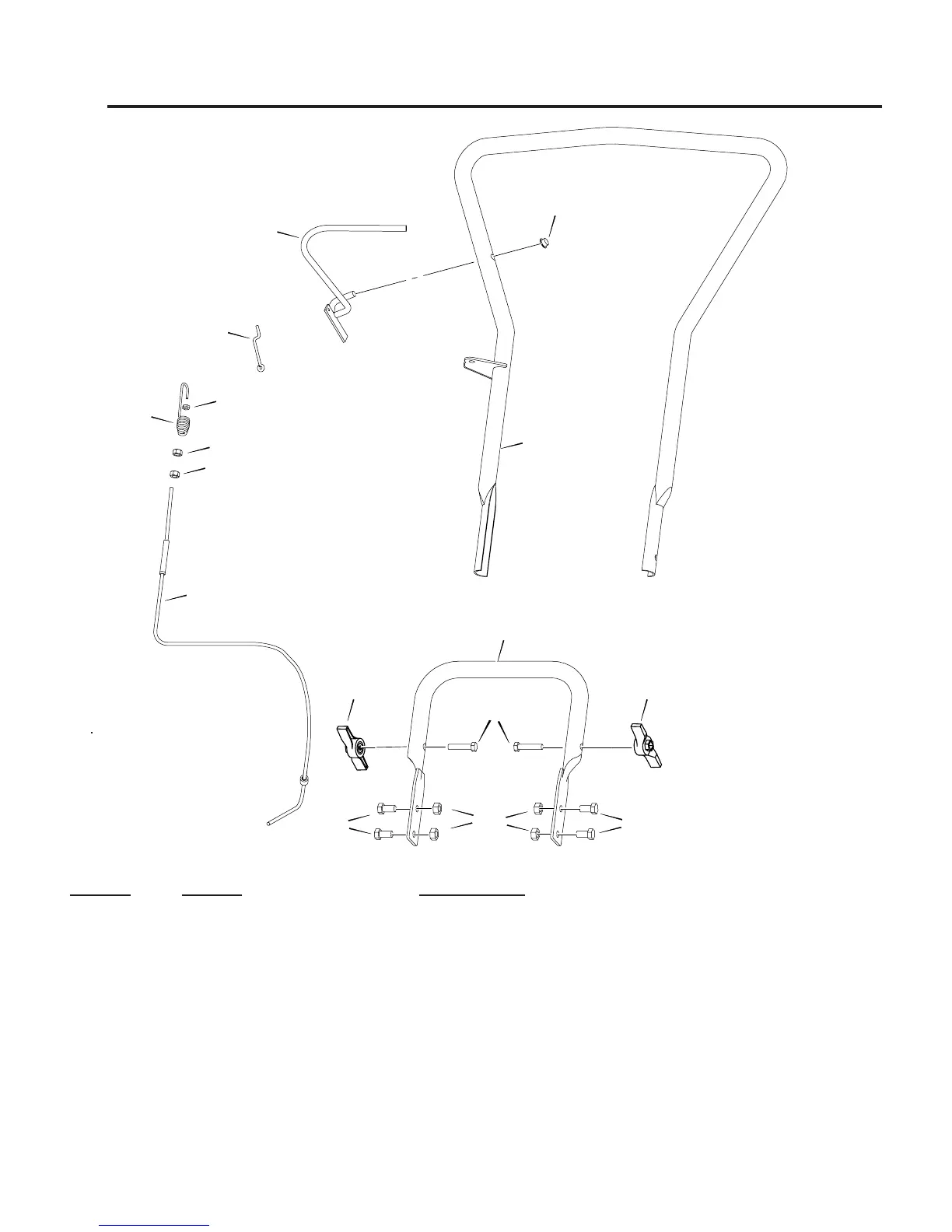

HANDLEBAR ASSEMBLY
FT6000X92A
