Preparation(Continuedt
Q_
Mounting the Grass Bag
1. Tomount the grass bag on the mower, raisethe rear
door (A, Figure 5}. Holdingthe grass bag by the
handle (B), mount the hooks (C} on either end of the
grass bagframe assembly onto the rear door pivot rod
(D}. Lower the grass bag againstthe rear of the mower.
Lower the reardoor.
Important: Make sure both grass bag hooks are mounted on
the pivot rod.
WARNING:Checkthe conditionof the grass
hagfor wear or deterioration, if worn or
damaged, replacethe parts only with
approved factory replacementparts.
Emptying the Grass Bag
WARNING:Before you remove the grass hag,
stop the engine. Before you remove any grass
from the mower housing, disconnect the wire
from the spark plug.
1. Raisethe rear door to a vertical position
2. Hold the handle of the grass bag and liftthe frame
assembly.Continueto lift the frame assembly until the
hooks are no longer mounted on the pivot rod. Remove
the grass bag.
3. Emptythe grass from the grass bag.
4. Tomount the grass bag on the mower, see "Mounting
TheGrass Bag".

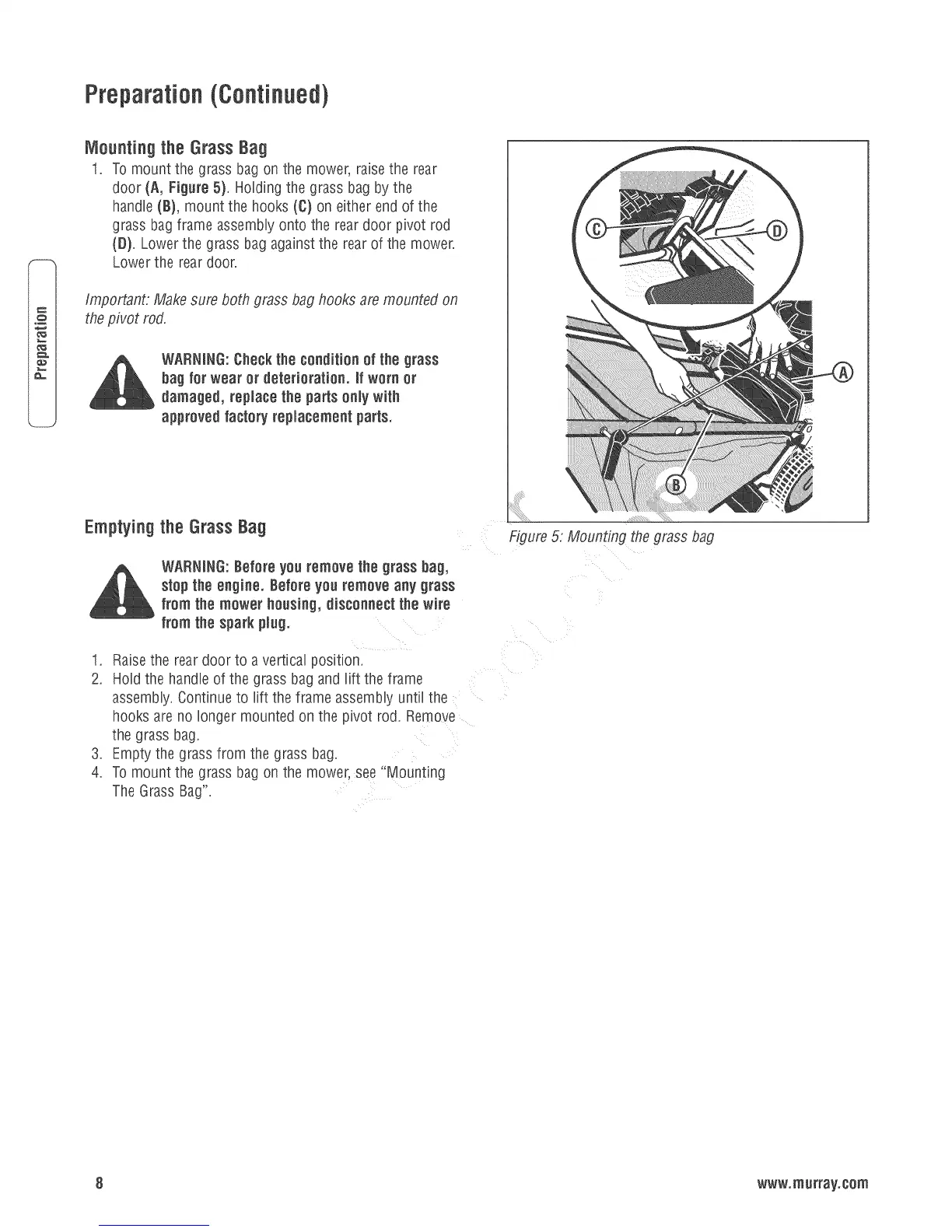

Figure5: Mounting thegrass bag
