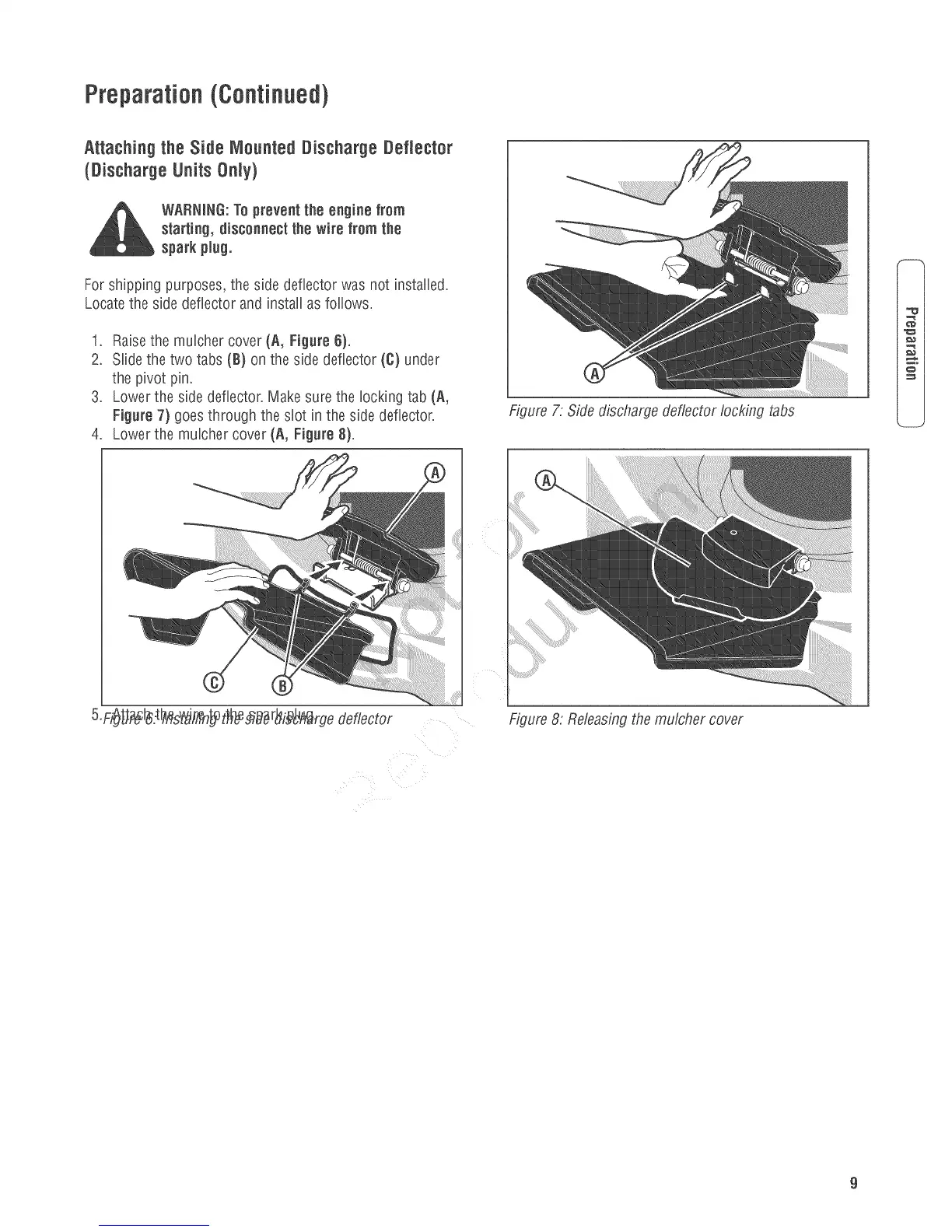

Preparation(Continuedt
Attaching the Side Paounted Discharge Deflector
(Discharge Units Only)
WARNING:Topreventthe enginefrom
starting, disconnect the wire from the
spark plug.
For shipping purposes, the side deflector was not installed.
Locatethe side deflector and install as follows.
1. Raisethe mulcher cover (A, Figure 6).
2. Slide the two tabs (B) on the side deflector (C) under
the pivot pin.
3. Lower the side deflector. Make surethe locking tab (A,
Figure7) goesthrough the slot in the side deflector.
4. Lower the mulcher cover (A, Figure 8).
Figure7: Side discharge deflector locking tabs
w,
©
5.Fi_:t_s_fl?n_t_s_8br_i_rge deflector
Figure8: Releasingthe mulcher cover
