• Only applicable to models with Side Discharge function
(see Section 2. Technical specifications).

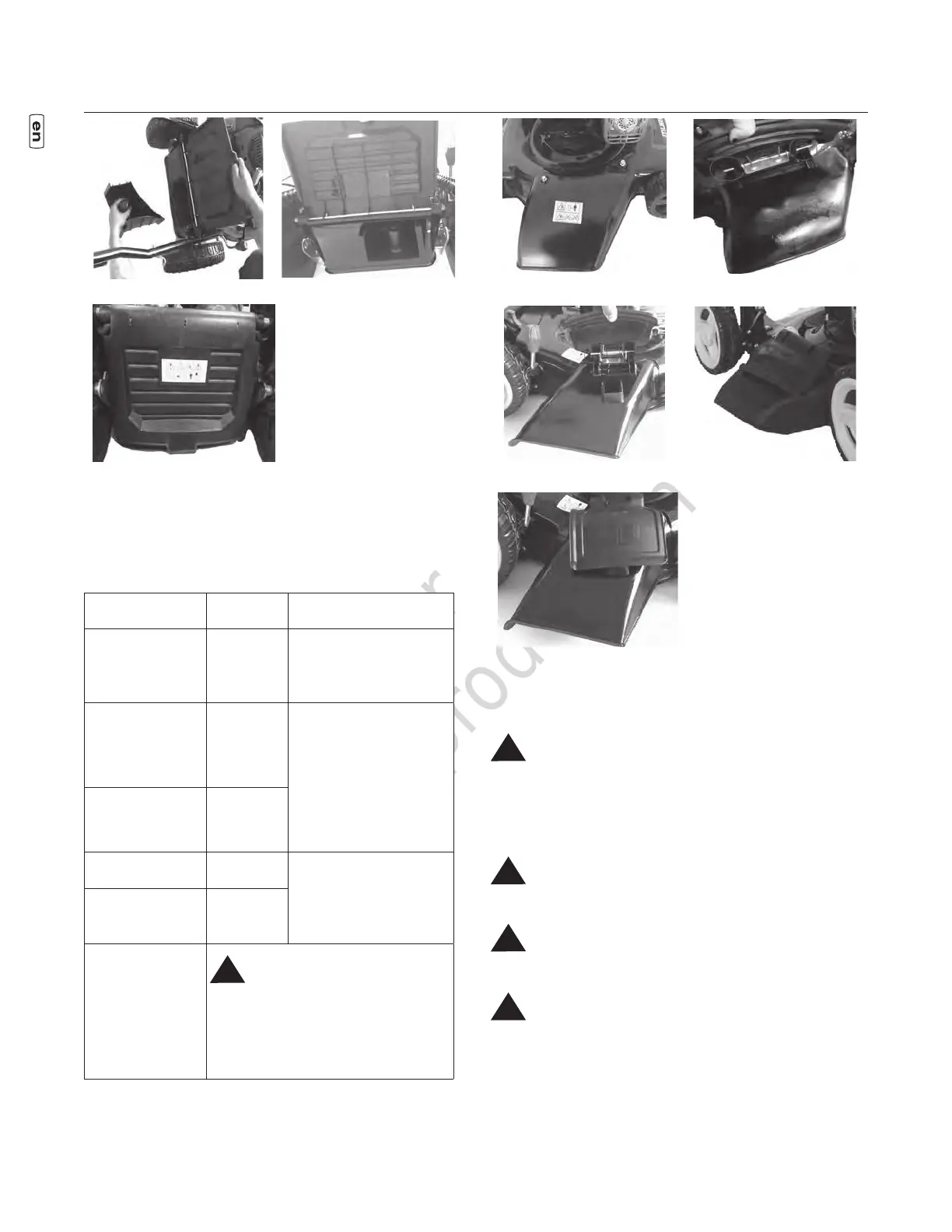

Please follow the following table to install the side
Fig. 18 Fig.19
Fig. 20
Models
Reference
How to install the side
discharge deflector
MP450D20 Fig.21
Fix side discharge deflec-
tor on deck by using two
sets of the bolt and screw.
MP625MD21H Fig.22
No tools required;
1. Lift the side discharge
cover with one hand and
put hook features of side
discharge deflector on
shaft of side discharge
cover.
MP550RMD21 /
MP675RMD21H /
MX675RMD22H
Fig.23
MP625MD21H Fig.24
2. Release side discharge
cover to secure side
discharge deflector in
position.
MP550RMD21 /
MP675RMD21H /
MX675RMD22H
Fig.25
MP550RMD21 /
MP675RMD21H /
MX675RMD22H
!
NOTE! To operate rear collect
capable models in side dis-
charge mode (where applicable), the
mulch plug must be installed as
described above and shown in Fig.18,
Fig.19 and Fig.20.
Fig. 21 Fig.22
Fig. 23 Fig.24
Fig. 25
6.5 Engine Oil and Fuel
6.5.1 How to Check and Fill Oil
!
CAUTION!
To prevent damage on engine, the engine is
the oil which complies with the section Oil Recommendations
in operator’s manual of the engine. To extend the life of your
hours of use.
!
WARNING! Before checking the engine oil level or
adding oil, stop engine and place the mower on a level
surface.
!
NOTE! It is essential to comply with the section How To
Check/Add Oil in the operator’s manual for the engine
to check and add oil correctly.
!
NOTE! Running the engine with a low oil level will
cause engine damage. Using non-detergent oil can
shorten the engine’s service life and using 2-stroke oil will
damage the engine.
