9
Fig. 8 Fig. 9
Fig. 10

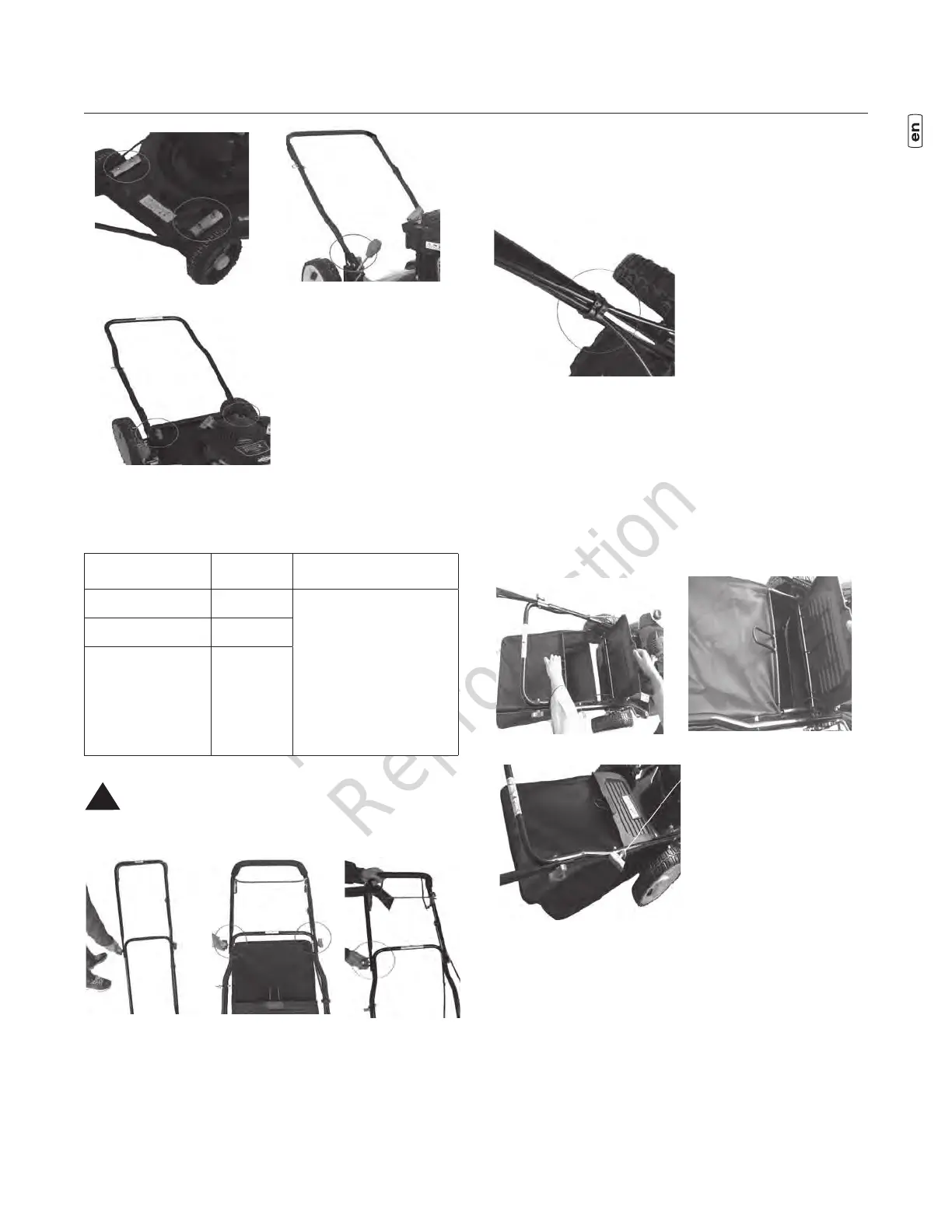

6.1.2 How to Assemble the Upper Handle.
Assembly of the upper handle on to the lower handle is de-
!
NOTE! Make sure the starter rope guide is on the right
handle, when you stand behind the lawnmower.
Models
Reference
How to assembly the
lower handle
MP450D20 Fig.11
Install the upper handle
and fix it to lower handle
by using the star knobs
and the square neck bolts
on each side.
MP625MD21H Fig.12
MP550RM21/
MP675RM21H /
MP550RMD21/
MP675RMD21H/
MX675RMD22H
Fig.13
Fig.11 Fig.12 Fig.13
6.1.3 How to Fix the Cables to the Handles
Fix the cables on the handles with the cable clips provided
(see Fig.14):
• Push models: One cable only;
• Self-propelled models: Two cables.
6.2 Attaching the Grass Bag
• Applicable to models with Grass Bag only (see Section
1. Lift rear door with one hand and position the hooks of the
grass bag onto the two plastic sleeves which are installed on
rear door shaft(see Fig.15 and Fig.16).
2. Release rear door to secure the grass bag in position (see
Fig.17).
6.3 Installing Mulch Plug
• Only applicable to models with both rear collect and
-
tions).
1.
Lift the rear door and remove the grass bag, if present.
2. Push the plastic mulch plug into the discharge chute until it
is locked in place (see Fig.18 and Fig.19).
3. Release the rear door to cover the mulch plug (see Fig.20).
Fig. 14
Fig. 15 Fig.16
Fig. 17
